4BAR Tri USB

4BAR Tri USB is a complete wash lighting solution fitted with high-intensity tri-color (RGB) LEDs that can be controlled wirelessly via the included footswitch or the optional IRC-6 controller (sold separately). It also features D-Fi USB compatibility for wireless master/slave or DMX control. A convenient tripod stand and carrying bag are included for quick and easy setup and tear down.

Highlights

  • Complete wash lighting solution fitted with high-intensity, tri-color (RGB) LEDs

  • Out of the box wireless control with included footswitch or optional IRC-6 controller

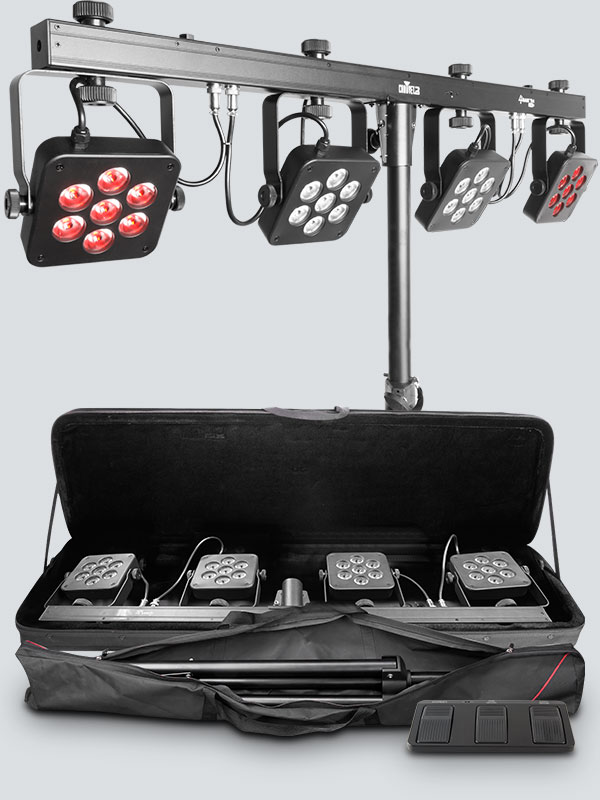

  • Easily set up and tear down in minutes with the included tripod stand and carrying bags

  • Create large, coordinated light shows with other 4BAR™ fixtures in Master/Slave mode

  • D-Fi™ USB compatibility for wireless Master/Slave or DMX control

  • Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR™ Tri USB

  • Achieve total room or stage coverage with 4 individually adjustable heads

  • Nearly eliminate multi-colored shadows with high-power, tri-color (RGB) LEDs

  • Increase mounting options by safely mounting to truss using built-in bolts

  • Save time running cables and extension cords by power linking multiple units

  • Sound-activated programs dance to the beat of the music

Specifications

  • DMX Channels: 3 or 15
  • DMX Connectors: 3-pin XLR
  • Light Source: 28 LEDs (tri-color RGB) 3 W (1 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 25 Hz
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 18°
  • Field Angle: 31°
  • Fits Tripod Size: 1.34 to 1.57 in (35 to 40 mm)
  • Illuminance: 2,330 lux @ 2 m (per pod)
  • Power Linking: 8 units @ 120 V; 14 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 69 W, 1 A @ 120 V, 60 Hz
    66 W, 0.5 A @ 230 V, 50 Hz
  • Weight: 20.6 lb (10.8 kg)
    (Controller): 0.8 lb (1.8 kg)
  • Size: 41.3 x 2 x 10.6 in (1,050 x 50 x 270 mm)
    (Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
  • Approvals: CE
  • Optional Controllers: IRC-6, D-Fi™ USB
  • Stand Height: 7.4 ft (2.25 m)

What's Included

  • 4BAR Tri USB
  • Power cord
  • 4BAR and Stand carry bag
  • Tripod
  • Wireless Footswitch
  • Quick Reference Guide / Warranty card

Downloads
