Discontinued Since 2016

4BAR

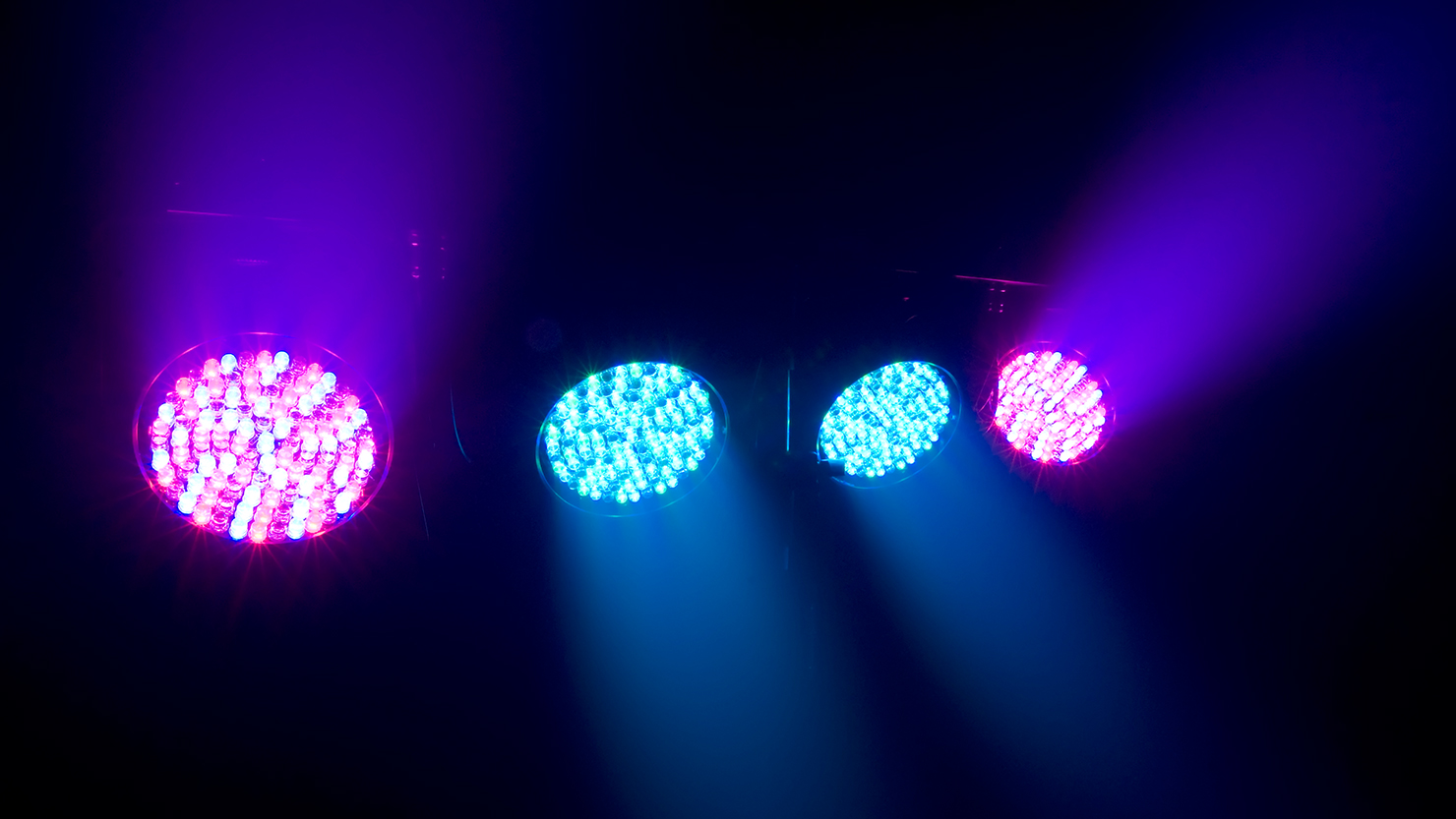

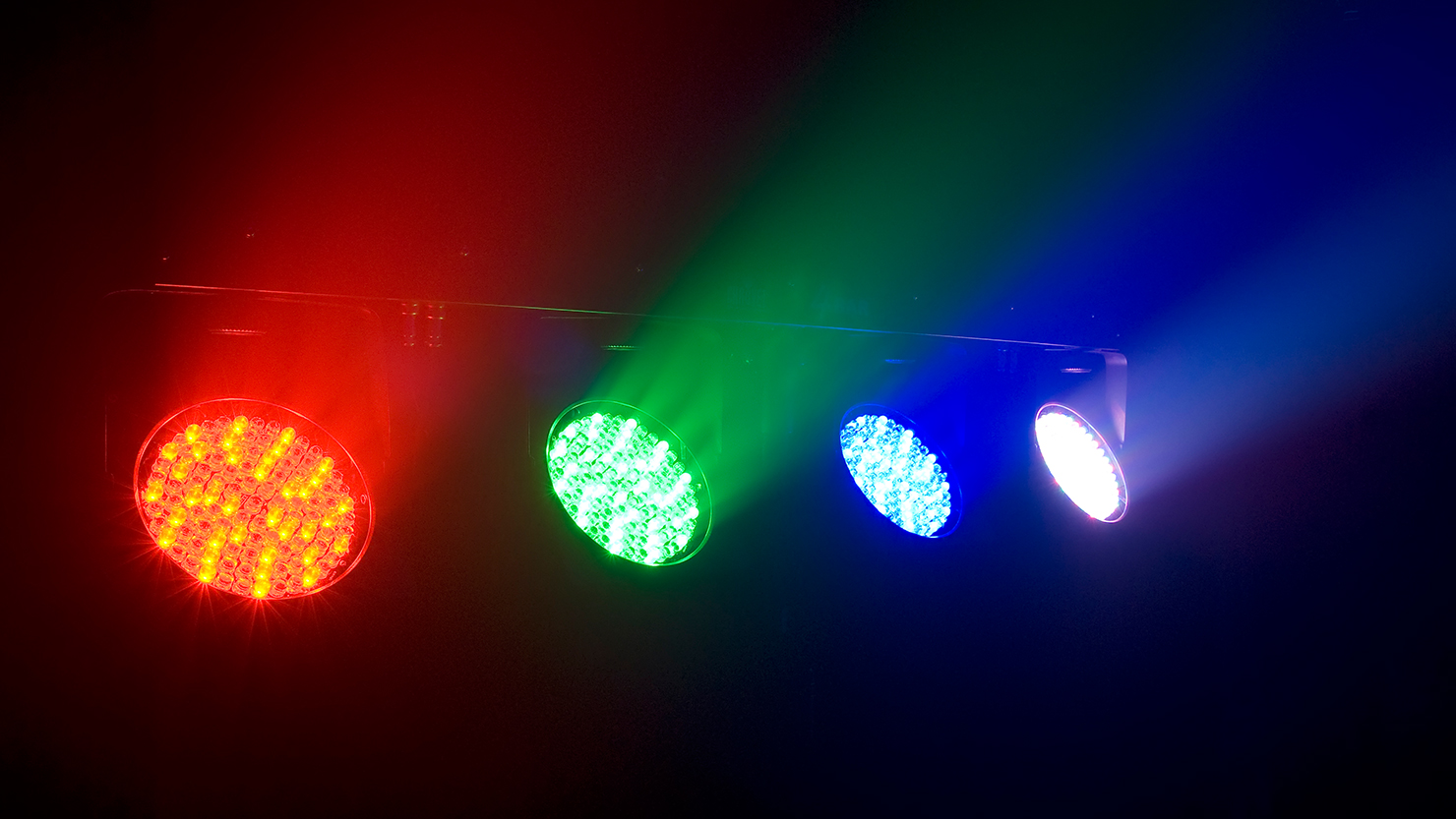

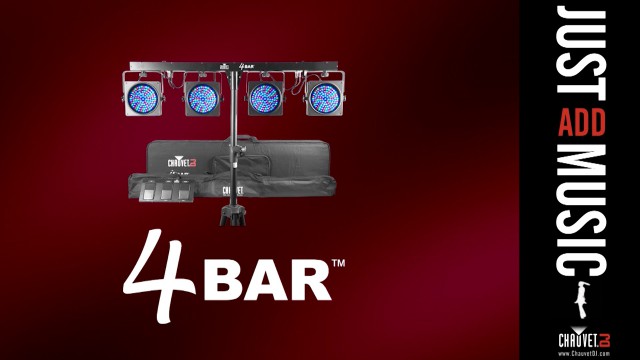

The 4BAR is a pack-and-go must have for DJs, bands and other performers who want a complete LED wash light system. This 15-channel DMX system includes a three-pedal foot switch, adjustable tripod, packing bag and transport case. Each of the four low-profile lights can be positioned independently. With 108 red, green and blue LEDs per light, the 4BAR offers built-in automated and sound activated programs accessible with or without the foot switch.

Highlights

  • Complete wash lighting solution designed for mobile entertainers

  • Achieve total room or stage coverage with 4 individually adjustable heads

  • Easily set-up and tear down in minutes using the included tripod, footswitch and carry bags

  • Easily set-up and tear down in minutes using the included tripod, footswitch and carry bags

  • Low-profile lights are 1.6 in deep

  • Create large, coordinated light shows with other 4BAR fixtures in master/slave mode

  • Create large, coordinated light shows with other 4BAR™ fixtures in master/slave mode

  • Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs

Specifications

  • DMX Channels: 3 or 15
  • DMX Connectors: 3-pin XLR
  • Light Source: 432 LEDs (144 red, 144 green, 144 blue) 0.25 W (20 mA), 100,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle: 21°
  • Illuminance: 725 lux @ 2 m (per pod)
  • Input Voltage: 725 lux @ 2 m (per pod)
  • Power and Current: 48 W, 0.4 A @ 120 V, 60 Hz
    37 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 29 lb (13.2 kg)
  • Size: 48 x 2.2 x 11.2 in (1,219 x 55 x 285 mm)
    (Stand Height): 4.7 to 7.6 ft; (1.4 to 2.3) m
    (Fits Tripod Size): 0.9 to 1.4 in (23 to 35) mm
  • Approvals: CE
  • Field Angle: 33°

What's Included

  • 4BAR
  • Power cord
  • 4BAR carry bag
  • 4BAR carry bag
  • Footswitch
