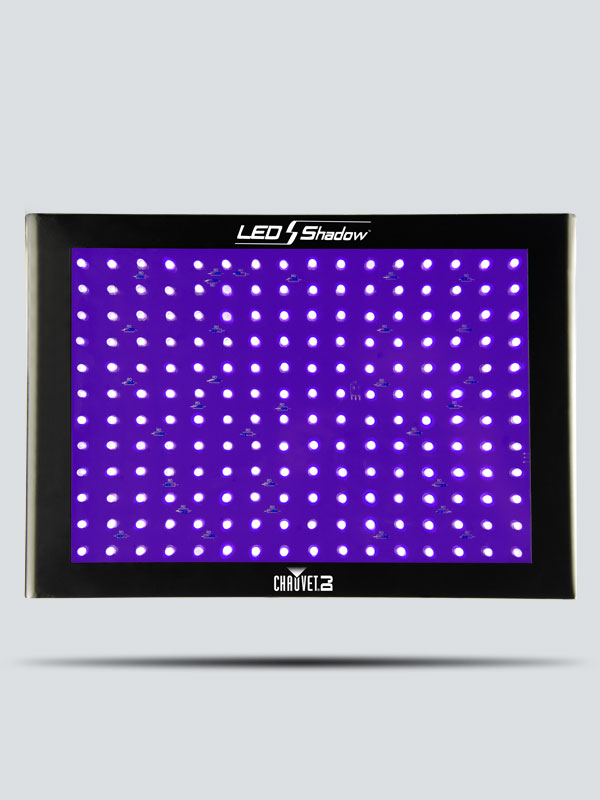

LED Shadow

The LED Shadow is a blacklight panel wash that delivers stunning blacklight effects. Built-in auto programs allow the LEDs to flash and strobe in patterns.

LED Shadow blacklight wash panels flashed and strobed as the band Coldplay played songs from their recent release, “Mylo Xyloto.”

Highlights

  • LED panel delivers stunning black light effects

  • Increase design options with blackout, static, dimmer and strobe effects

  • Easily adjust flash rate, dimmer and static effects in Standalone mode

  • Eye-catching automated programs via Master/Slave or DMX mode

  • Sound-activated programs dance to the beat of the music

  • Control wirelessly from an optional IRC-6 remote

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels: 3
  • DMX Connectors: 3-pin XLR
  • Light Source: 192 LEDs (UV) 0.25 W (20 mA), 100,000 hours life expectancy
  • Power Linking: 43 units @ 120 V; 74 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 12 W, 0.1 A @ 120 V, 60 Hz
    11 W, 0.1 A @ 230 V, 50 Hz
  • Weight: 4.9 lb (2.2 kg)
  • Dimensions: 14 x 9.8 x 6.5 in (356 x 248 x 165 mm)
  • Approvals: CE
  • Optional Controllers: IRC-6
  • Wavelength: 405 nm

What's Included

  • LED Shadow
  • Power cord
  • Hanging Bracket with Mounting Hardware
  • Warranty Card
