MotionDrape LED

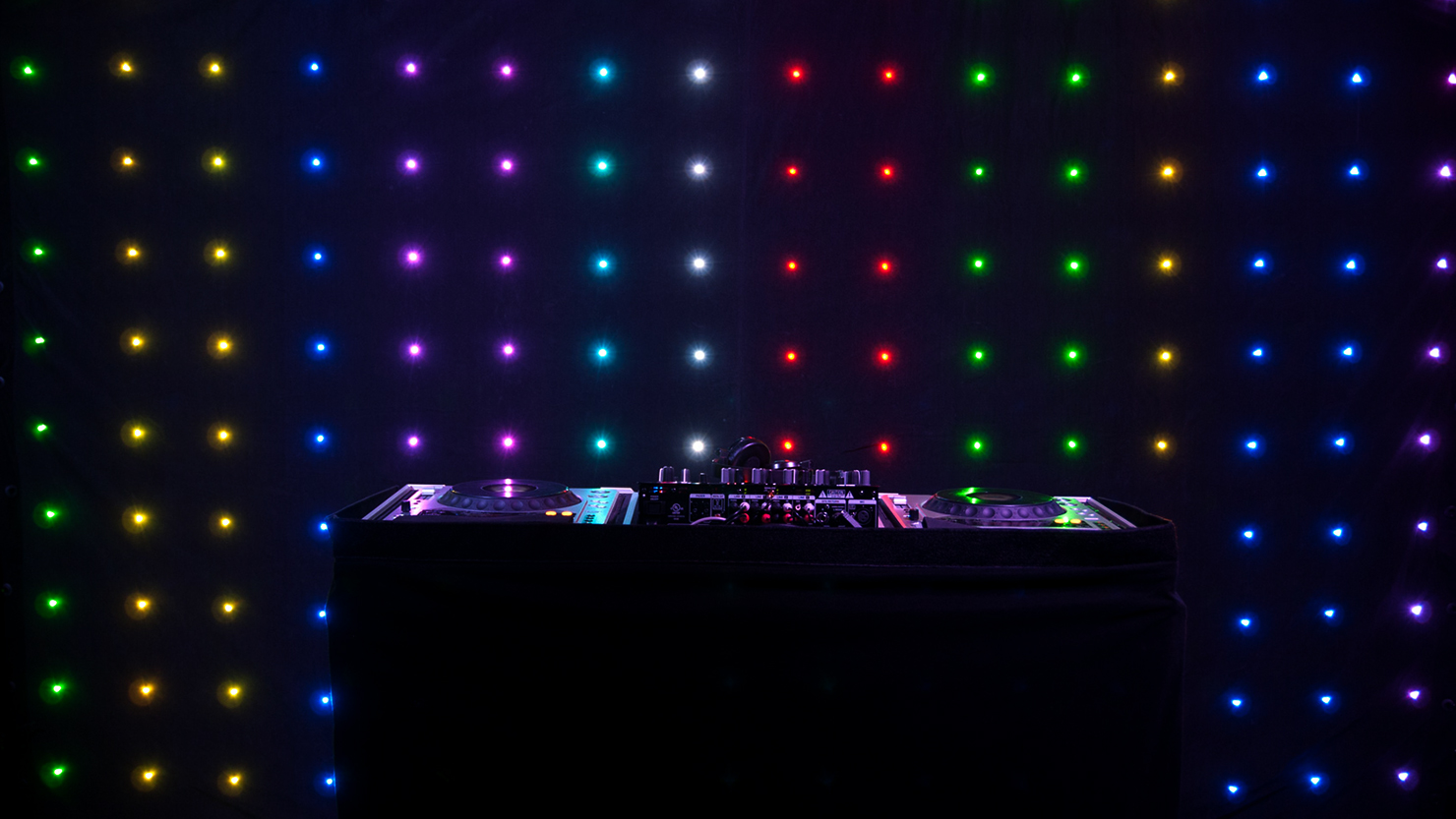

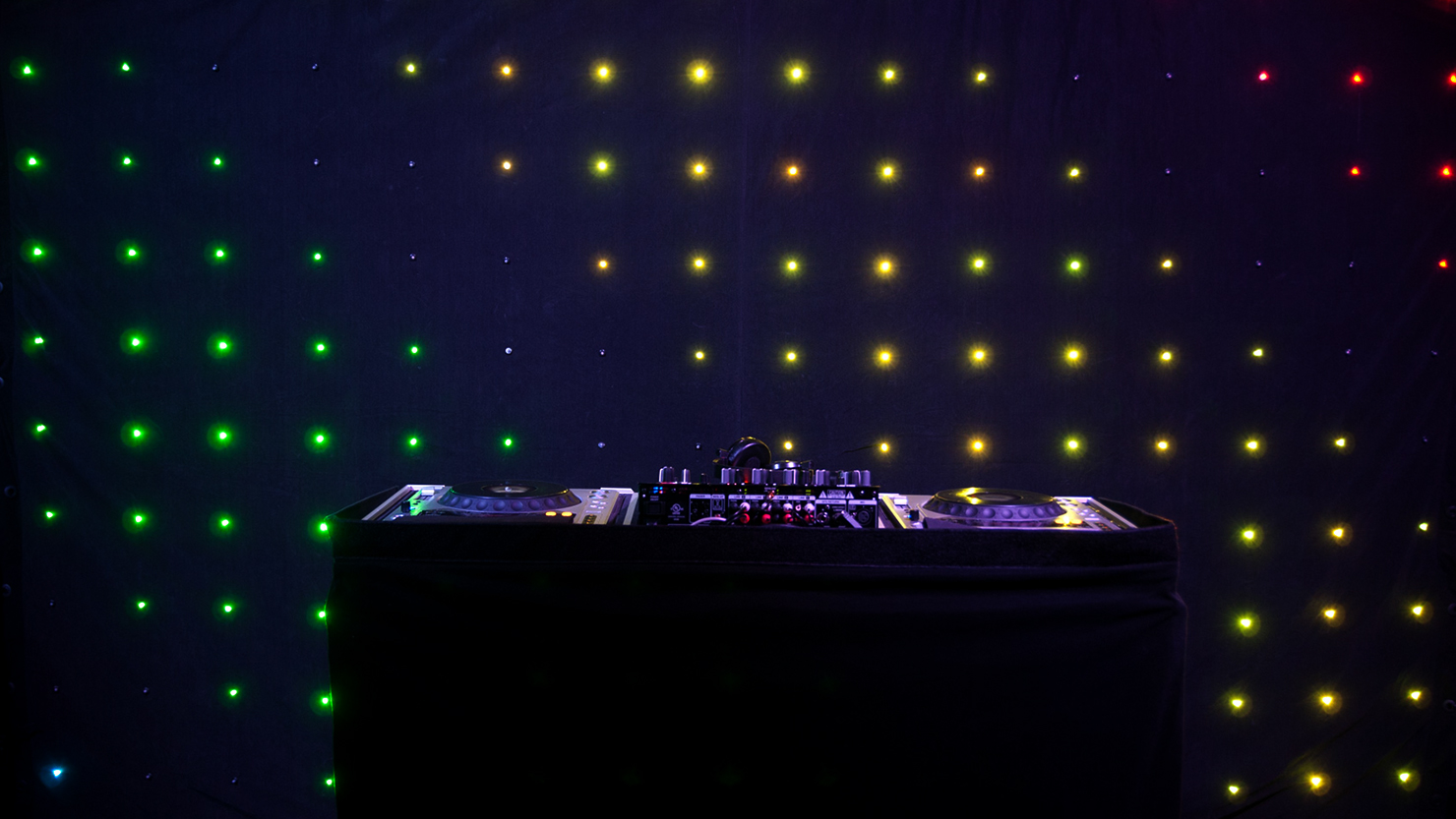

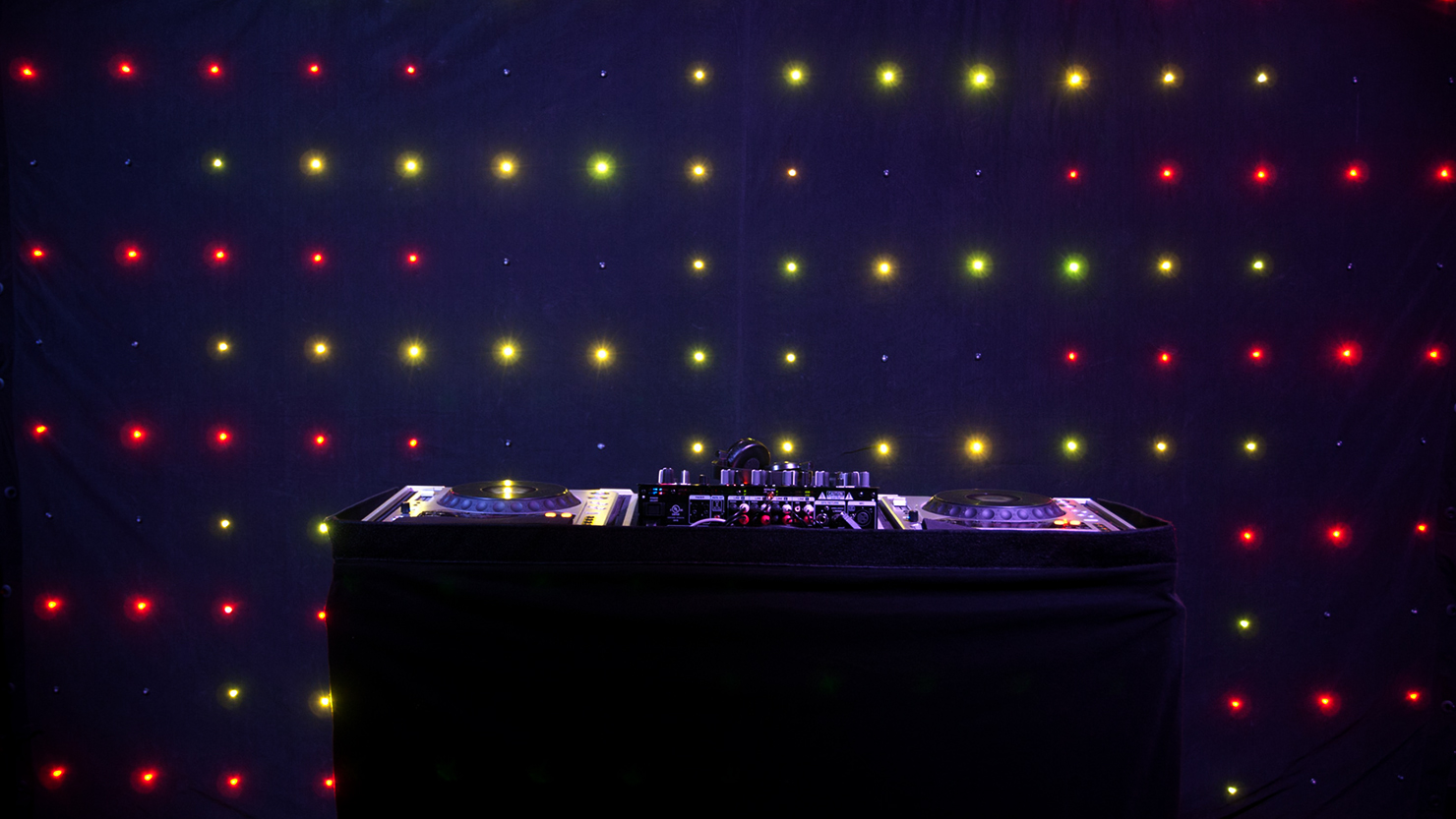

The MotionDrape LED is a backdrop for any mobile performer. 176 tri-color SMD LEDs matrixed across the 6.5ft-by-9.8ft backdrop can be controlled via the included controller or via DMX. This impressive display has 30 animated effects that range from color fades to a graphic equalizer effect.

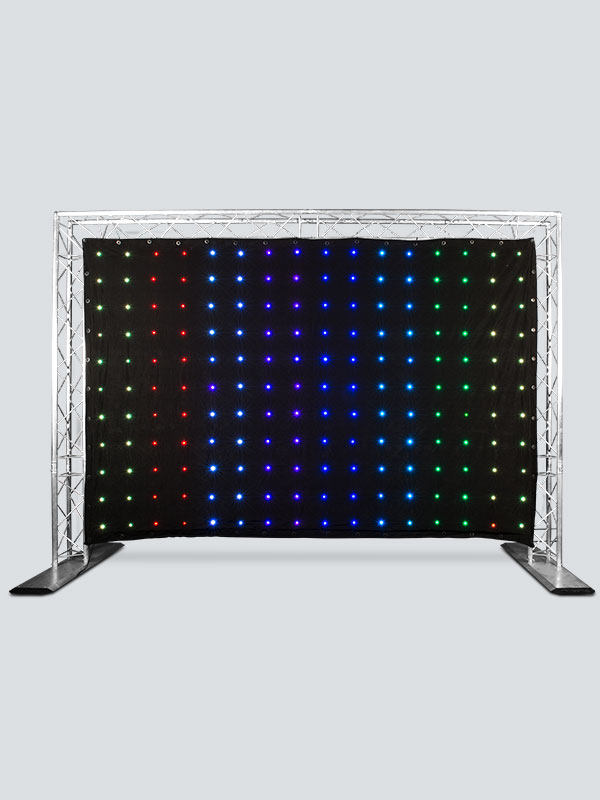

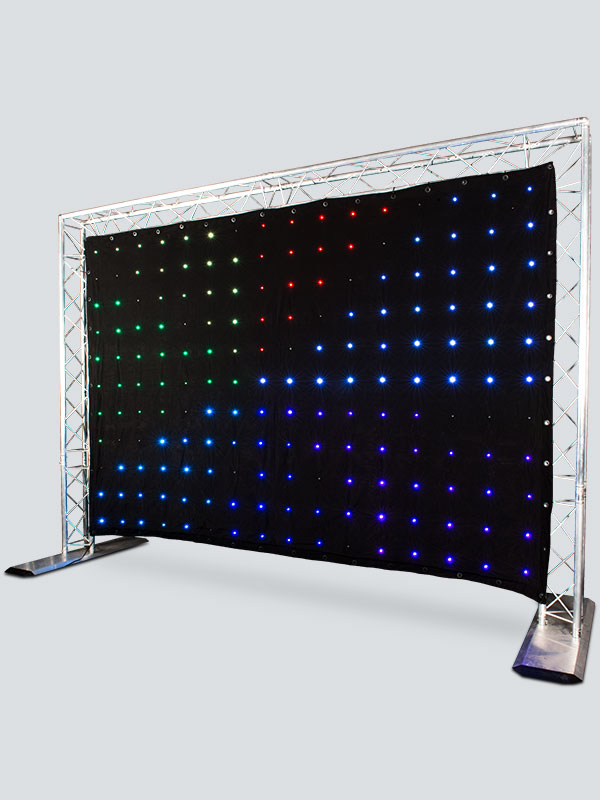

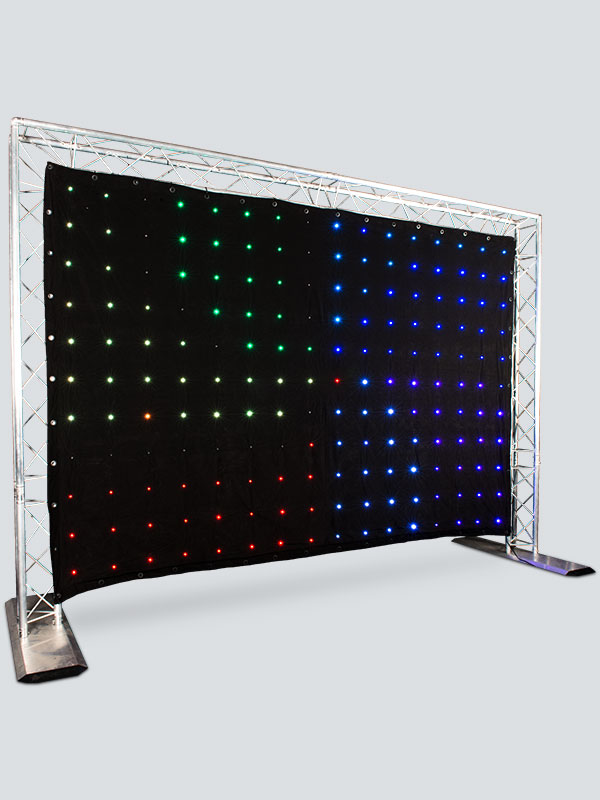

For added convenience the MotionDrape LED has grommets around all sides to make hanging a breeze and is perfectly sized to fit on our CH-31 T-Bar and TRUSST Goal Post Kit portable trussing systems.

Highlights

  • 6.6 x 9.8 ft (2 X 3 m) LED drape with motion graphics perfect for mobile DJs, bands, clubs and stage backdrops

  • Creates 30 animated patterns using 176 high-output, tri-color SMD LEDs

  • Includes the popular multicolored rain effect and simulated equalizer pattern

  • Trigger effects in DMX or sound-activated mode

  • Customize looks with RGB color-mixing capability and 8 channels of DMX control

  • Achieve full control over output with master dimmer capability

  • Easily mount to truss and various stands using built-in grommets

  • Manufactured with certified fire retardant material (NFPA)

  • Simplify storage and transportation with the included carry bag

Specifications

  • DMX Channels: 8

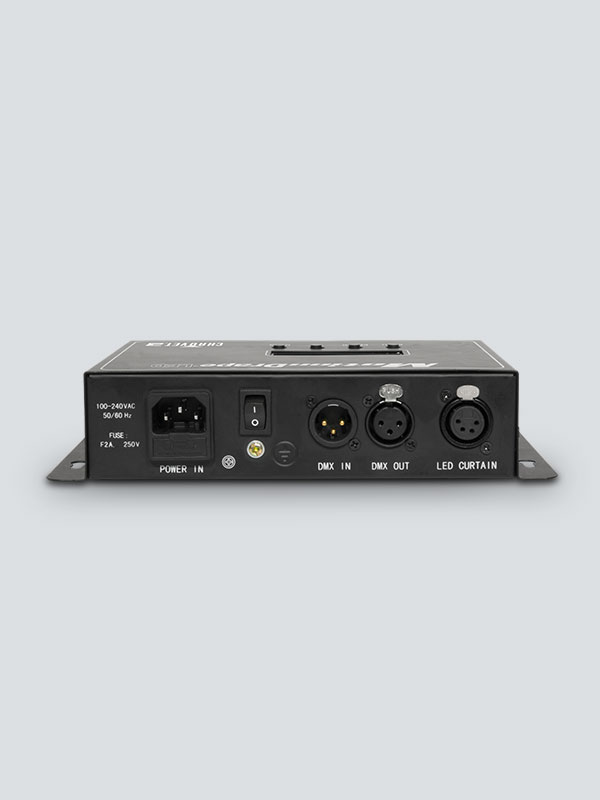

  • DMX Connectors: 3-pin XLR
  • Light Source: 176 LEDs (tri-color RGB) SMD (20 mA), 50,000 hours life expectancy
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 51 W, 0.4 A @ 120 V, 60 Hz
    54 W, 0.2 A @ 230 V, 50 Hz
  • Weight: (Controller): 1.8 lb (0.8 kg)
    (Drape): 9.8 lb (4.4 kg)
  • Dimensions: (Controller): 5.3 x 9.6 x 2 in (135 x 243 x 50 mm)
    (Drape): 6.6 x 9.8 ft (2 x 3 m)
  • Approvals: CE, NFPA

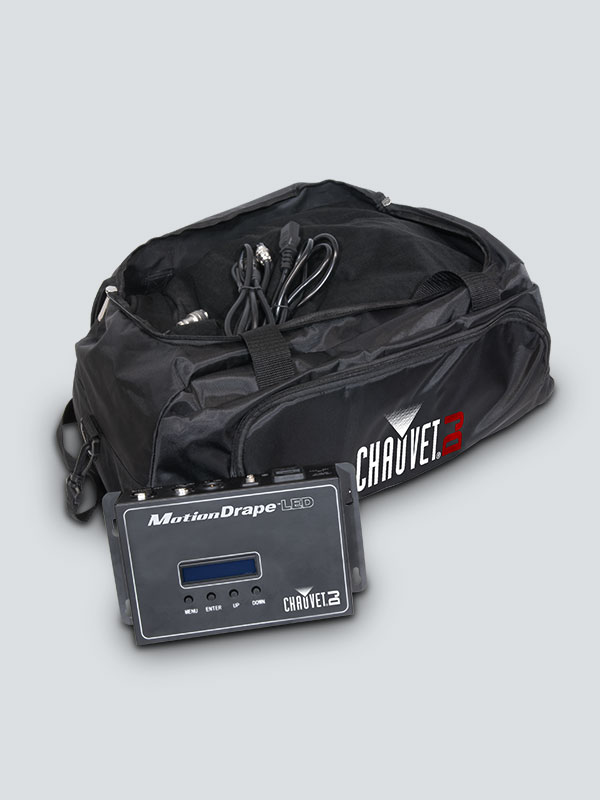

What's Included

  • MotionDrape LED

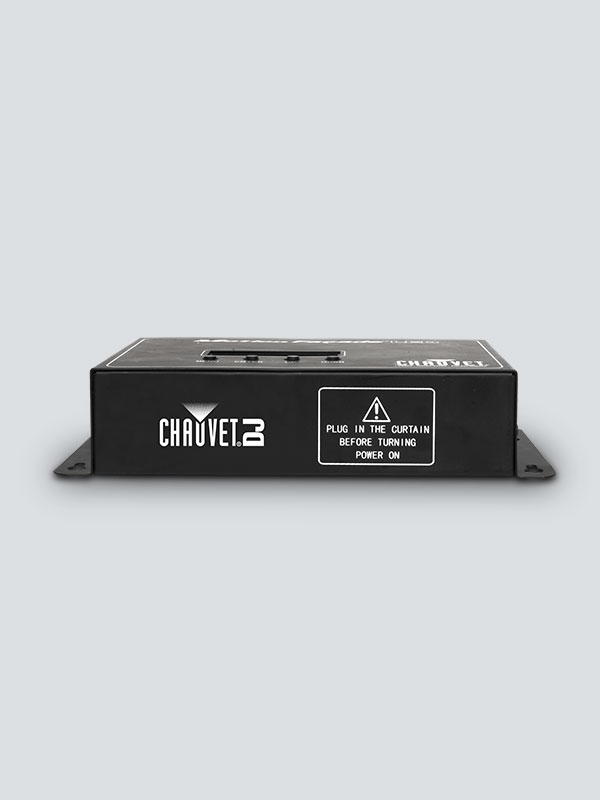

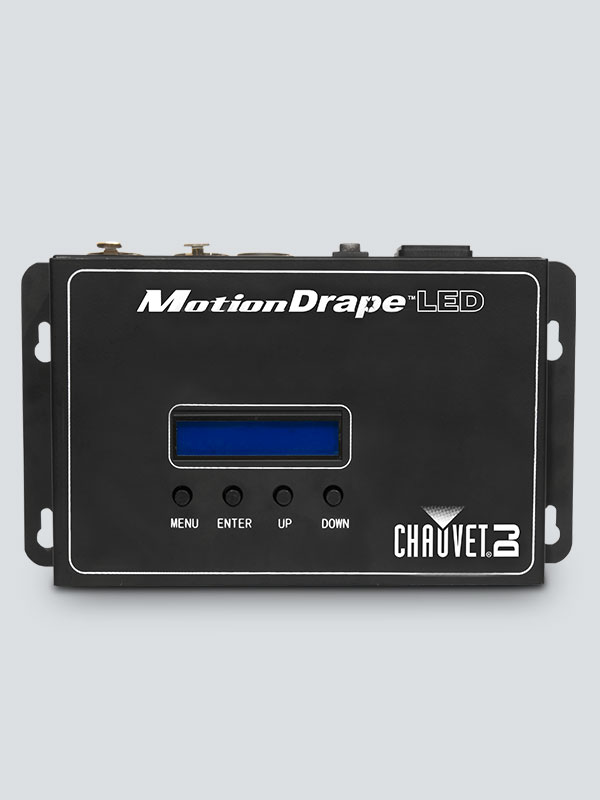

  • Controller
  • Carry bag
  • Signal cable
  • Replacement LEDs
  • Warranty card
