Discontinued Since 2016

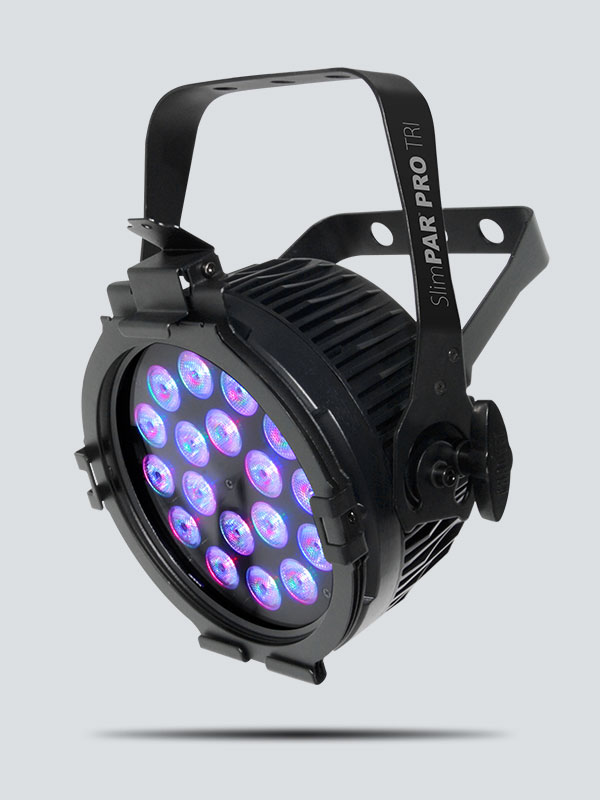

SlimPAR Pro Tri

It utilizes the latest in tri-color LEDs delivering a uniform output. Eighteen tri-color (RGB) LEDs power the fixture and the color is mixed before the lens which limits any undesirable effects of multi-colored shadows.

Eliminating multi-colored shadows also allows the unit to serve admirably as front light.

Highlights

  • LED Par designed for any application in need of a low-profile, tri-color LED wash light

  • Nearly eliminate multicolored shadows with high-power, tri-color LEDs

  • Emits a smooth, even output perfect for front light applications

  • Ideal for quiet applications due to silent operation and no moving parts

  • Flicker-free operation suitable for use on-camera use

  • Achieve super-smooth LED fading with built-in dimming curves that simulate existing lighting

  • Ensure a secure power cord with the locking IEC power input (US only)

  • Trigger eye-catching effects with built-in, automated programs via master/slave or DMX mode

  • Increase stand-alone versatility with multiple user-configurable settings

  • Save time running cables and extension cords by power linking multiple units

  • Fits best in the CHS-30 VIP Gear Bag

Specifications

  • DMX Channels: 3, 4, or 9
  • DMX Connectors: 3-pin XLR
  • Light Source: 18 LEDs (tri-color RGB) 3 W (1,050 mA), 50,000 hours life expectancy
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 21°
  • Field Angle: 42°
  • Illuminance: 1,980 lux @ 2 m
  • Power Linking: 9 units @ 120 V; 16 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 97 W, 0.8 A @ 120 V, 60 Hz
    102 W, 0.5 A @ 230 V, 50 Hz
  • Weight: 6.4 lb (2.9 kg)
  • Size: 3.7 x 10.1 x 11.4 in (94 x 256 x 290 mm)
  • Approvals: CE, MET

What's Included

  • SlimPAR Pro Tri
  • External power cord
  • Gel frame holder
  • Hanging bracket with mounting hardware
  • Quick Reference Guide
  • Warranty card

Downloads
