Discontinued Since 2015

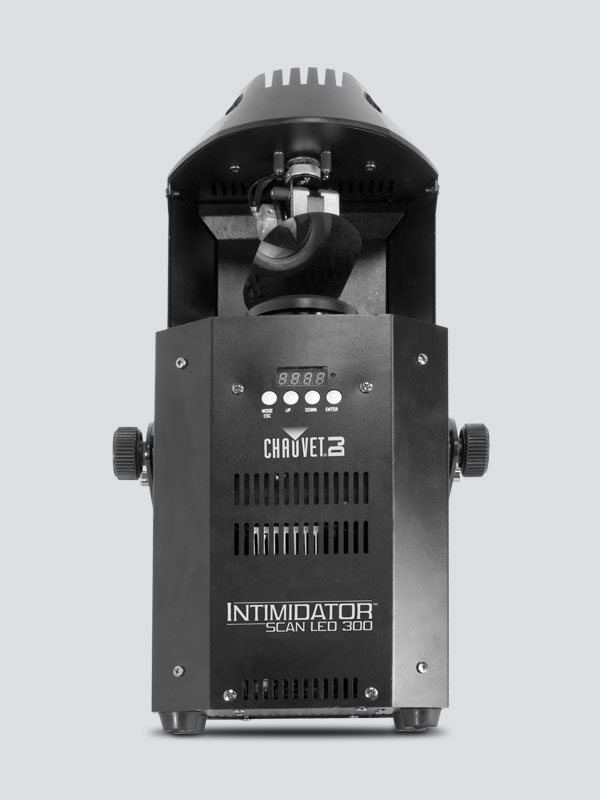

Intimidator Scan LED 300

It’s a bright, compact LED scanner with a crisp, 3-sided prism which duplicates the beam for great effects and a larger coverage area. Its high-frequency LED dimming allows for flicker-free video operation and it’s packed with tons of features to enhance any show. It features a motorized focus for crisp gobos, sound-activated programs, and built-in automated programs for a synchronized show in master/slave mode. Plus, you can power link up to 4 units and save some time running cables and extension cords.

VIP Rewards Value: 560 Points



Highlights

  • Bright, and compact LED scanner packed with features to enhance any show

  • Increase design flexibility and effects with interchangeable, rotating gobos plus separate, saturated colors

  • Minimize programming time with built-in movement macros and move-in-black features

  • Project crisp gobo from nearly any distance with the motorized focus

  • Increase effects with electronic dimming and strobe features

  • Split the beam and cover larger areas with the crisp, 3-facet prism

  • Continuous shows with individual reset of pan/tilt, color, gobo, prism

  • Achieve flicker-free video operation with high-frequency LED dimming

  • Save time running cables and extension cords by power linking multiple units (US version only)

  • Sound-activated programs dance to the beat of the music

  • Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs

Specifications

  • DMX Channels:8 or 11
  • DMX Connectors:3-pin XLR
  • Pan and Tilt:180°/90°
  • Colors:8 + white, split colors, continuous scroll at variable speeds
  • Gobos:7 + open (5 metal + 2 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
  • Light Source:1 LED (white) 60 W (14.9 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • Beam Angle:21°
  • Illuminance:2,850 lux @ 2 m
  • Power Linking:3 units @ 120 V; 7 units @ 230 V
  • Input Voltage:120/230 VAC, 50/60 Hz (switchable)
  • Power and Current:236 W, 2 A @ 120 V, 60 Hz
    237 W, 1 A @ 230 V, 50 Hz
  • Gobo Size:23.8 mm outside, 20.9 mm image, 2 mm max thickness
  • Weight:14.7 lb (6.7 kg)
  • Dimensions:11 x 10 x 18.9 in (279 x 254 x 478 mm)
  • Approvals:CE, MET

What's Included

  • Intimidator Scan LED 300
