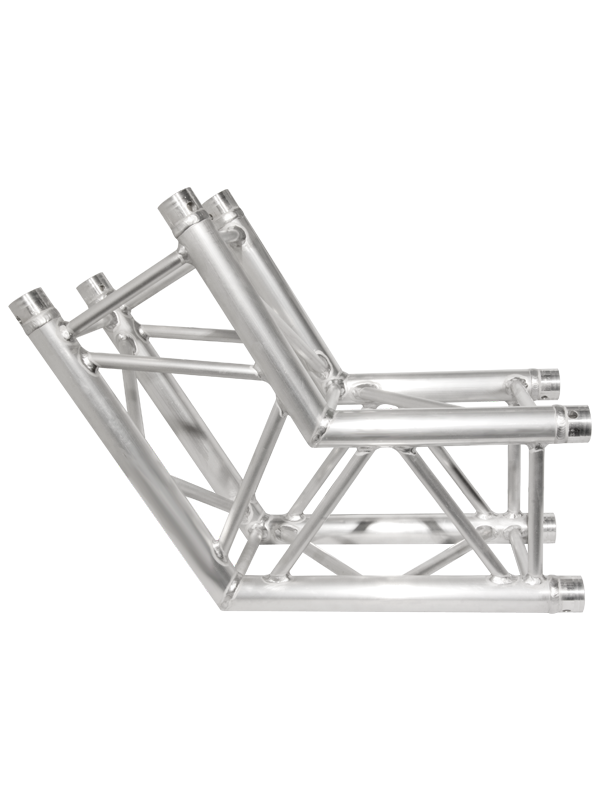

2-Way 120-degree Corner

2-way 120° corner helps you easily make hexagons. It works with our CT-290 series, (290-millimeter) box truss and other brands of truss that utilize the same conical connection and size.

Highlights

  • Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup

  • Carefully crafted by SLV-certified welders

  • Compatible with many TRUSST® accessories to create an astonishing and custom presentation

  • Easily create hexagons with multiple pieces

  • Many options available to achieve custom designs and unique structures

  • Includes connecting hardware

Specifications

  • Length:0.5 m (1.64 ft)
  • Weight:12.12 lbs (5.5 kg)
  • Size:11.42 x 11.42 in (290 x 290 mm)
  • Approvals:SLV
  • Outer diameter tube: 2 in (50 mm)
  • Diagonal bracing: 0.75 in (20 mm)
  • Wall thickness: 0.08 in (2 mm)

What's Included

  • 2-Way 120-degree Corner
  • CT290-4120C
  • Connecting hardware - conical connectors, spigots, cotter pins (8 sets)
