New

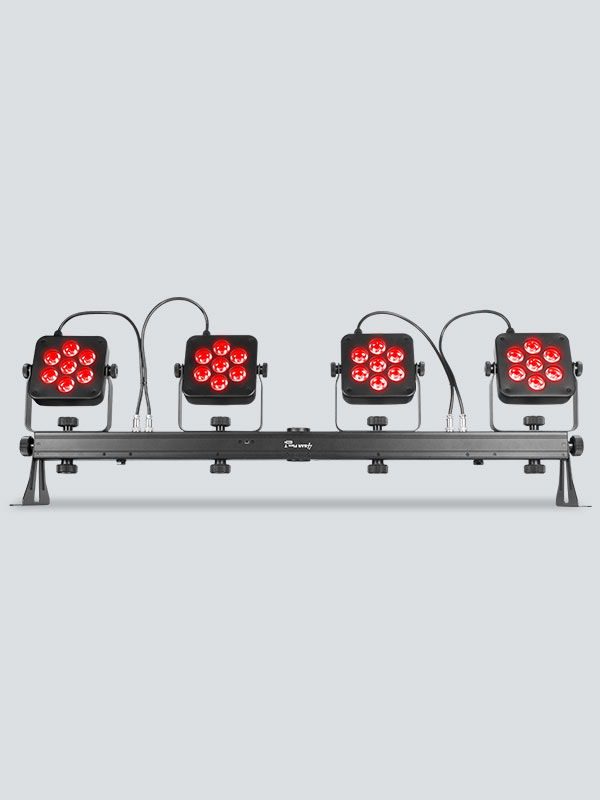

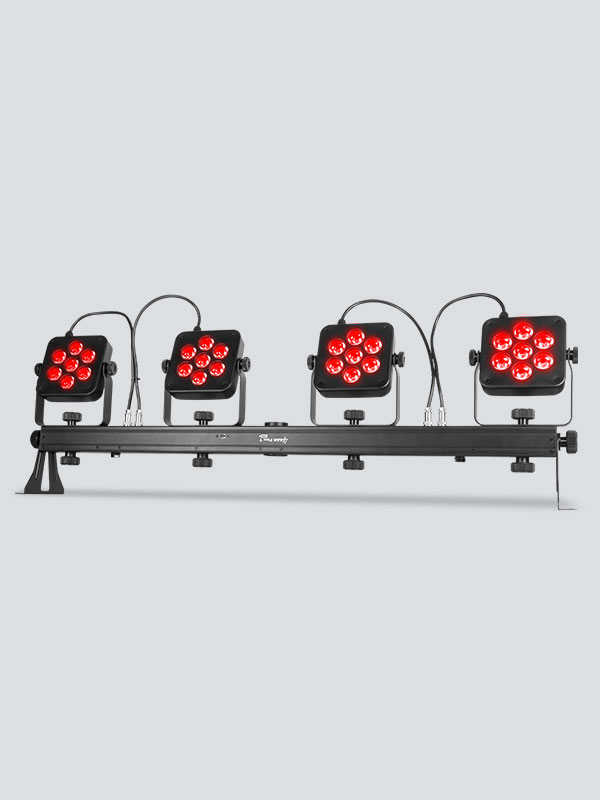

4BAR Flex T USB

4BAR Flex T USB is one of the most versatile and convenient pack-n-go lighting systems anywhere. The unit features unmatched flexibility with the addition of D-Fi™ USB compatibility for wireless master/slave or DMX control. You can maximize setup possibilities and configurations with 2 included L-brackets and the unit mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole. Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR Flex T USB and provide electricity to the additional lights by using the built-in Edison plugs. Easily set up and tear down in minutes with the included carrying bag and create large, coordinated light shows with other 4BAR fixtures in master/slave mode.

Highlights

  • Upgraded version of the popular 4BAR Tri USB increases FLEXibility

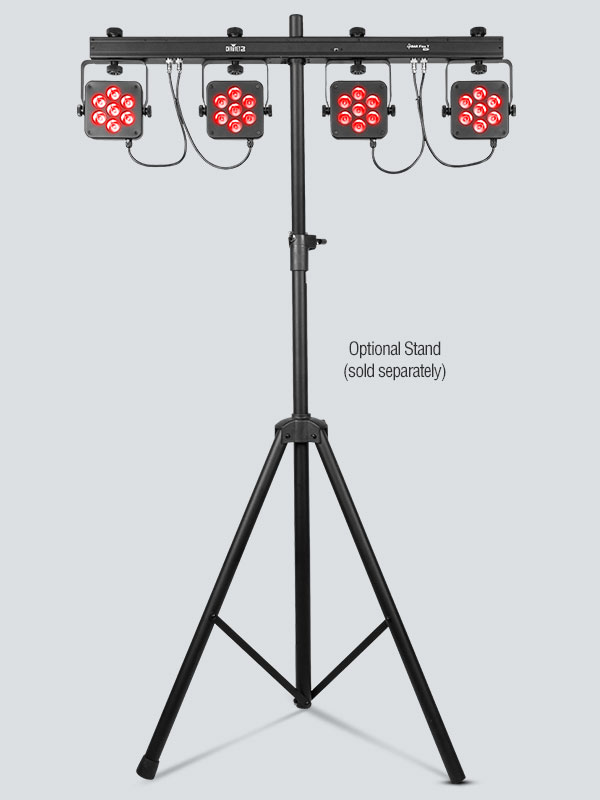

  • Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole

  • D-Fi™ USB compatibility for wireless master/slave or DMX control

  • Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR Flex

  • Provide electricity to the additional lights by using the built-in Edison plugs

  • Maximize setup possibilities and configurations with 2 included L-brackets

  • Easily set up and tear down in minutes with the included carrying bag

  • Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6

  • Safely mounts to truss using built-in bolts

  • Create large, coordinated light shows with other 4BAR fixtures in master/slave mode

Specifications

  • DMX Channels: 3 or 15
  • DMX Connectors: 3-pin XLR
  • Light Source: 28 LEDs (tri-color RGB) 3 W, (800 mA), 50,000 hours life expectancy
  • Strobe Rate: 0 to 22 Hz
  • Beam Angle: 18° (per pod)
  • Field Angle: 31° (per pod)
  • Illuminance: 2330 lux @ 2 m (per pod)
  • Power Linking: 8 units @ 120 V; 16 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 64 W, 1 A @ 120 V, 60 Hz
    63 W, 0.5 A @ 230 V, 50 Hz
  • Weight: 11.6 lb (5.3 kg)
    (Controller): 0.8 lb (1.8 kg)
  • Size: 47.4 x 5.5 x 14.75 in (1205 x 140 x 374.8 mm)
    (Controller): 12.4 x 5.2 x 1.5 in (315 x 131.5 x 37.5 mm)
  • Approvals: CE
  • Stand Height: 7 ft 4 in (2.2 m)
  • Optional Controllers: IRC – 6, D-Fi USB

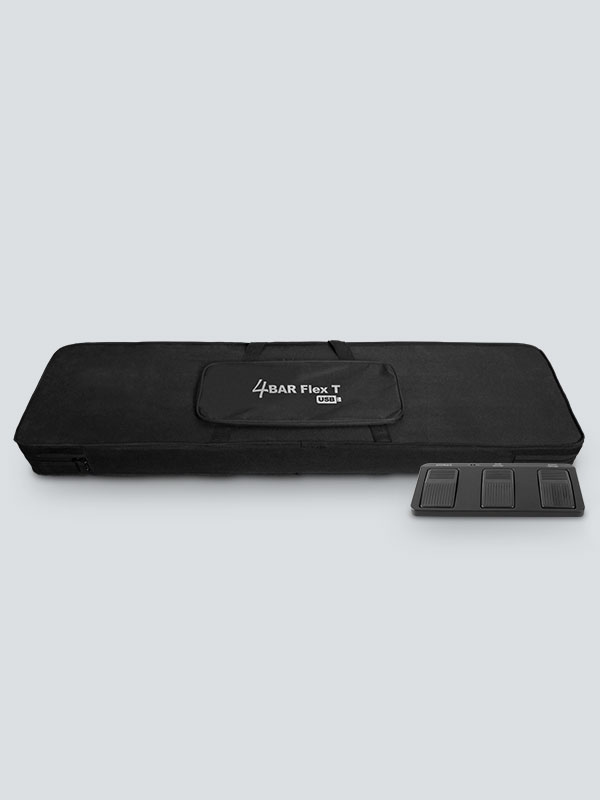

What's Included

  • 4BAR Flex T USB
  • Power cord
  • 4BAR and Stand carry bag
  • Tripod
  • Wireless Footswitch
  • Quick Reference Guide / Warranty card
