4BAR LT USB

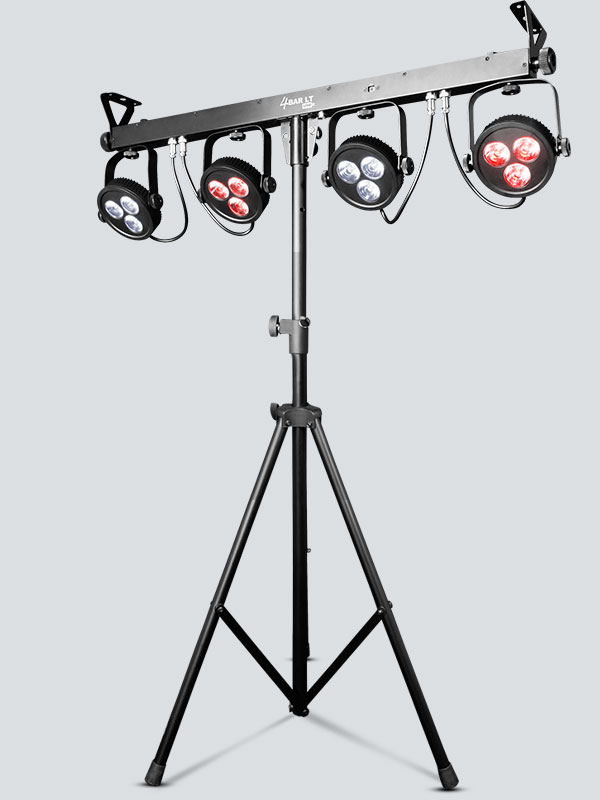

4BAR LT USB is a complete wash lighting system with D-Fi USB compatibility for wireless Master/Slave or DMX control. Four fully adjustable round pods each with three 9 watt LEDs achieve total room or stage coverage. Create coordinated light shows in Master/Slave mode and easily control static colors and automated programs with the optional IRC-6 remote. You can easily set up and tear down in seconds with the included tripod, carry bags and footswitch.

Highlights

  • Enhanced, brighter version of the popular Mini 4BAR 2.0 with round pods and 9 watt LEDs

  • D-Fi USB compatibility for wireless master/slave or DMX control

  • Easily set up and tear down in seconds with the included tripod, carry bags and footswitch

  • Create large, coordinated light shows with other 4BAR fixtures in master/slave mode

  • Achieve total room or stage coverage with 4 individually adjustable heads

  • Easily control static colors and automated programs with the optional IRC-6 remote

  • Sound-activated programs dance to the beat of the music

Specifications

  • DMX Channels: 3 or 15
  • DMX Connectors: 3-pin XLR
  • Light Source: 12 LED (tri-color RGB) 9 W (1.2 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 22 Hz
  • PWM Frequency: 1.22 kHz
  • Beam Angle: 16°
  • Field Angle: 24°
  • Fits Tripod Size: 1 in (25.4 mm)
  • Illuminance: 2,053 lux @ 2 m
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 52 W, 0.8 A @ 120 V, 60 Hz
    51 W, 0.4 A @ 230 V, 50 Hz
  • Weight: 10.8 lb (4.9 kg)
  • Size: 36.1 x 3.7 x 10.8 in (918.1 x 95 x 274.3 mm)
  • Approvals: CE
  • Stand Height: 50-83 in (127-211 cm)
  • Optional Controllers: IRC - 6

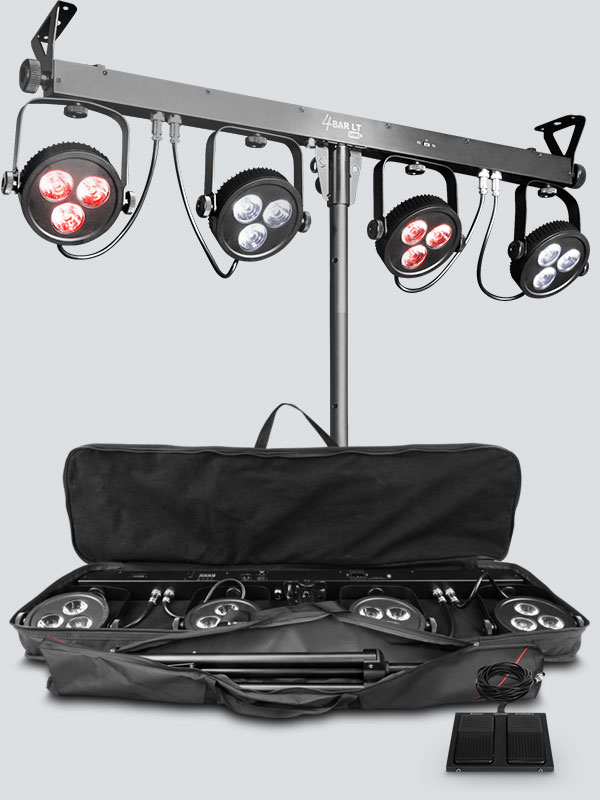

What's Included

  • 4BAR LT USB
  • Power cord
  • Carrying bags
  • Tripod
  • Footswitch
  • Warranty card
  • Quick Reference Guide
