Discontinued Since 2015

4BAR Tri

It’s a complete, portable tri-color LED wash lighting solution. Building on the success of the 4BAR, the 4BAR Tri adds high power tri-color LEDs for a more intense and uniform color output. Tri-color LEDs make the light perfect for front lighting as they nearly eliminate multi-colored shadows.

Like the original, this unit is ready to go with a tripod, footswitch and carry bags.

Highlights

  • Complete wash lighting solution fitted with high-intensity, tri-color LEDs

  • Achieve total room or stage coverage with 4 individually adjustable heads

  • Low-profile lights are 1.6 in deep

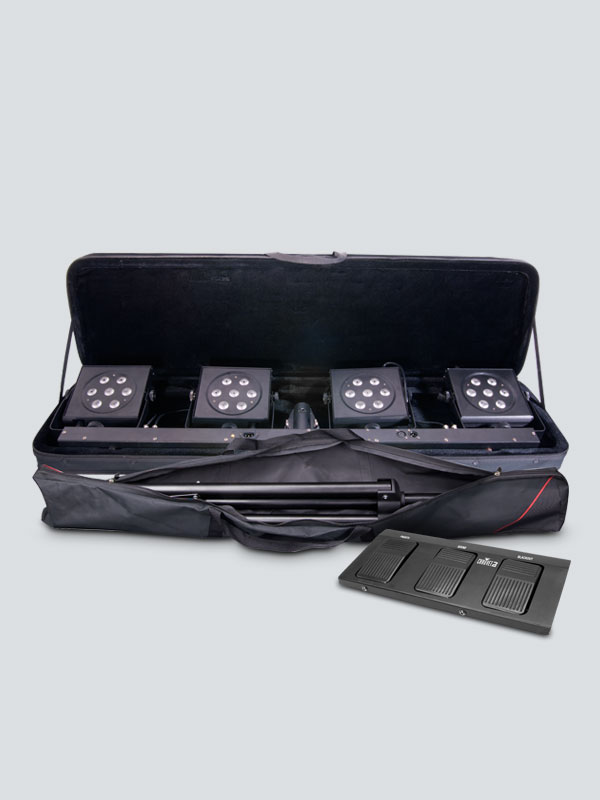

  • Easily set-up and tear down in minutes with the included carrying bag

  • Nearly eliminate multi-colored shadows with high-powered, tri-color LEDs

  • Increase mounting options by safely mounting to truss using built-in bolts

  • Create large, coordinated light shows with other 4BAR™ fixtures in master/slave mode

  • Save time running cables and extension cords by power linking multiple units

  • Sound-activated programs dance to the beat of the music

  • Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs

Specifications

  • DMX Channels: 3 or 15
  • DMX Connectors: 3-pin XLR
  • Light Source: 28 LEDs (tri-color RGB) 3 W (1,050 mA), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle: 22°
  • Field Angle: 42°
  • Fits Tripod Size: 0.9 to 1.4 in (23 to 35) mm
  • Illuminance: 1,869 lux @ 2 m (per pod)
  • Power Linking: 8 units @ 120 V; 16 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 113 W, 1 A @ 120 V, 60 Hz
    118 W, 0.5 A @ 230 V, 50 Hz
  • Weight: 31lb (14.1 kg)
  • Size: 48 x 2.2 x 11.2 in (1,219 x 55 x 285) mm
  • Approvals: CE
  • Stand Height: 4.7 to 7.6 ft (1.4 to 2.3) m

What's Included

  • 4BAR Tri
