Discontinued Since 2016

6SPOT Quad IRC

6SPOT Quad IRC is a 6-headed fixture that makes it easy to pin spot multiple locations or cover an entire area with vividly colored spots. Each of its half dozen moving heads contains an intense RGBW LED. This pin spotting dynamo features a variety of mounting options, including a unique slipover design that fits virtually all tripod stands, L-brackets and multiple clamping locations. An optional IRC-6 remote allows wireless control. Each product includes a handy carrying bag. Stand not included.

Highlights

  • Complete and affordable spot and effect lighting solution fitted with high-intensity quad-color (RGBW) LEDs

  • Achieve total room or stage coverage with 6 individually adjustable heads

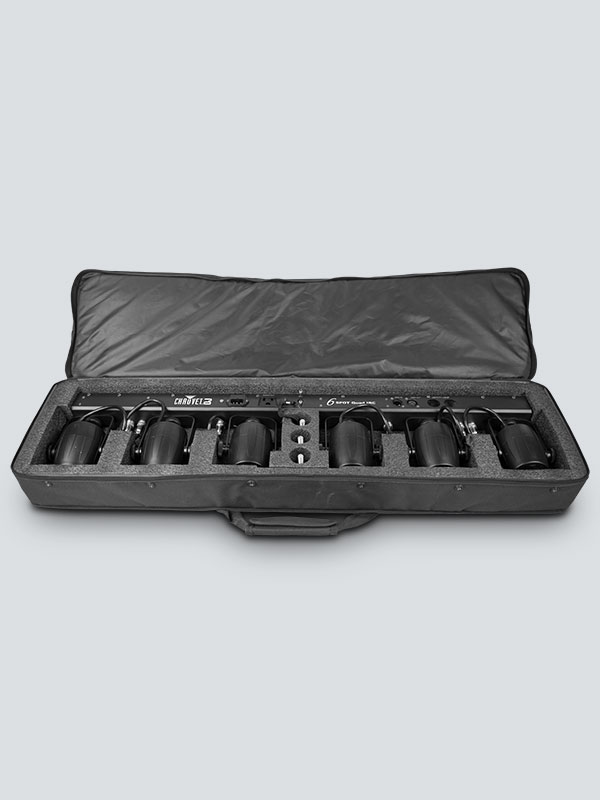

  • Easy setup and teardown with included carrying bag

  • Multiple mounting options including L-brackets for floor or truss mounting

  • Generate a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs

  • Wireless control when using the optional IRC-6 remote control

  • Save time running cables and extension cords by power linking multiple units

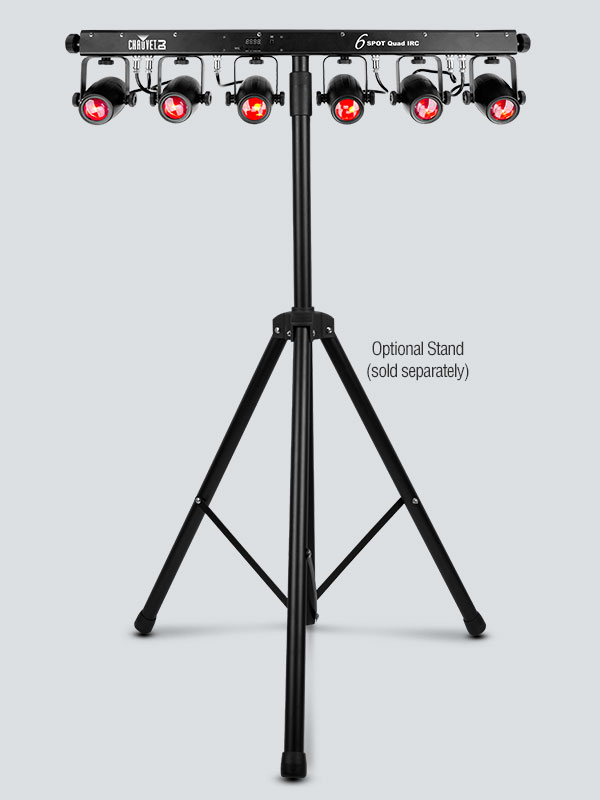

  • Mounts to almost any universal tripod and the popular 4BAR system

  • Sound-activated programs dance to the beat of the music

Specifications

  • DMX Channels:4, 10 or 28
  • DMX Connectors:3-pin XLR
  • Light Source:6 LEDs (quad-color RGBW) 6.3 W (2 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 33 Hz
  • Beam Angle:15°
  • Illuminance:483 lux @ 2 m (per pod)
  • Power Linking:9 units @ 120 V; 18 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:55 W, 0.8 A @ 120 V, 60 Hz
    54 W, 0.4 A @ 230 V, 50 Hz
  • Weight:11.6 lb (5.3 kg)
  • Size:37.25 x 3.9 x 10.8 in (946 x 100 x 276 mm)
    Fits Tripod Sizes: 1.25 to 1.5 in (35 to 38 mm)
  • Approvals:CE
  • Optional Controllers: IRC-6

What's Included

  • 6SPOT Quad IRC

Downloads
