Discontinued Since 2015

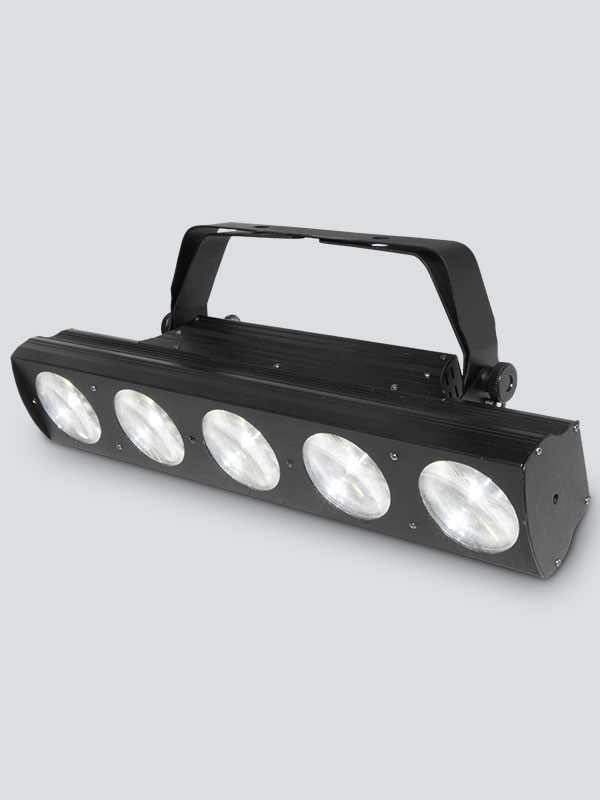

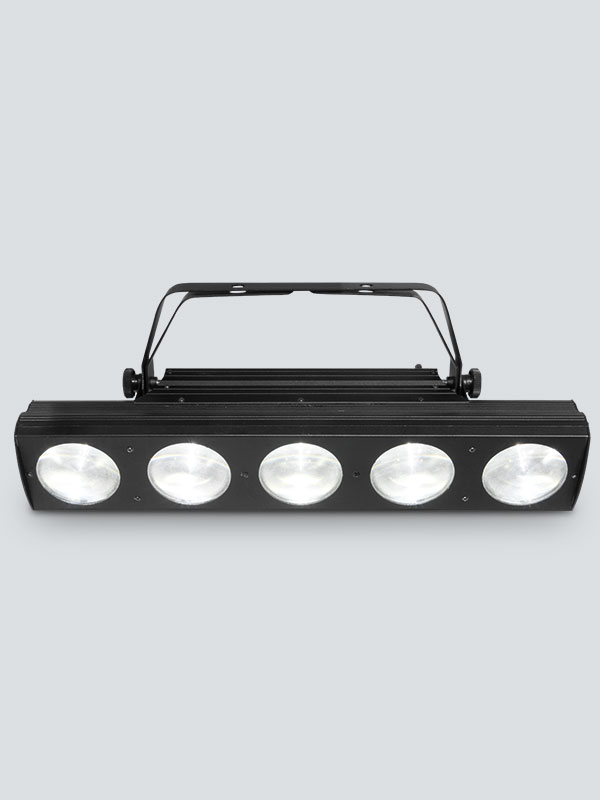

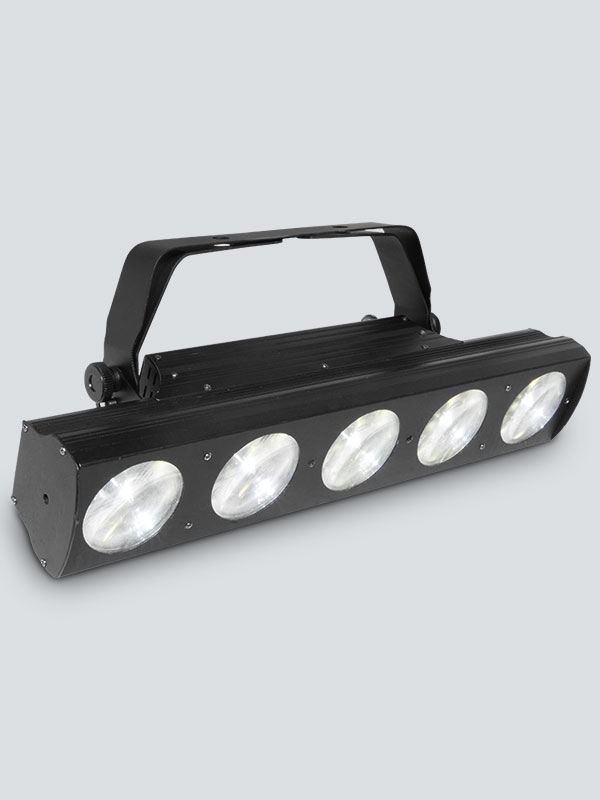

BEAMbar

BEAMbar projects razor-sharp beams of white light for stunning visual effects. Easily program the fixture to emit intense runway effects, or build a massive matrix by combining several units using the CBB-6 mounting bracket. Take command with full pixel control using ShowXpress Pixels and create eye-catching sweeps and animations in DMX mode; or for complete ease, activate exciting built-in, automated programs.

Highlights

  • Linear aerial effect light with full pixel control

  • Produce banks of light with narrow, razor-sharp beams

  • Enhance any gig with built-in, eye-catching effects

  • Create light shows using built-in, sound-active auto programs

  • Build impressive matrixes or runway effects with multiple fixtures

  • Easily generate complex looks using ShowXpress™ Pixels

  • Simulate halogen lighting and achieve smooth LED fading with built-in dimming curves

  • Combat harsh, on-the-road conditions with a robust casing

  • Save time running cables and extension cords by power linking multiple units

  • Trigger built-in automated programs using Master/Slave or DMX mode

  • Sound-activated programs move to the beat of the music

  • Easily transport up to two units in the CHS-60 VIP Gear Bag

  • Works with the CBB-6 to attach multiple units together

Specifications

  • DMX Channels: 4 or 5
  • DMX Connectors: 3-pin XLR
  • Light Source: 5 LEDs (white) 6 W (1.9 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 24 Hz
  • Beam Angle:
  • Illuminance: 17,300 lux @ 2 m
  • Power Linking: 21 units @ 120 V; 39 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 44 W, 0.6 A @ 120 V, 60 Hz
    43 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 6.6 lb (3.1 kg)
  • Dimensions: 19.7 x 3.9 x 8.5 in (500 x 98 x 217 mm)
  • Approvals: CE

What's Included

  • BEAMbar
