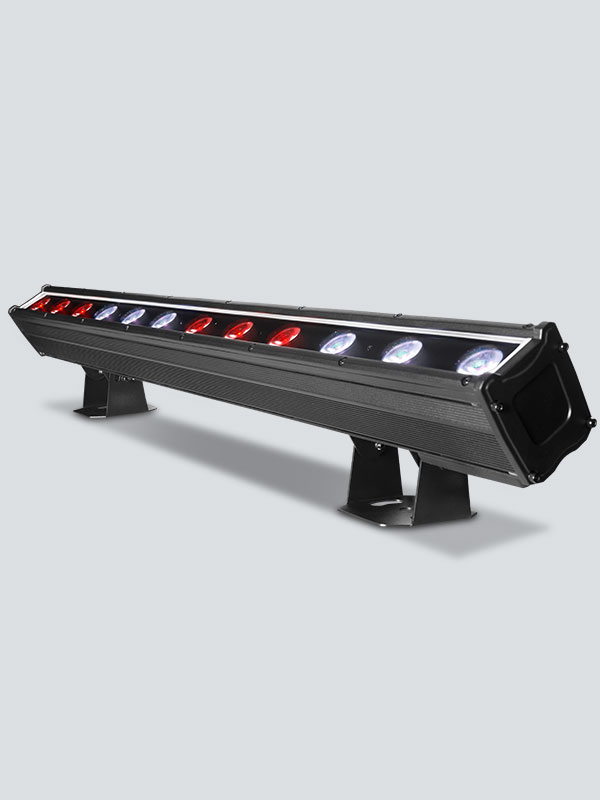

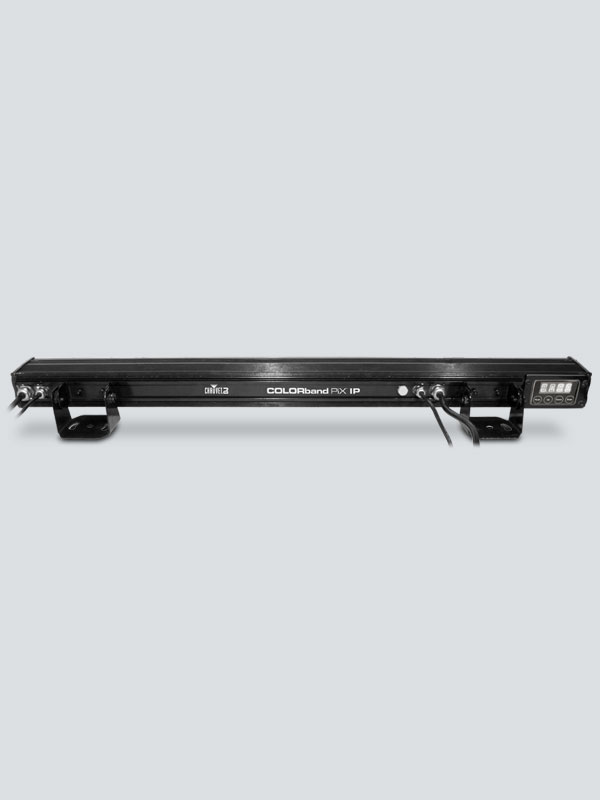

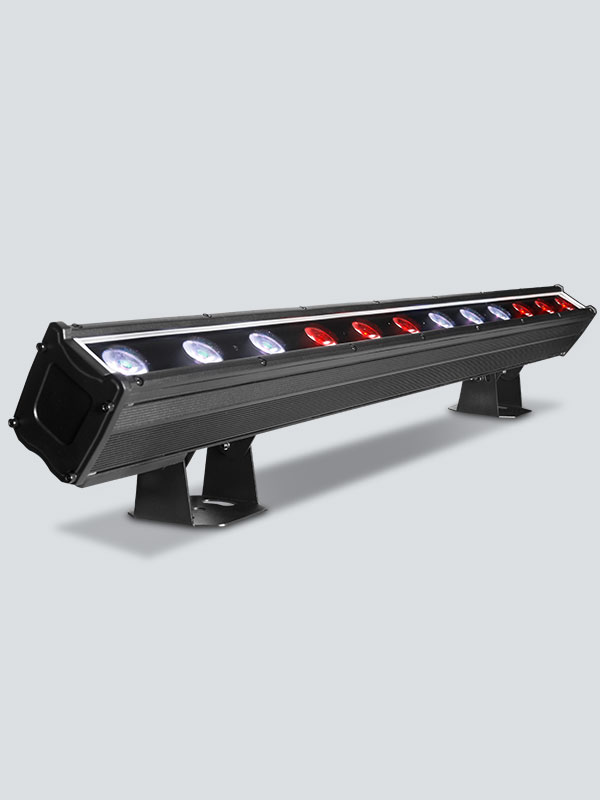

COLORband PiX IP

Great for use as a powerful wash with the additional eye candy of pixel mapping effects, COLORband PiX IP is a must-have fixture for mobile DJs or club installers looking for high-impact visuals on a budget. Perfect for both indoor and outdoor events, this IP65-rated fixture means you no longer have to worry about rain or a spilled drink ruining your fixtures. Use multiple units together to easily generate video effects and animations. Individual control over 12 tri-color LEDs allows for custom looks at any event while impressive, built-in programs are accessible with or without DMX.

Highlights

  • Outdoor-rated LED strip light functions as a pixel mapping effect, blinder or wall washer for any temporary outdoor event

  • Create amazing animations and video effects in an outdoor environment with individual LED control

  • Weatherproof fixture designed for use at outdoor parties or behind wet bars

  • Robust housing repels water, snow, dirt, sand and salt for all-weather applications

  • Password protected and touch-sensitive digital display

  • Alleviate the need to rush to set up and tear down in the rain

  • Reduce the need for extra extension cords with power and data linking outputs

  • Prevent internal humidity build-up and allow the fixture to breathe with the integrated GORE® valve

  • Achieve flicker-free video operation with high-frequency LED dimming

  • Create large, coordinated light shows with COLORband™ PiX, COLORband™ PiX Mini, and COLORband™ PiX-M fixtures in Master/Slave mode

  • Easily generate complex looks with ShowXpress™ Pixels

  • Easily transports in the optional CHS-60 VIP Gear Bag

Specifications

  • DMX Channels: 3, 4, 6, 7, 9, 12, 18 or 36
  • DMX Connectors: 3-pin XLR
  • Light Source: 12 LEDs (tri-color RGB) 3 W (1,050 mA), 50,000 hours life expectancy
  • Strobe Rate: 0 to 30 Hz
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 20°
  • Field Angle: 34°
  • Illuminance: 2,325 lux @ 2 m
  • IP Rating: IP65
  • Power Linking: 9 units @ 120 V; 17 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 98 W, 0.7 A @ 120 V, 60 Hz
    103 W, 0.4 A @ 230 V, 50 Hz
  • Weight: 13.5 lb (6.1 kg)
  • Size: 39 x 3.9 x 6.8 in (993 x 100 x 173 mm)
  • Approvals: CE, MET

What's Included

  • COLORband PiX IP
  • Power Cord
  • DMX (in) adaptor
  • DMX (out) adaptor
  • Quick Reference Guide
  • Warranty card
