Discontinued Since 2023

COLORpalette

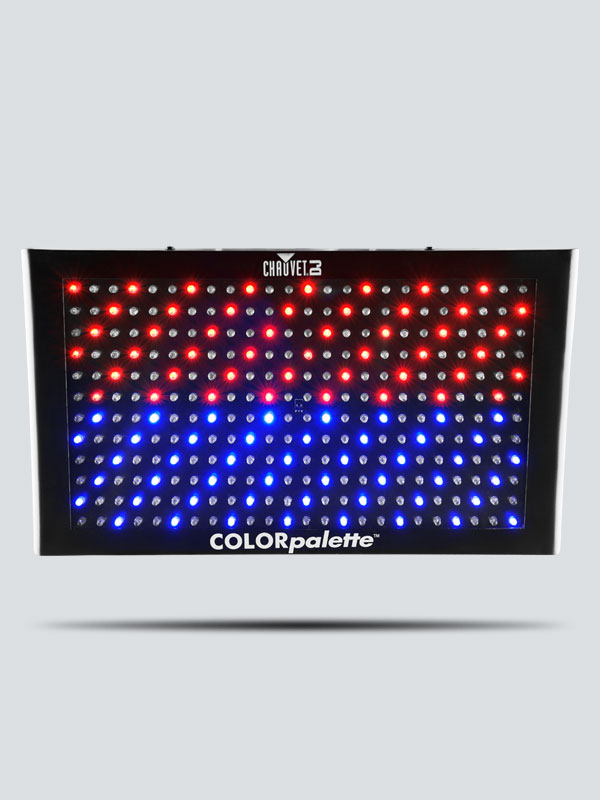

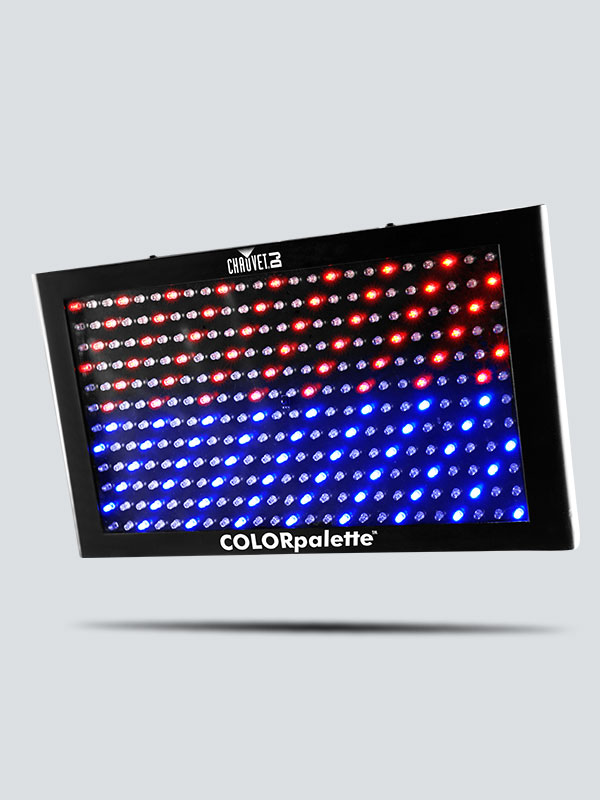

COLORpalette is a powerful wash panel fitted with 288 LEDs (96 red, 96 green, 96 blue) to emit a wash or colorful effects during any mobile application. It includes built-in, automated and sound-activated programs for plug-and-play operation, or you can create customized looks using 6, 9, 15 or 27 channels of DMX control.

Highlights

  • Compact LED panel designed for applications in need of a wash light or eye candy effects

  • Easily generate complex looks with built-in, automated programs featuring zone control

  • Design custom light shows using ShowXpress™ Pixels

  • Convenient, wireless non-DMX control using the optional IRC-6 remote

  • Control via DMX, IRC-6, Standalone or Master/Slave modes

  • Easily transports in the optional CHS-40 VIP Gear Bag

Specifications

  • DMX Channels:3, 6, 9, 15 or 27
  • DMX Connectors:3-pin XLR
  • Light Source:288 LEDs (96 red, 96 green, 96 blue) 0.25 W (20 mA), 100,000 hours life expectancy
  • Beam Angle:31° x 29°
  • Illuminance:1,813 lux @ 2 m
  • Power Linking:16 units @ 120 V; 31 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:58 W, 0.4 A @ 120 V, 60 Hz
    60 W, 0.2 A @ 230 V, 50 Hz
  • Weight:6.2 lb (2.8 kg)
  • Dimensions:16.8 x 9.8 x 7 in (425 x 248 x 178 mm)
  • Approvals:CE, MET
  • Optional Controllers: IRC-6

What's Included

  • COLORpalette
  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
