Discontinued Since 2022

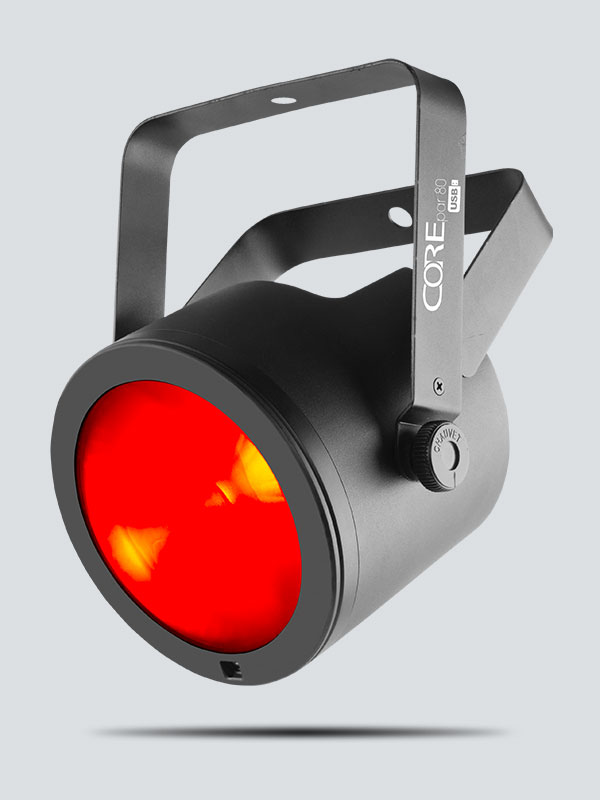

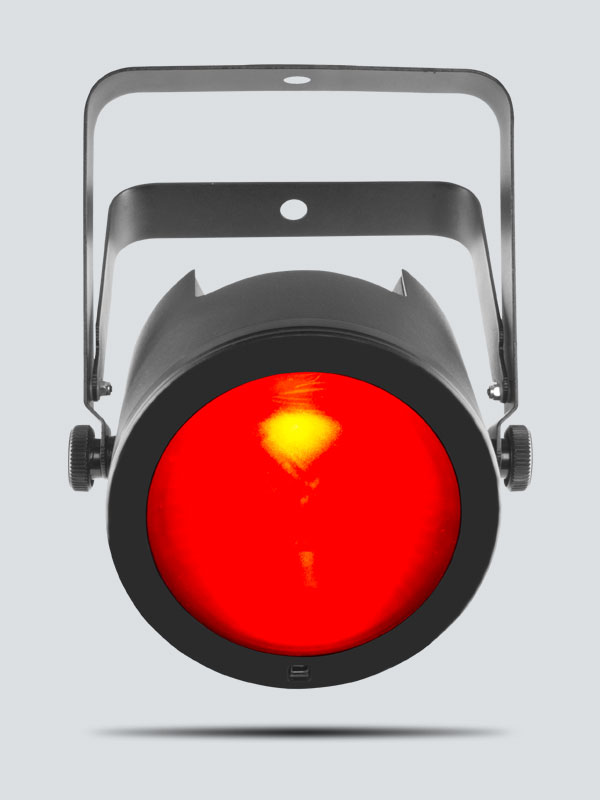

COREpar 80 USB

COREpar 80 USB produces a full spectrum of light with the unsurpassed color mixing of COB (Chip-on-Board) technology and includes a separate magnetic lens to provide the flexibility to go from an ultra-wide wash to a narrow beam in seconds. High frequency LED dimming achieves smooth LED fades and ensures a flicker-free performance in video applications. Multiple control options include DMX, master/slave and sound activation modes as well as wireless control thanks to D-Fi USB compatibility. Point-and-shoot operation of static colors and automated programs is also possible with the optional IRC-6 remote control (sold separately). The unit’s robust sit-flat housing features power and DMX outlets on the side.

VIP Rewards Value: 300 Points



Highlights

  • COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

  • Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds

  • Withstand the harshness of traveling from gig to gig with a robust housing

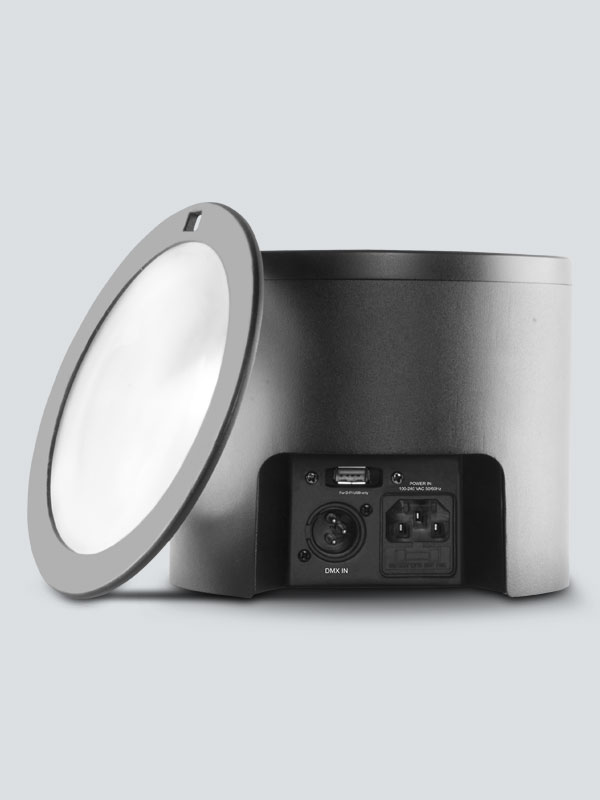

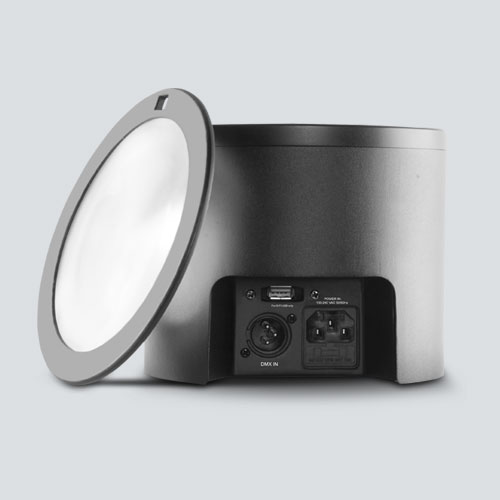

  • Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit

  • Achieve flicker-free video operation with high-frequency LED dimming

  • Save time running cables and extension cords by power linking multiple units

  • Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote

  • Multiple control options include DMX, Master/Slave and Sound-Active modes

  • Create customized colors using the built-in LED display

  • Achieve smooth LED fading with built-in dimming curves

  • Easily transports in the optional CHS-30 VIP Gear Bag

  • Compact design easily fits inside sticks of TRUSST®

Specifications

  • DMX Channels:3 or 8
  • DMX Connectors:3-pin XLR
  • Light Source:1 COB LED (tri-color RGB) 80 W, (2 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 33 Hz
  • PWM Frequency:2,000 Hz
  • Beam Angle:70° (without lens)
    25° (with lens)
  • Field Angle:90° (without lens)
    40° (with lens)
  • Illuminance:405 lux @ 2 m (without lens)
    2,143 lux @ 2 m (with lens)
  • Power Linking:7 units @ 120 V; 13 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:75 W, 1.1 A @ 120 V, 60 Hz
    72 W, 0.6 A @ 230 V, 50 Hz
  • Weight:4.2 lb (2.0 kg)
  • Size:7.9 x 5.6 x 9.9 in (200 x 143 x 253 mm)
  • Approvals:CE
  • Optional Controllers: IRC-6, D-Fi USB

What's Included

  • COREpar 80 USB
  • Power cord
  • Magnetic Fresnel lens
  • Warranty card
  • Quick Reference Guide
  • Hanging bracket with mounting
