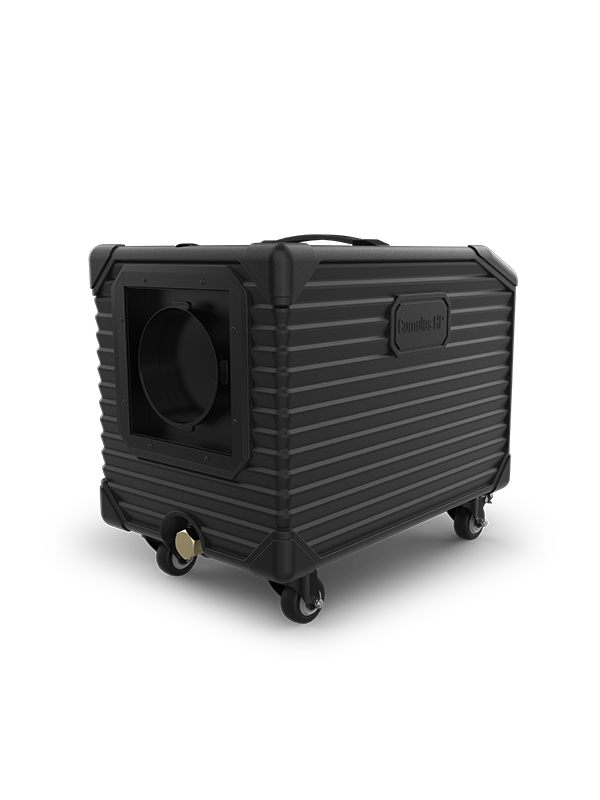

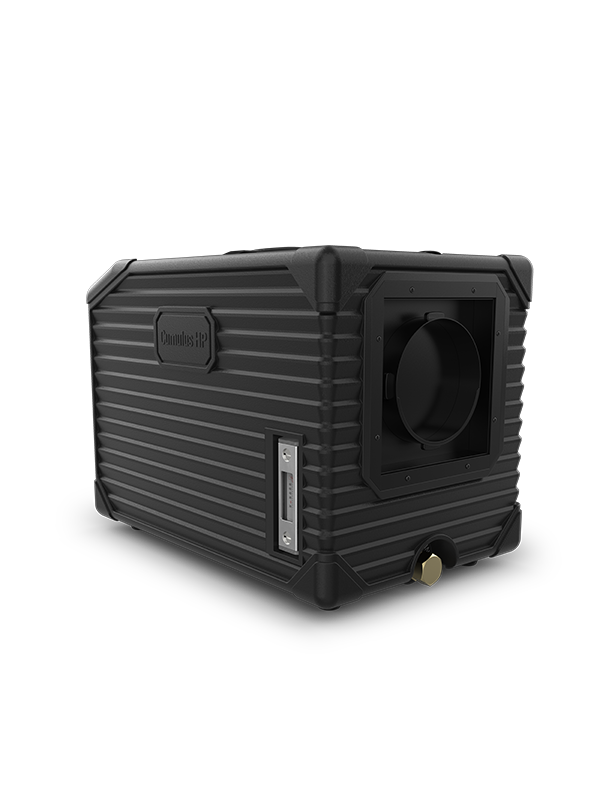

Cumulus HP

The event industry’s favorite low-lying fog machine is now smaller, lighter, and easier to control than ever. Cumulus HP creates thick clouds that hug the floor creating a stunning special effect, without the need for dry ice. The onboard ultrasonic atomizer converts distiller water into a thin mist. The unit’s fast heat up time allows for quick operation and fog on demand. Its rugged plastic housing acts as a case making transportation a breeze. Cumulus HP can be controlled with the built-in digital display, DMX, or included wireless remote.

Highlights

  • Professional low-lying fog machine creates thick clouds that hug the floor

  • Continuous operation produces fog on demand

  • Ultrasonic agitator converts distilled water into a thin mist

  • Fast heat up time allows for quick operation

  • Rugged and light-weight case makes transportation a breeze

  • Control via built-in digital display, DMX or included wireless remote

Specifications

  • DMX Channels:2
  • DMX Connectors:3-pin XLR
  • Heat-Up Time:2 min
  • Input Voltage:120 VAC, 60 Hz or 230 VAC, 50 Hz
  • Power and Current:
    1608 W, 13.4 A @ 120 V, 60 Hz
    1541 W, 6.7 A @ 230 V, 50 Hz
  • Weight:34.6 lb (15.7 kg)
  • Size:18.3 x 11.9 x 13.7 in (464 x 304 x 347 mm)
  • Approvals:CE, UKCA, ROHS
  • Tank Capacity:2 gal (7.5 l)
  • Output:15,000 cfm
  • Capacity (fog): 0.5 gal (2 l)
  • Capacity (water): 2 gal (7.5 l)
  • Fluid Consumption (fog): 11 ml/min
  • Fluid Consumption (water): 87 ml/min
  • Hose diameter: 4.8 in (123 mm)
  • Hose length: 14 - 126 in (35 - 320 cm)
  • Power and Current: 1608 W, 13.4 A @ 120 V, 60 Hz
  • Compatible Fluids: LLG

What's Included

  • Cumulus HP
  • Cumulus HP

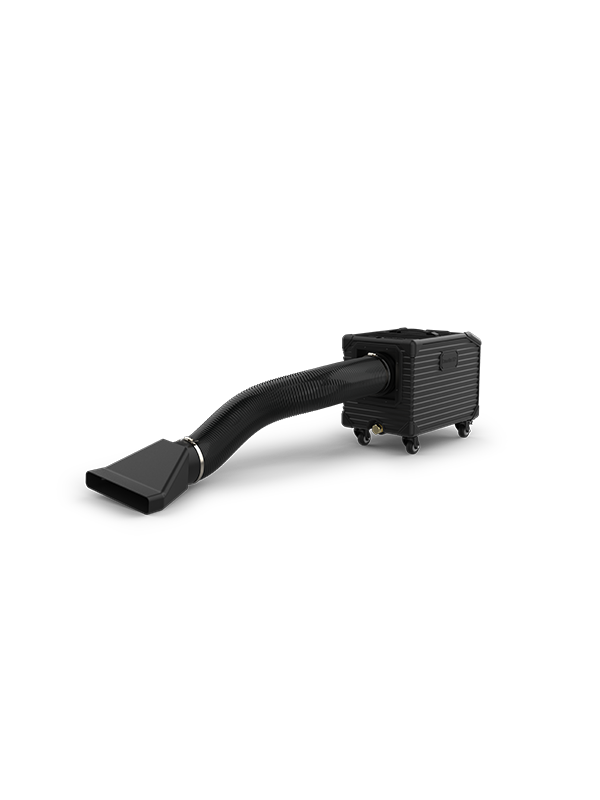

  • Hose, coupler and clamps
  • Floor nozzle
  • Wireless remote
  • Power cord
