Derby X

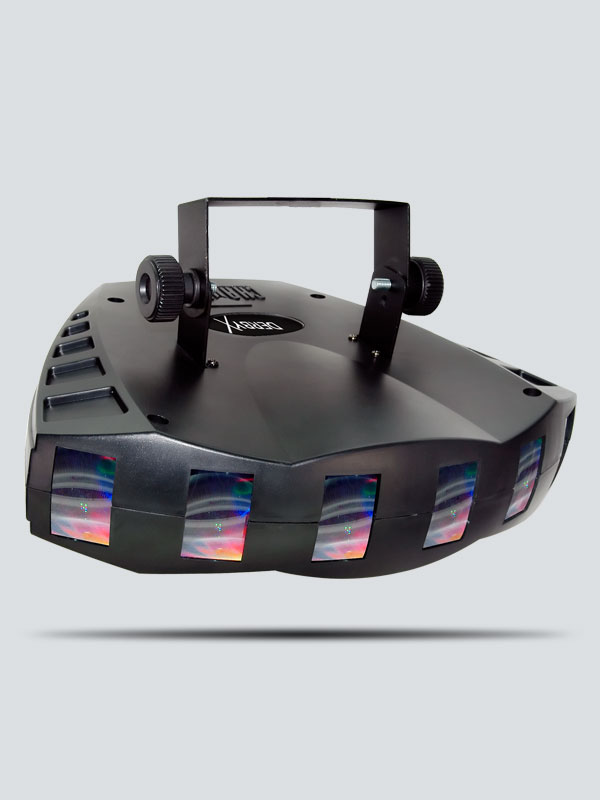

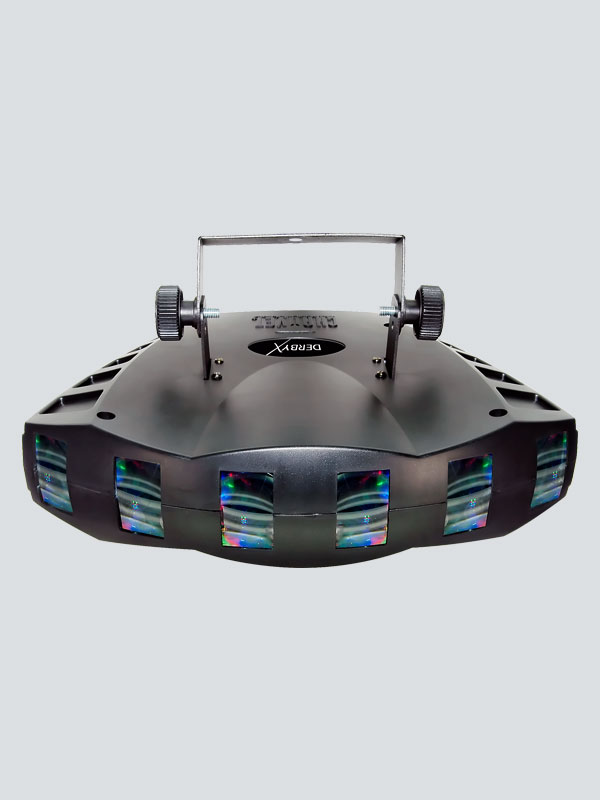

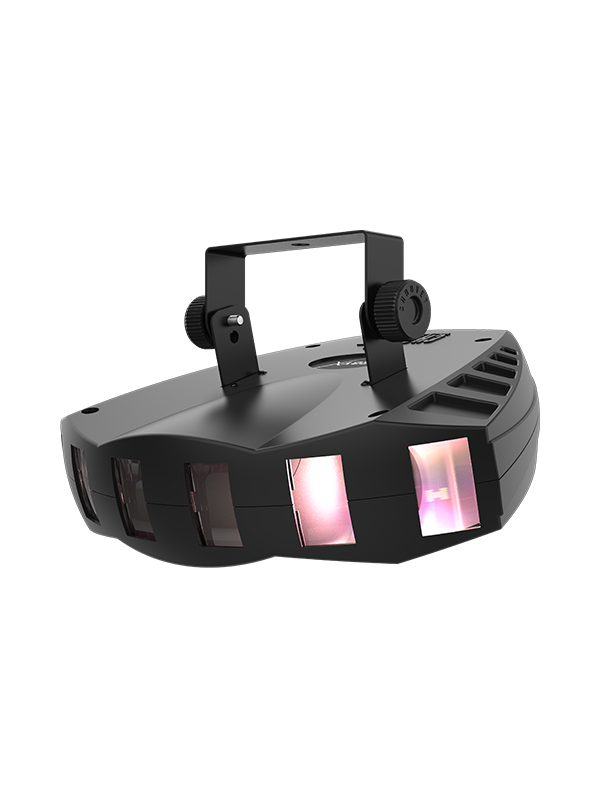

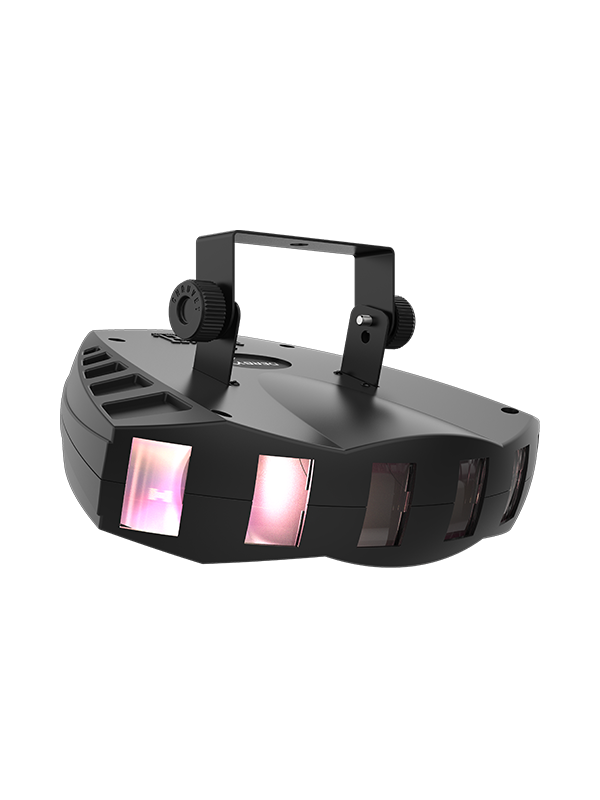

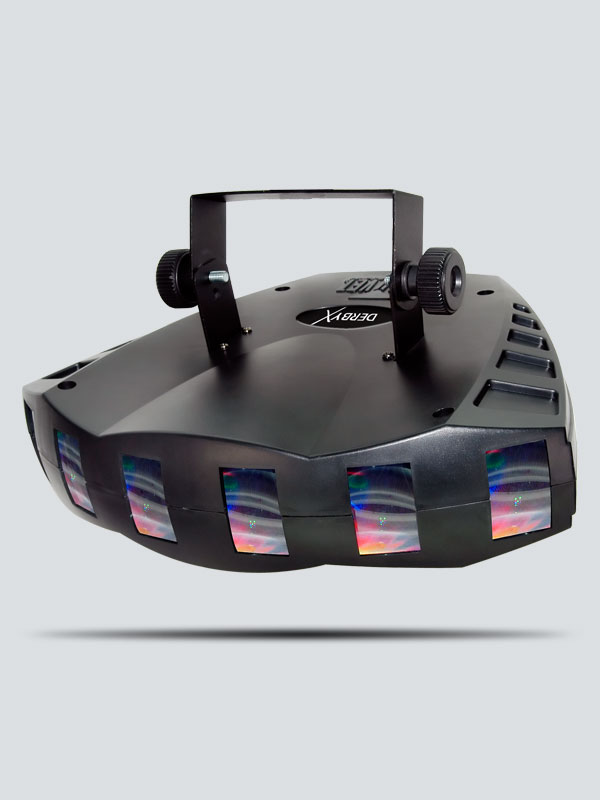

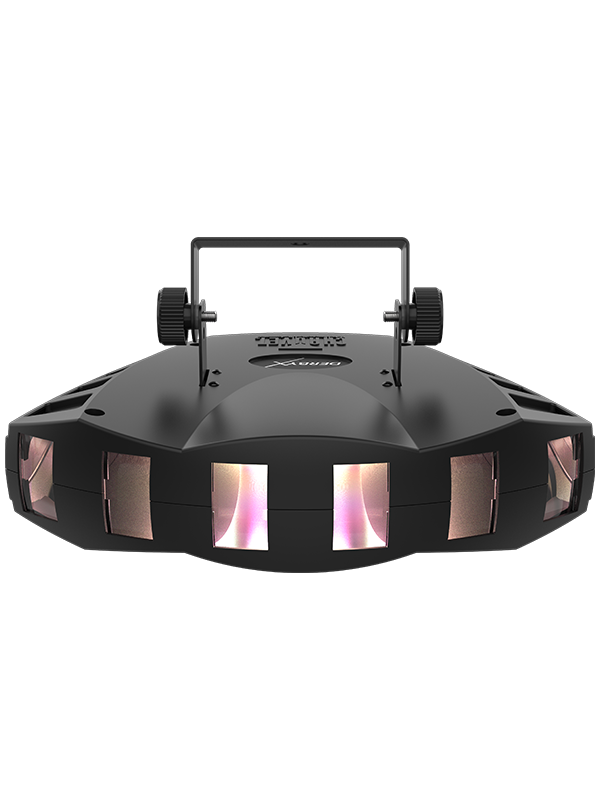

The Derby X is a DMX-512 LED derby effect light, featuring individual control of all 6 LED clusters. Additional features include blackout/static/strobe, built-in automated and sound activated programs, and linkable power for up to 27 units.

Buy Now

Highlights

  • LED derby effect light spreads multicolored, chasing beams throughout the room

  • Enhance light shows with blackout, static and strobe effects

  • Increase flexibility with individual control of red, green and blue LEDs within each of the 6 clusters

  • Activate built-in automated programs in DMX mode

  • Easily access built-in, sound-activated programs in master/slave or DMX mode

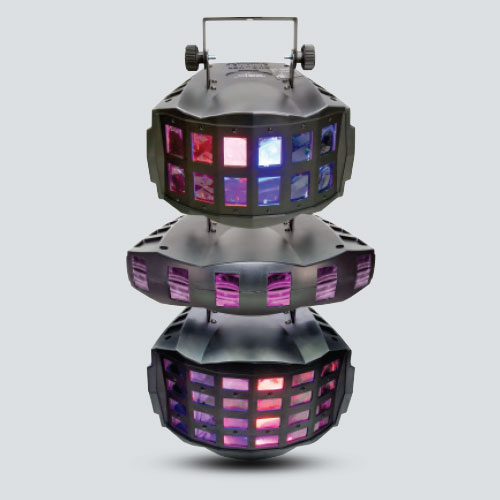

  • Combine multiple units together using the included, adjustable X bracket

  • Fits best in the CHS-40 VIP Gear Bag

  • Combine multiple units together using X bracket

Specifications

  • DMX Channels: 8

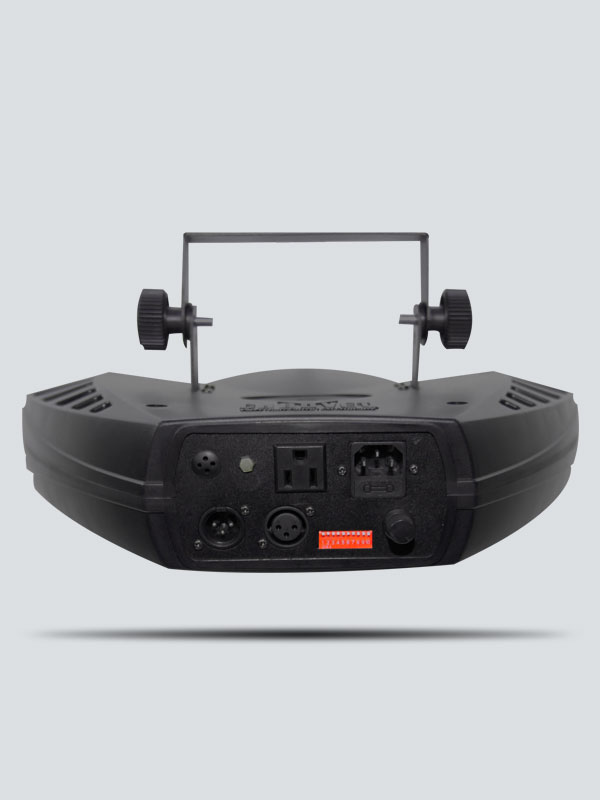

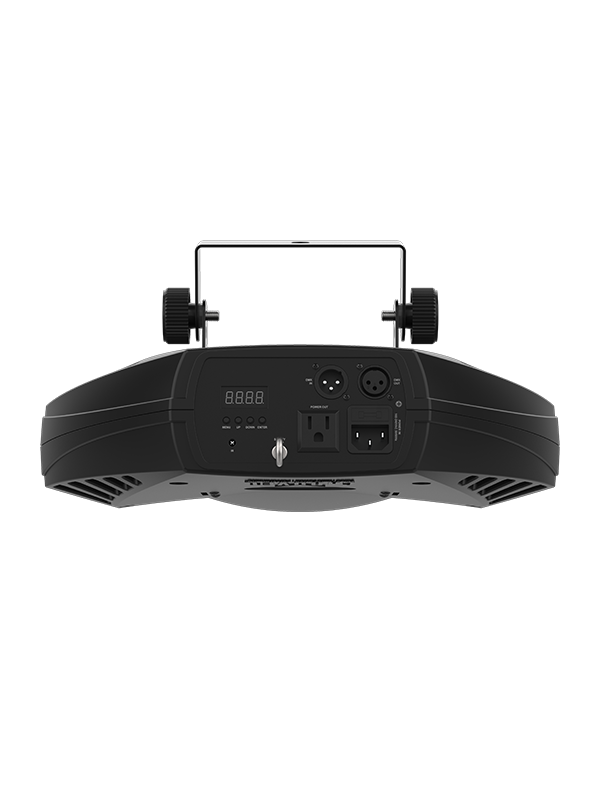

  • DMX Connectors: 3-pin XLR
  • Light Source: 90 LEDs (30 red, 30 green, 30 blue) 0.25 W (20 mA), 100,000 hours life expectancy
  • Power Linking: 27 units @ 120 V; 52 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 24 W, 0.2 A @ 120 V, 60 Hz
    24 W, 0.1 A @ 230 V, 50 Hz
  • Weight: 4 lb (1.8 kg)
  • Size: 11.9 x 15 x 7.4 in (302 x 382 x 187 mm)
  • Approvals: CE

What's Included

  • Derby X
  • Power cord
  • X Bracket
  • Warranty card
