New

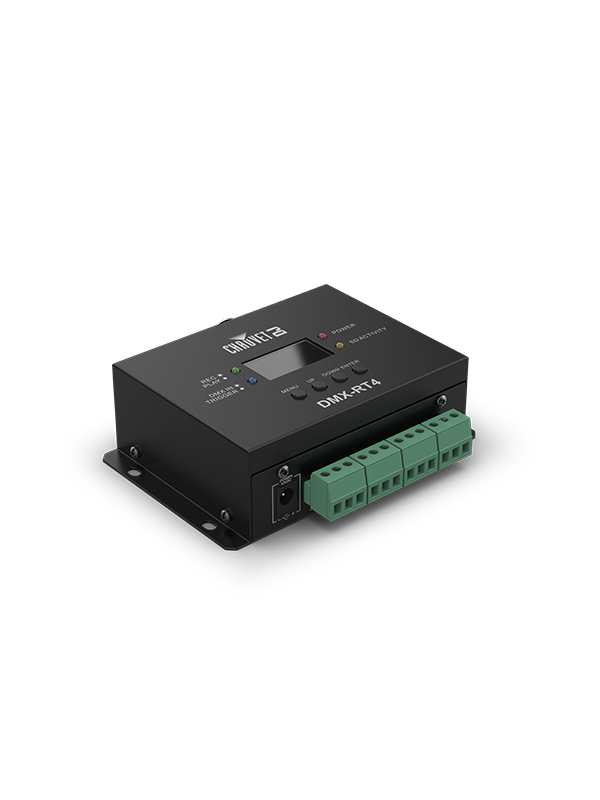

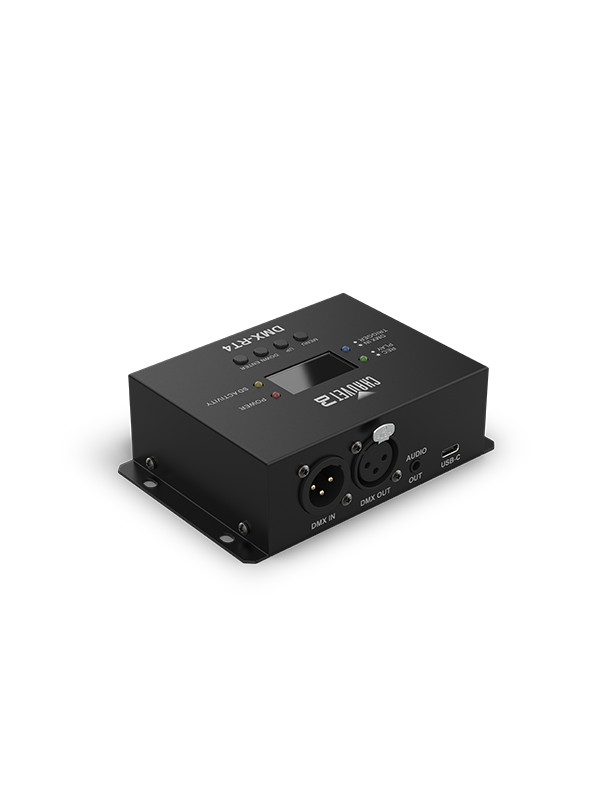

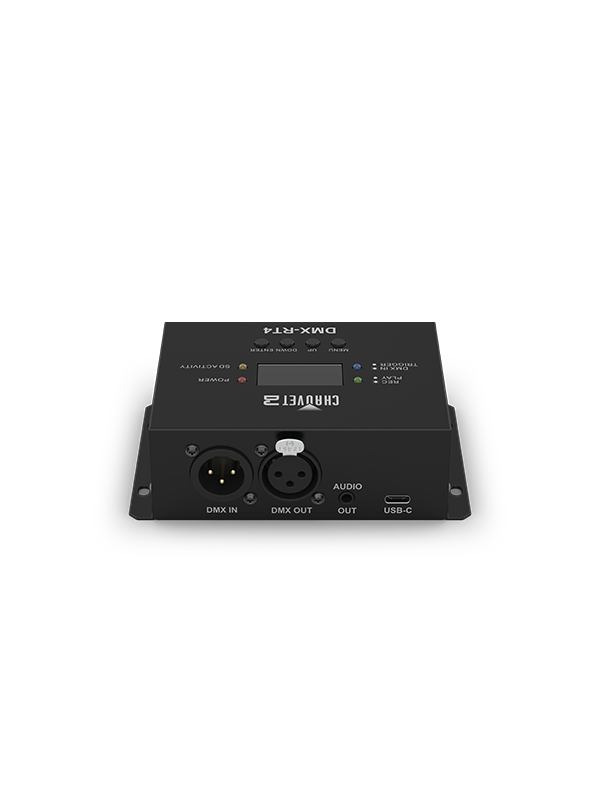

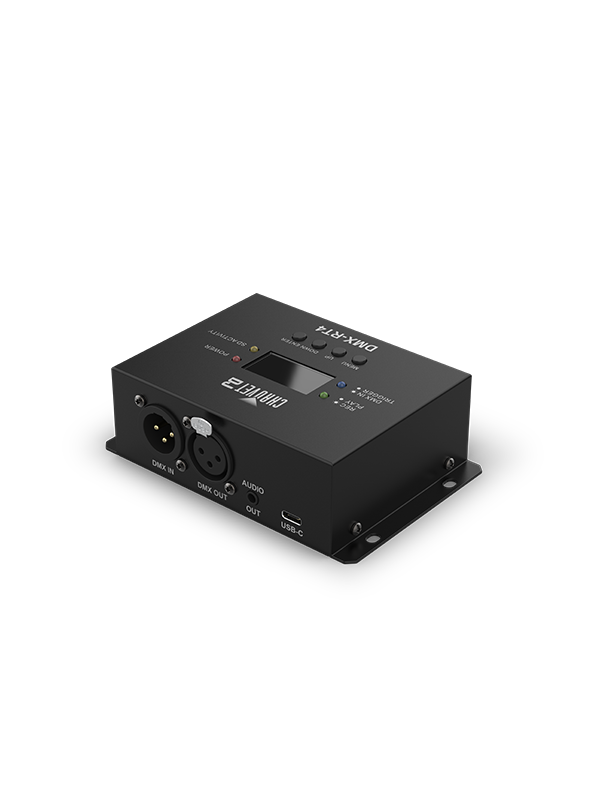

DMX-RT4

Recording and playing back DMX programming has never been easier than with DMX-RT4. This robust DMX recording and playback device has 4 independent triggers for playback and each trigger can be programmed and activated separately. Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors. The USB-C connector lets you copy, backup and transfer show files while a standard 3.5mm headphone jack connects to external audio systems for amplified playback. Keep your creations safe and secure with password protection. DMX-RT4 also supplies DC voltage through terminal block to power specific triggers.

Highlights

  • DMX recording and playback device with 4 independent triggers

  • Each trigger can be programmed and triggered separately

  • Copy, backup and transfer show files using the USB-C connector

  • Standard headphone connector (3.5mm) connects to external audio systems for amplified playback

  • Password protection ensures shows will not be altered

  • Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors

  • Supplies DC voltage through terminal block to power specific triggers

Specifications

  • DMX Channels:3-pin XLR
  • Input Voltage:12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz)
  • Power and Current:
    1 W, 0.03 A @ 120 V, 60 Hz
    1 W, 0.03 A @ 230 V, 50 Hz
  • Weight:0.4 lb (0.2 kg)
  • Size:4.8 x 3.2 x 1.5 in (122 x 81 x 38 mm)
  • Approvals:CE, UKCA, RoHS
  • Compatible audio formats: MP3 (32-320kbps), WAV (8 or 16bit only)
  • Onboard memory: 32 GB
  • Filename max length (MP3/WAV): 12 characters
  • Filename max length (show file): 11 characters
  • Trigger Type: auto, toggle, N/O or N/C
  • Terminal Block output: 12 VDC, 100 mA

What's Included

  • DMX-RT4
  • DMX-RT4
  • External power supply
  • Quick Reference Guide
