Discontinued Since 2023

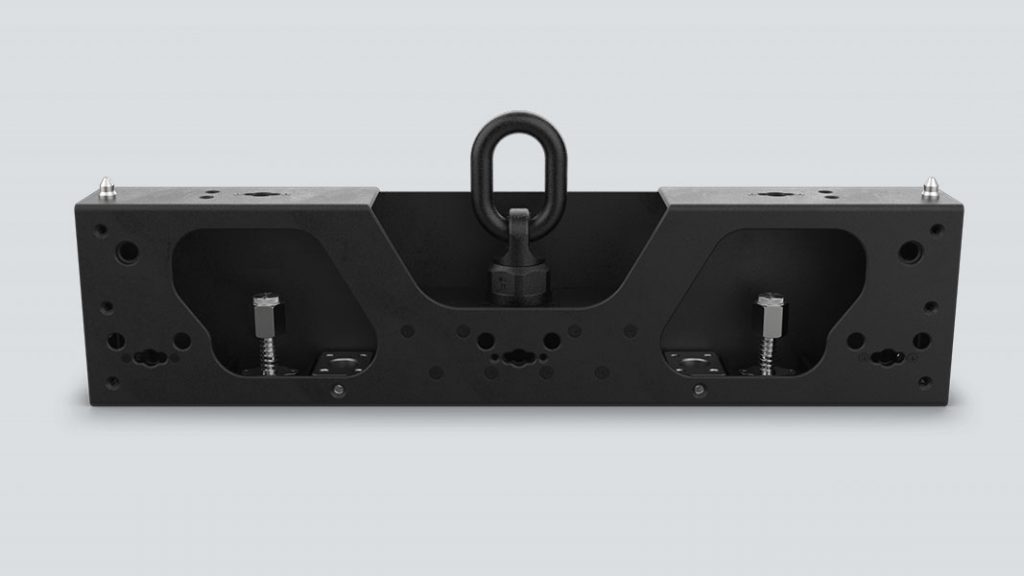

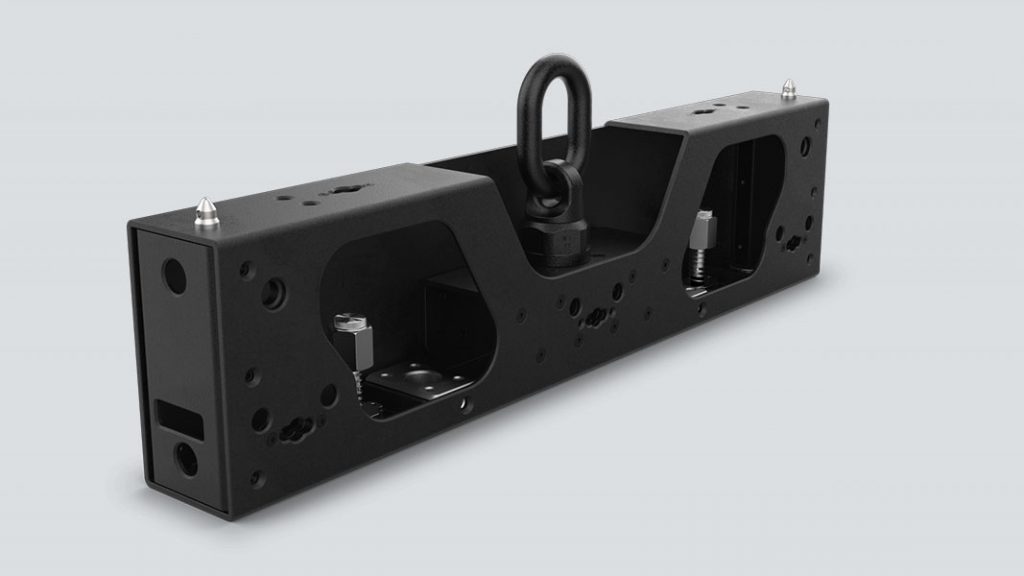

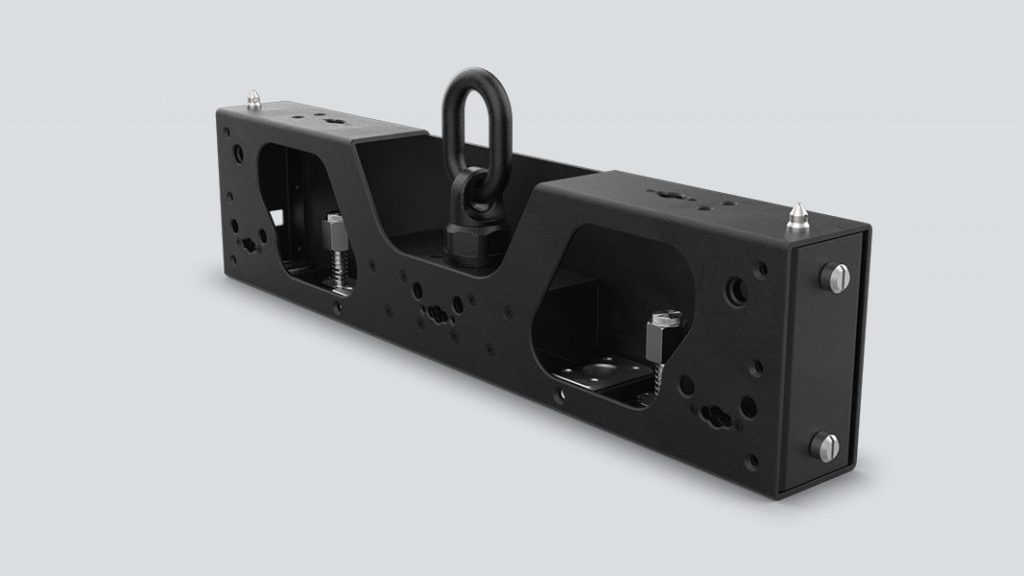

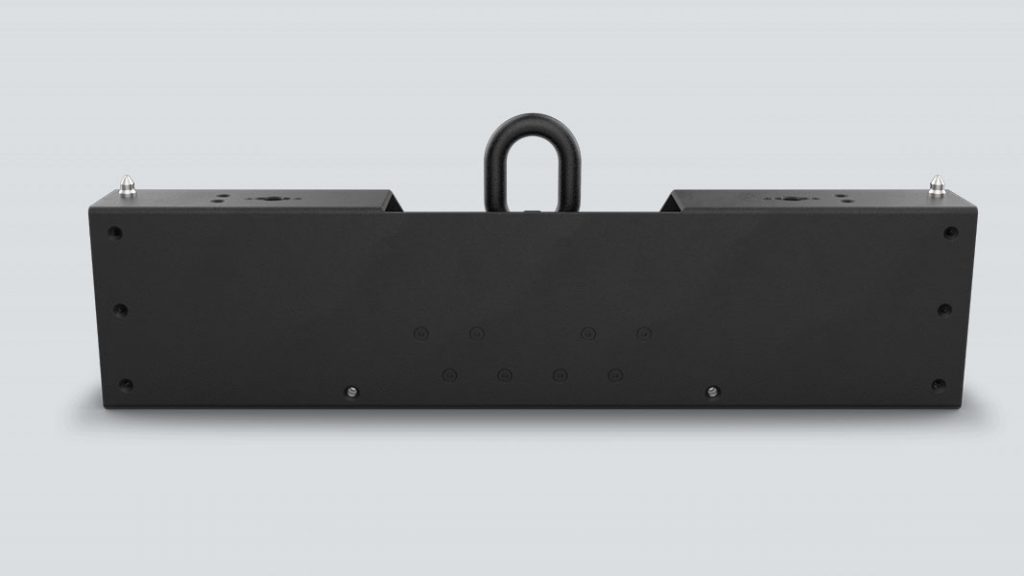

DRB-F50CM and the DRB-F100CM are newly designed rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the new GROUNDSUPPORT2KIT.


  • F-series Dual Function Rig Bar, used to hang video panels vertically or horizontally

  • Works for overhead hanging, as well as ground support/stacking applications

  • Works with CHAUVET F-series video panels (F4, F3, F2, F5IP, F4IP, VIVID4)

  • Hoist Rings fit standard rigging hardware for overhead hanging (1/2″ and 5/8″ shackles)

  • Magnetic alignment hardware between other dual function F-Series Rig Bars ensures correct alignment of screen structure


  • Weight:12 lb (5.5 kg)
  • Dimensions:19.67 x 2.36 x 4.72 in (499.8 x 60 x 120 mm)
  • Approvals:CE
  • Load Capacity (Hanging): 800 lb (363 kg)
  • Load Capacity (Stacking): 1,950 lb (885 kg)
  • Recommended Shackle Sizes: 1/2", 5/8"

What's Included

  • DRB-F50CM
  • 1pc F-series Dual Function Rig Bar-50 cm (DRB-F50CM)
