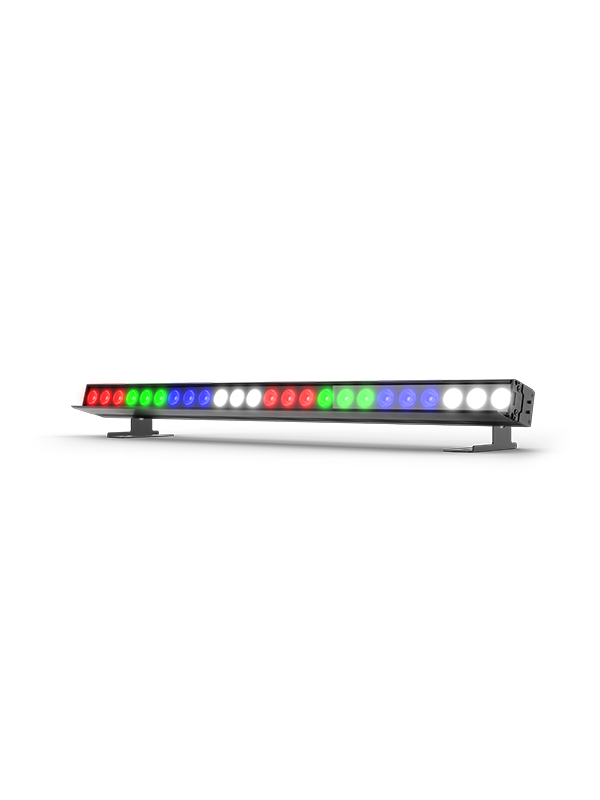

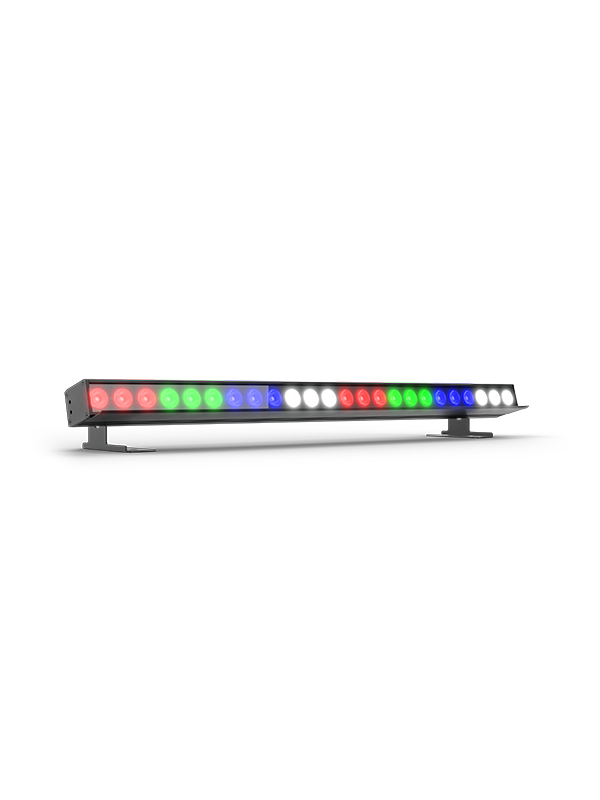

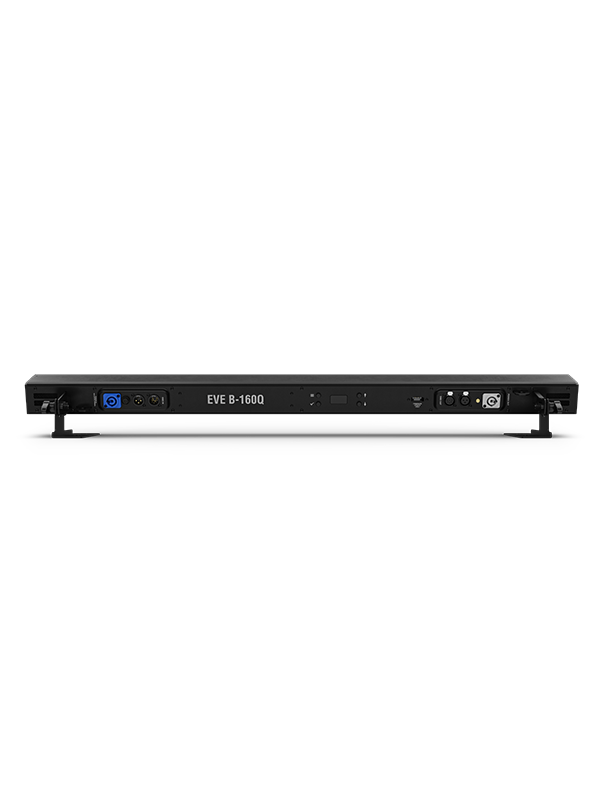

EVE B-160Q
Put color in motion across 8 zones of control, pick the perfect warm or cool white from color temperature presets, or mix custom colors with this versatile full-color RGBW LED batten designed to consistently match the colors of the EVE range of fresnels, ellipsoidals and PARs.
Highlights
Full-color linear batten designed for mobile and installation applications
Up to 8 controllable zones allow for dynamic chase effects
Pre-set color temperature ranges eliminate the need for manual color blending
Flicker-free operation suitable for on-camera use
D-Fi USB compatibility for wireless master/slave or DMX control
PowerCON®-compatible power input/output connections for power linking
Specifications
- DMX Channels:3, 4, 11, or 39
- DMX Connectors:3- and 5-pin XLR
- Light Source:24 LEDs (quad-color RGBW) 6.5W, (3.2A) 50,000 hours life expectancy
- Strobe Rate:0 to 20 Hz
- Beam Angle:15°
- Field Angle:30°
- Illuminance:8,300 lux @ 2 m
- Lumens:3,909
- Power Linking:7 units @ 120 V; 11 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:105 W, 1.6 A @ 120 V, 60 Hz
- Power and Current:102 W, 1.0 A @ 230 V, 50 Hz
- Weight:10.4 lb (4.7 kg)
- Size:39.4 x 5.9 x 7.6 in (1000 x 151 x 194 mm)
- Approvals:CE, MET, RoHS
- Beam Angle (w/ filter): 24°
- Field Angle (w/ filter): 52°
- Cable Length: 5 ft (1.524 m)
What's Included
- EVE B-160Q
- EVE B-160Q
- Power cord
- Quick Reference Guide
