New

EVE E-50Z

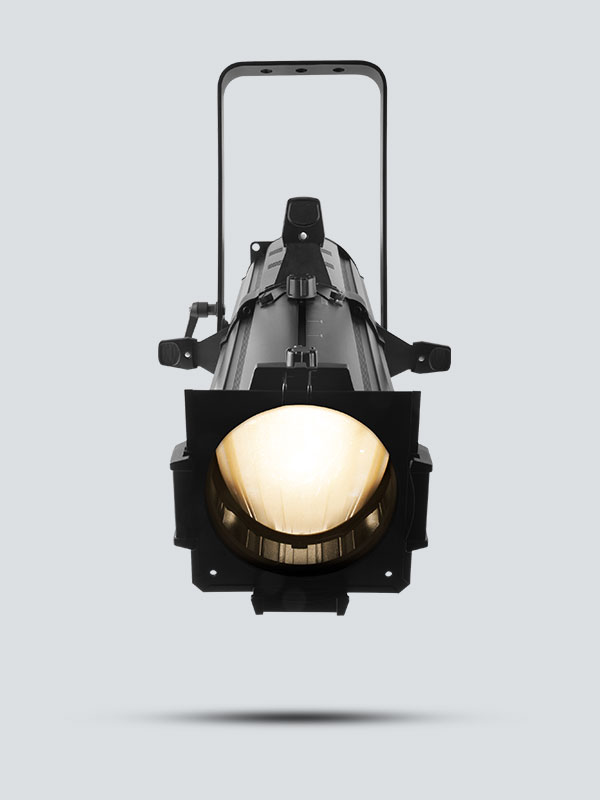

EVE E-50Z is an LED ellipsoidal that shines a hard-edged, warm white spot and features D-Fi™ USB compatibility for wireless Master/Slave or DMX control.  Manual zoom gives you the flexibility to project from any distance and its framing shutters let you easily alter and control the projected beam.  EVE E-50Z includes holders for glass and steel gobos as well as a gel frame. You can operate EVE E-50Z in standalone mode eliminating the need for DMX control and you can save time running extension cords by power linking multiple units.

Highlights

  • LED Ellipsoidal shines a hard-edged, warm white spot in any direction

  • Easily highlight areas by altering the projected beam with framing shutters

  • Flexibility to project from any distance using the manual zoom

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

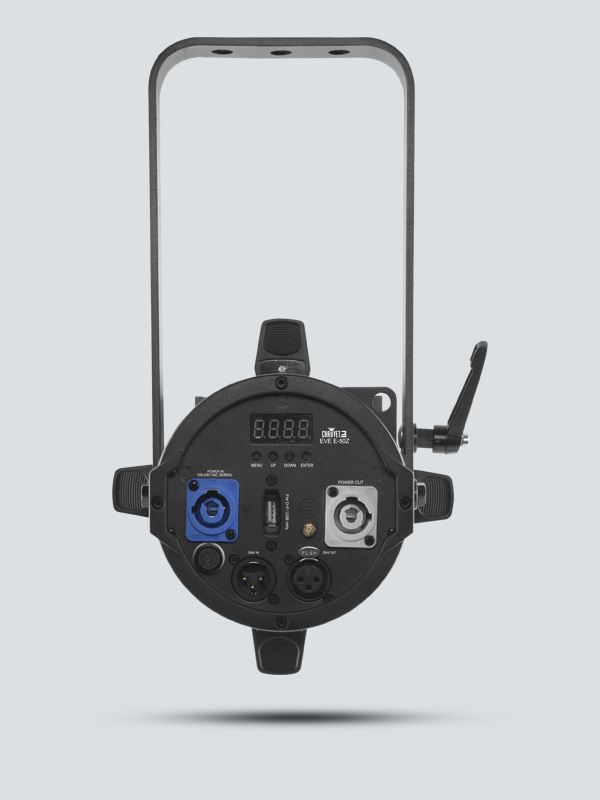

  • powerCON®-compatible power input/output connections for power linking

  • Flicker-free operation suitable for on-camera use

  • Includes holders for glass and steel gobos and a gel frame

  • Save time running extension cords by power linking multiple units

  • Eliminate the need for DMX control with standalone operation

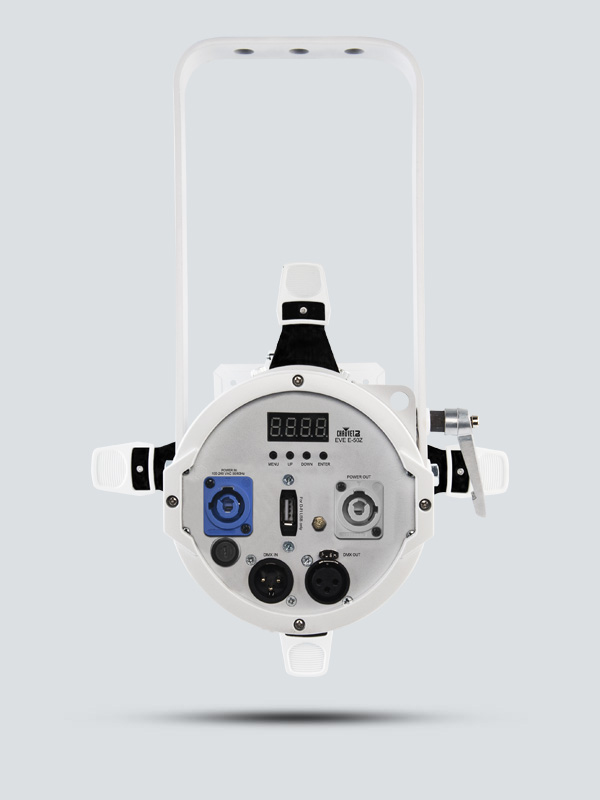

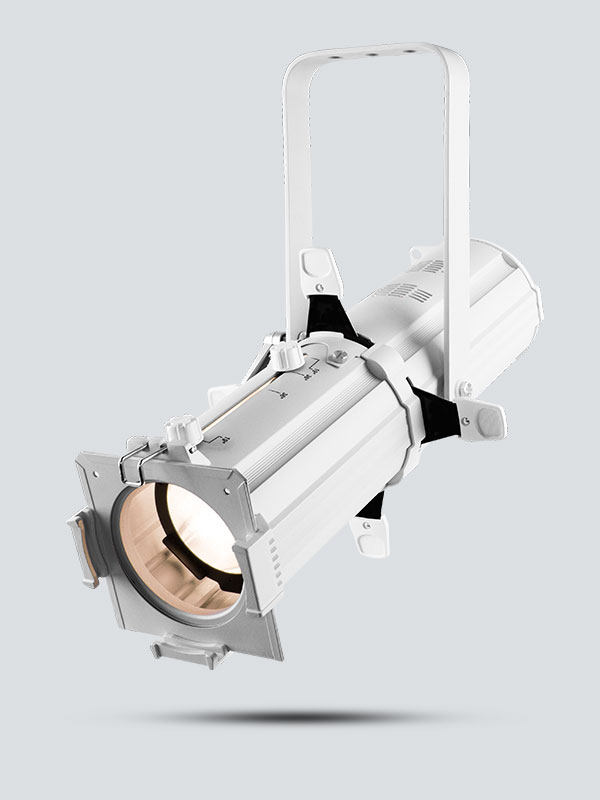

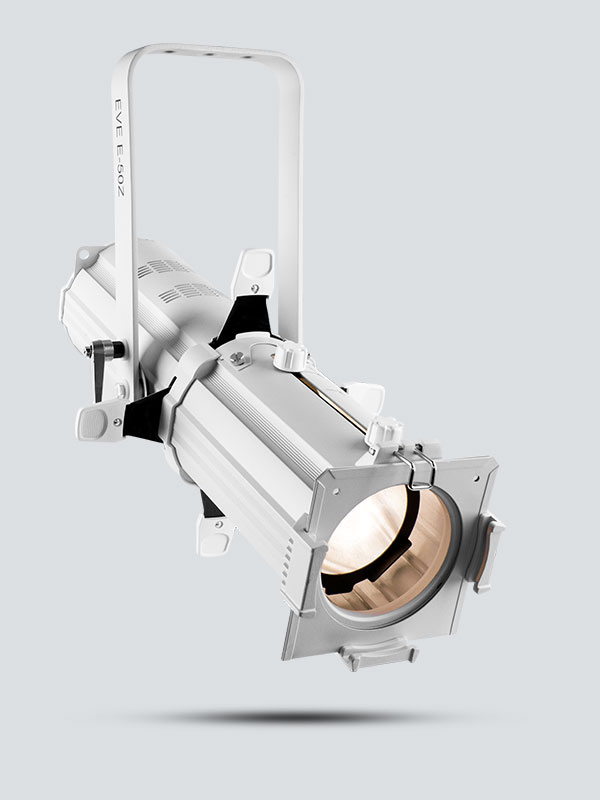

  • Available in black or white

Specifications

  • DMX Channels: 1 or 3
  • DMX Connectors: 3-pin XLR
  • Light Source: 1 LED (warm white) 50 W, (1.3 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 29 Hz
  • PWM Frequency: 1.2 kHz
  • Illuminance: (20°): 7,910 lux @ 2 m
    (39°): 2,710 lux @ 2 m
  • Power Linking: 16 units @ 120 V; 26 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 59 W, 0.5 A @ 120 V, 60 Hz
    63 W, 0.3 A @ 230 V, 50 Hz
  • Gobo Size: D (53.3 mm outside, 43 mm image, 2mm max thickness)
  • Zoom Angle: (manual): 20° to 39
  • Weight: 9.2 lb (4.2 kg)
  • Size: 18.9 x 6.2 x 15 in (480 x 157 x 381 mm)
  • Approvals: CE
  • Color Temperature: 3500 K
  • Gel Frame Size: 5.5 in
  • Optional Controllers: D-Fi USB

What's Included

  • EVE E-50Z
  • Steel and glass gobo holders
  • Gel frame
  • Power cord
  • Hanging bracket with mounting hardware
