Discontinued Since 2023

EVE P-130 RGB

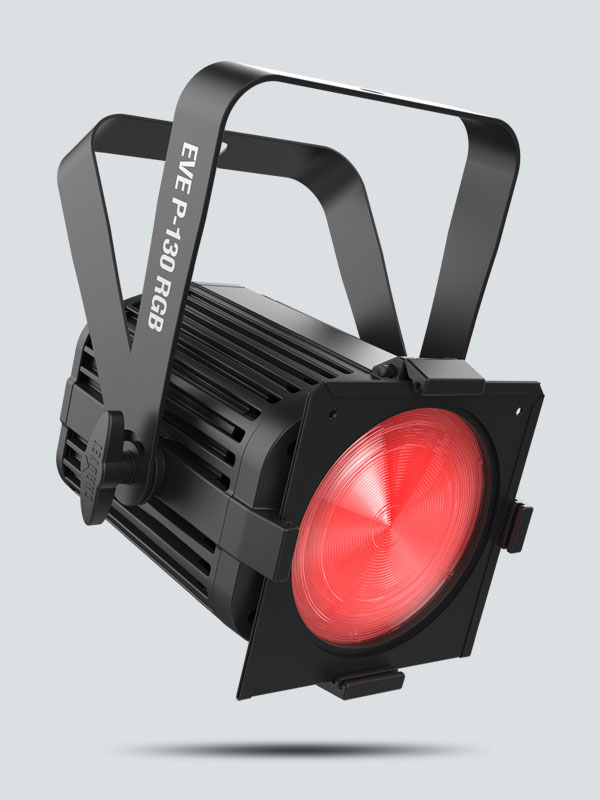

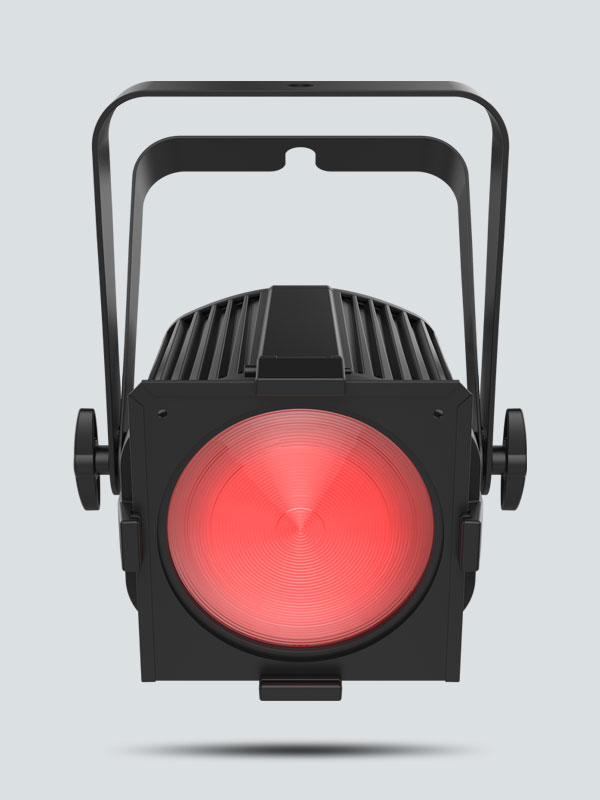

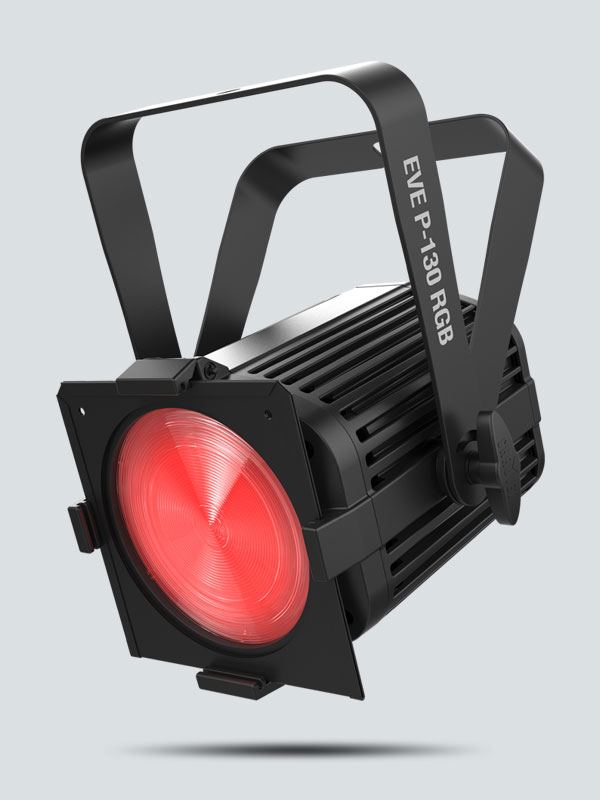

EVE P-130 RGB is a robust RGB wash light designed for mobile lighting entertainers. Interchangeable magnetic lenses are included to alter the beam to desired angles. EVE P-130 RGB has a sturdy cast aluminum housing that provides extra strength without added weight. D-Fi USB compatibility is also onboard providing the option for wireless master/slave or DMX control. Its fanless design ensures 100% silent operation and the unit’s high-frequency LED dimming offers flicker-free operation perfect for video use. EVE P-130 RGB has a built-in gel frame holder and 6¼-inch accessory slot to hold barn doors. Flexible control connection options are onboard with both 3- and 5-pin DMX connectors. PowerCON®-compatible power input/output connections allow secure power linking.

VIP Rewards Value: 540 Points



Highlights

  • Robust wash light designed for mobile lighting professionals

  • Included interchangeable magnetic lenses alter the beam to desired angles

  • Built-in gel frame holder and 6¼-inch accessory slot to hold barn doors

  • powerCON®-compatible power input/output connections for power linking

  • Fanless design ensures 100% silent operation

  • Flexible control options with onboard 3- and 5-pin DMX connectors

  • Flicker-free on video due to the high-frequency LED dimming

  • D-Fi USB compatibility for wireless master/slave or DMX control

  • Cast aluminum housing provides extra strength without the weight

  • Fits best in the CHS-40 VIP gear bag

Specifications

  • DMX Channels:3 or 9
  • DMX Connectors:3- and 5-pin XLR
  • Light Source:40 LEDs (13 red, 13 green, 14 blue) 130 W total, (2.5 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 34 Hz
  • PWM Frequency:2 kHz
  • Beam Angle:25°, 35° or 45°
  • Field Angle:45°, 55° or 65°
  • Illuminance:(25°): 2190 lux @ 2 m (lens 3 installed)
    (35°): 1100 lux @ 2 m (no lens installed)
    (45°): 727 lux @ 2 m (lens 2 installed)
    (25°): 622 lux @ 5 m (lens 3 installed)
    (35°): 322 lux @ 5 m (no lens installed)
    (45°): 194 lux @ 5 m (lens 2 installed)
  • Lumens:4,035
  • Power Linking:8 units @ 120 V; 16 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:122 W, 1.2 A @ 120 V, 60 Hz
    111 W, 0.5 A @ 230 V, 50 Hz
  • Weight:7.6 lbs (3.5 kg)
  • Size:8.6 x 9.65 x 12 in (220 x 245 x 305 mm)
  • Approvals:CE, MET
  • Optional Controllers: D-Fi USB
  • Accessory Holder/Gel Frame Size: 6.25 in (159 mm)

What's Included

  • EVE P-130 RGB
  • Eve P-130 RGB
  • Lens 2 and lens 3
  • Gel frame
  • Power cord
  • Warranty card
  • Quick Reference Guide
