EVE P-150 UV

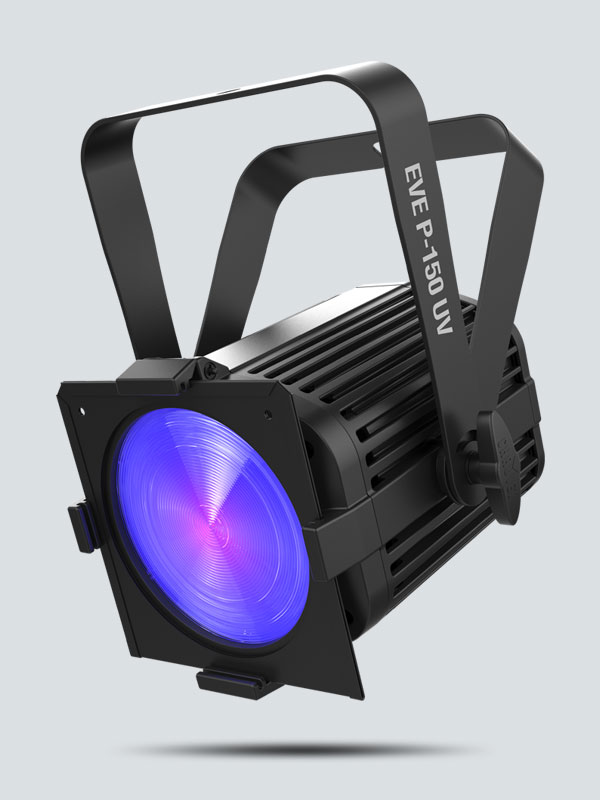

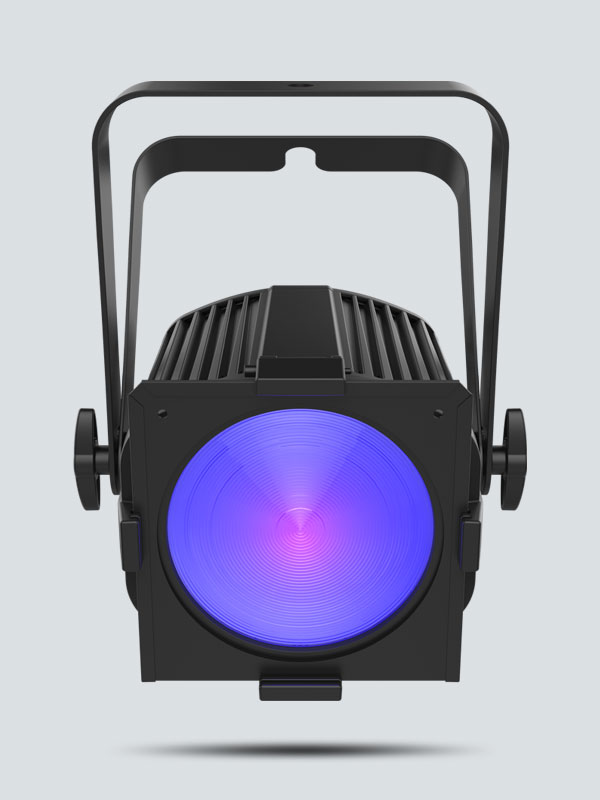

EVE P-150 UV is a brawny blacklight cannon fitted with 40 UV LEDs emitting 150 watts of blacklight power. The unit is designed without a fan and its silent operation combined with its flicker-free output make it ideal for video use. EVE P-150 UV is D-Fi USB compatible giving users the option to control the light wirelessly in master/slave mode or wireless DMX control. 25° and 45° magnetic lenses to adjust the beam are included along with a gel frame holder and accessory slot for optional barn doors. PowerCON compatible power input/output connections are on board for secure power linking. EVE P-150 is also fitted with both 3-pin and 5-pin DMX connectors.

Highlights

  • Robust blacklight cannon designed for mobile lighting professionals

  • Included interchangeable magnetic lenses alter the beam to desired angles

  • Built-in gel frame holder and 6¼-inch accessory slot to hold barn doors

  • powerCON®-compatible power input/output connections for power linking

  • Fanless design ensures 100% silent operation

  • Flexible control options with onboard 3- and 5-pin DMX connectors

  • Flicker-free on video due to the high-frequency LED dimming

  • D-Fi USB compatibility for wireless master/slave or DMX control

  • Cast aluminum housing provides extra strength without the weight

  • Fits best in the CHS-40 VIP gear bag

Specifications

  • DMX Channels: 1 or 5
  • DMX Connectors: 3- and 5-pin XLR
  • Light Source: 40 LEDs (UV) 150 W total, (2 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 34 Hz
  • PWM Frequency: 2 kHz
  • Coverage Angle: (narrow lens): 25°
    (no lens): 35°
    (wide lens): 45°
  • Power Linking: 8 units @ 120 V; 16 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 111 W, 0.9 A @ 120 V, 60 Hz
    111 W, 0.5 A @ 230 V, 50 Hz
  • Weight: 7.6 lbs (3.5 kg)
  • Size: 8.6 x 9.65 x 12 in (220 x 245 x 305 mm)
  • Approvals: CE, MET
  • Wavelength: 395 nm
  • Optional Controllers: D-Fi USB

What's Included

  • EVE P-150 UV
  • Eve P-150 UV
  • 25° and 45° lenses
  • Gel frame
  • Power cord
