Discontinued Since 2022

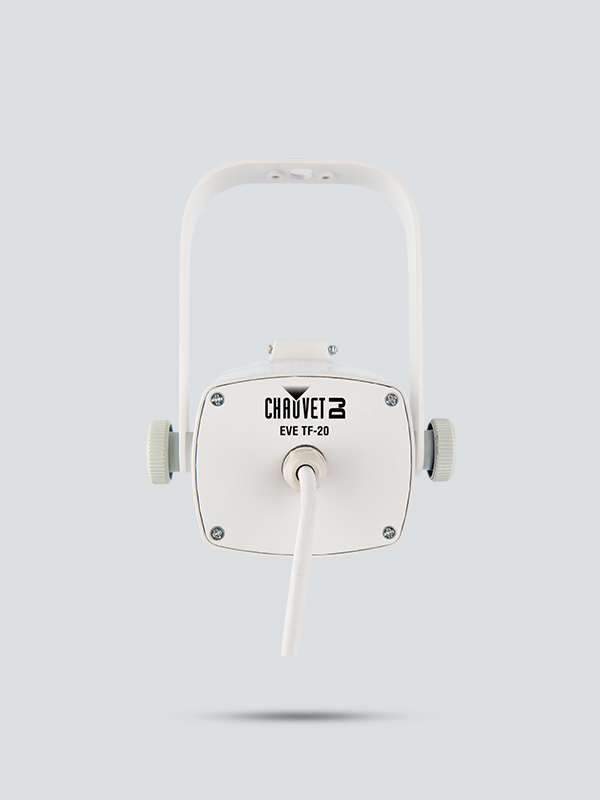

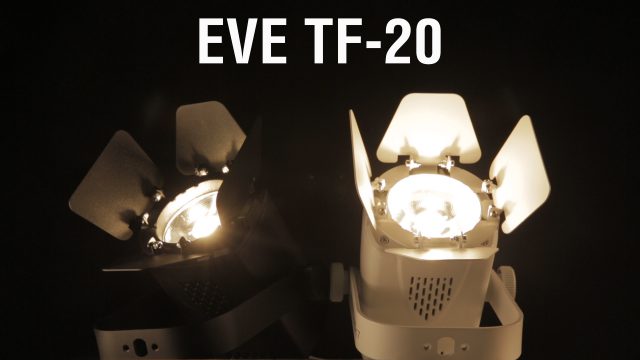

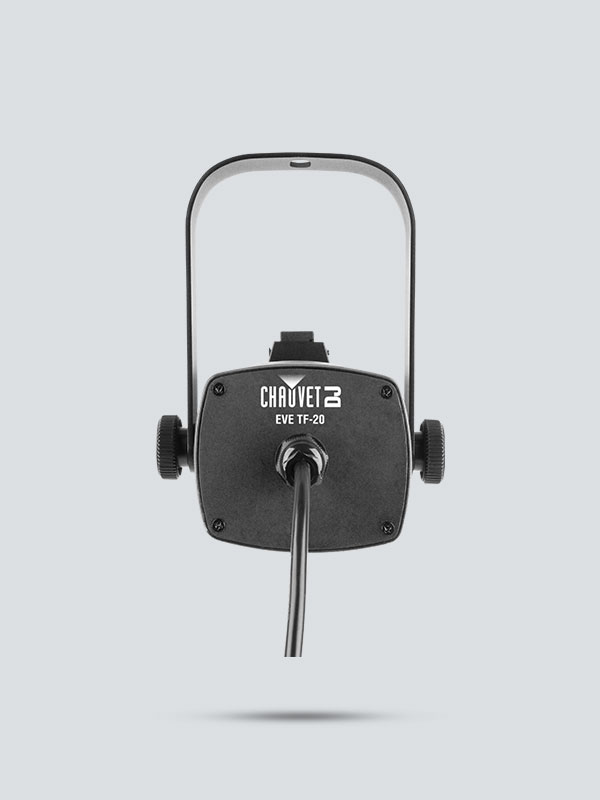

EVE TF-20

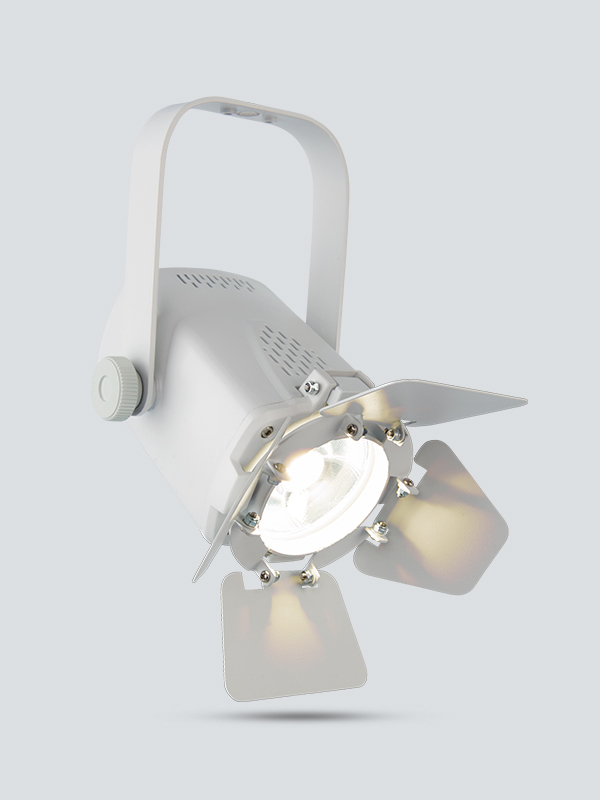

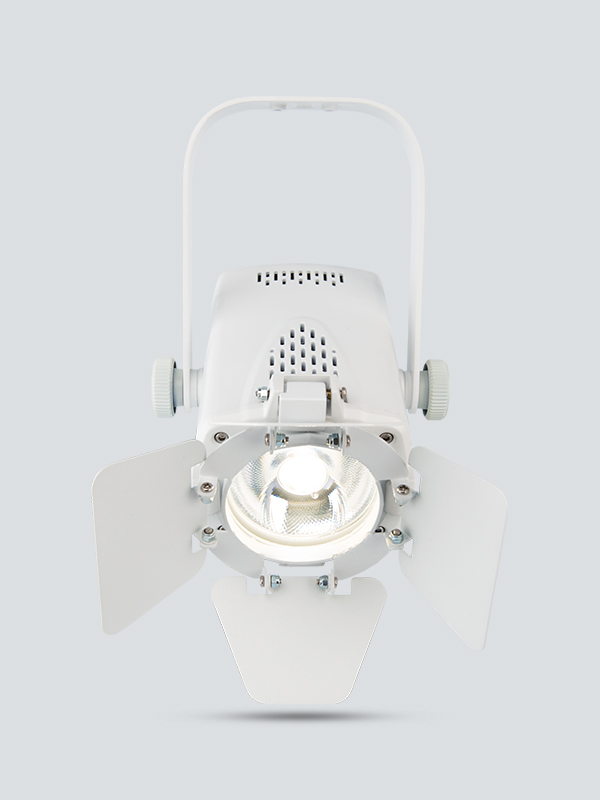

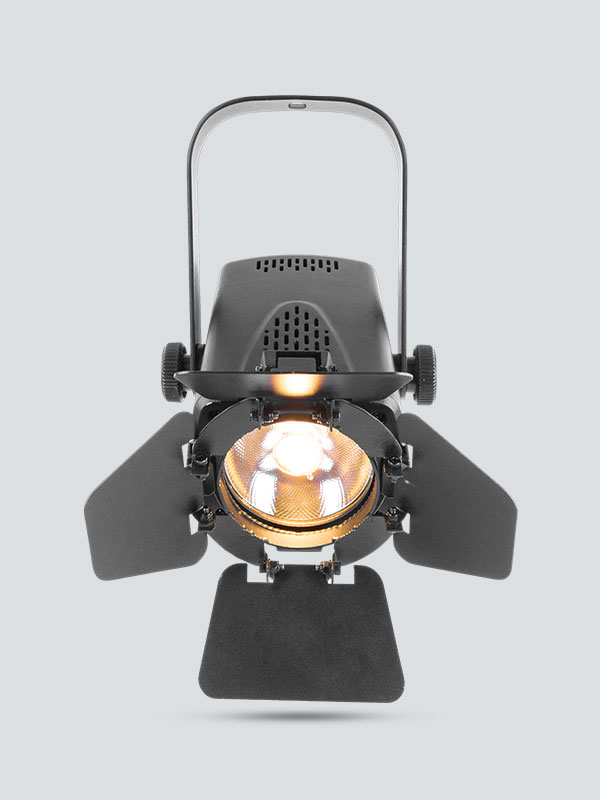

EVE TF-20 is a compact, energy efficient, soft edge LED accent luminaire that can function as a regular PAR can, while its classic Fresnel style emulates stage and theatrical lighting. Conveniently included barn doors block light from unwanted areas, letting you focus on a particular space or object. Thanks to its CCR (Constant Current Reduction) LED dimming, it works seamlessly with conventional dimmers, and is flicker-free in filmed productions. MET certified, it is designed for mobile and installation applications and it is equally suited for new and retrofit installations via the included track adaptor as it is for mobile use right out of the box using its standard power cord. White housing not available in European Markets.

Highlights

  • Compact, energy efficient, soft edge LED accent luminaire

  • Constant Current Reduction (CCR) dimming works with conventional dimmers

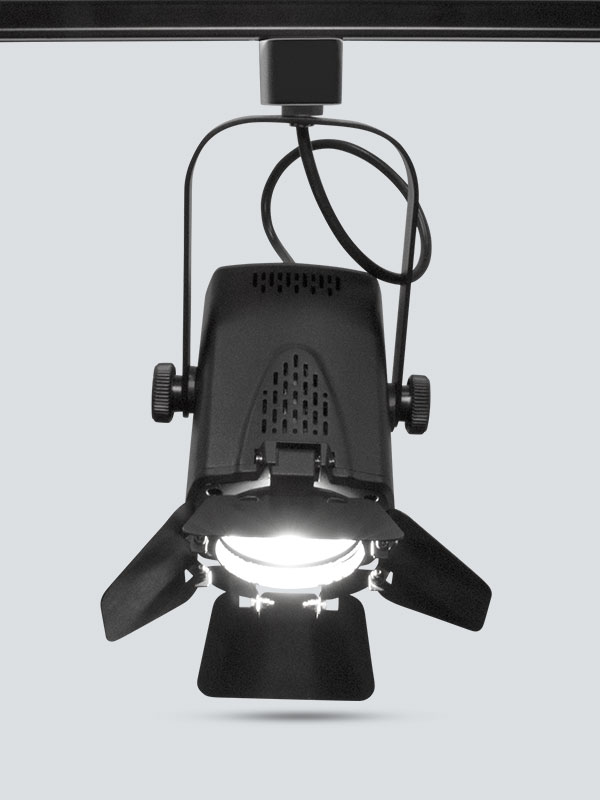

  • Track adaptor included fits most single and dual circuit tracks

  • Classic Fresnel style gives the feeling of stage and theatrical lighting

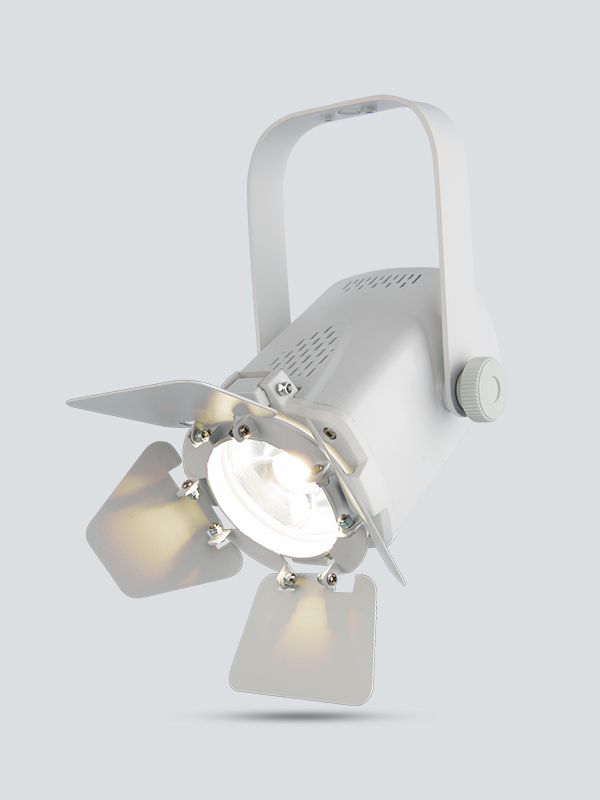

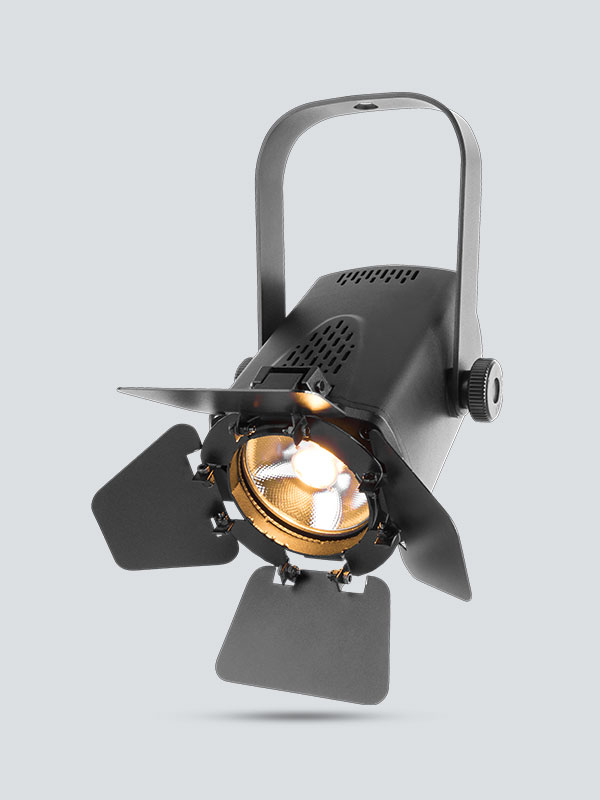

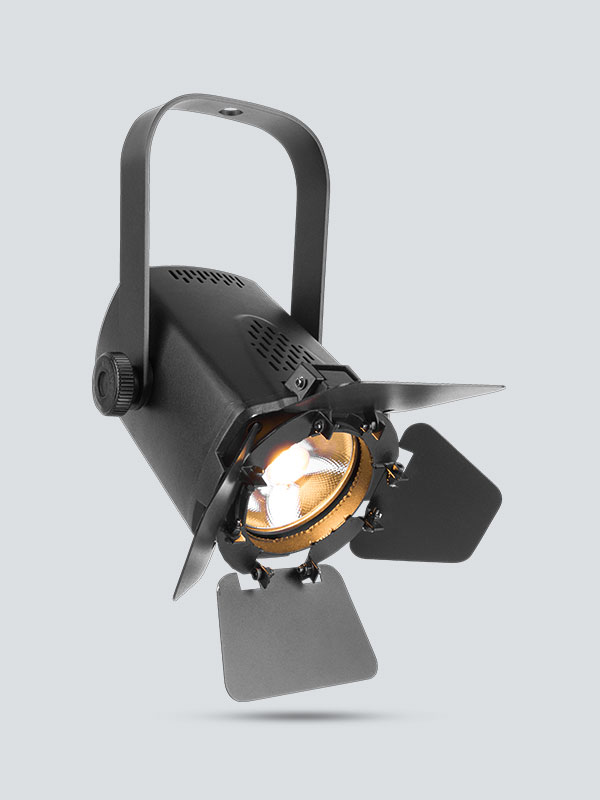

  • Included barn doors block excess light from stage and unwanted areas

  • Achieve flicker-free video operation with CCR LED dimming

  • Standard power cord attached for mobile use right out of the box

  • MET certified, perfect for retrofitting and new installations

Specifications

  • Light Source:1 COB LED (warm white) 20 W, (0.5 A), 50,000 hours life expectancy
  • Beam Angle:24°
  • Field Angle:40°
  • Illuminance:1506 lux @ 2 m
  • Lumens:1,658
  • Input Voltage:85 to 120 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:24W, 0.3 A @ 120 V, 50/60 Hz
  • Weight:2.6 lbs (1.2 kg)
  • Size:6 x 5.5 x 7.25 in (153.5 x 140 x 184 mm)
  • Approvals:CE, MET
  • Color Temperature: 2700 K
  • CRI: 91
  • Compatible Track: Type H

What's Included

  • EVE TF-20
  • EVE TF - 20
  • Track Adaptor
  • Barn doors
  • Gel frame
