EZGobo

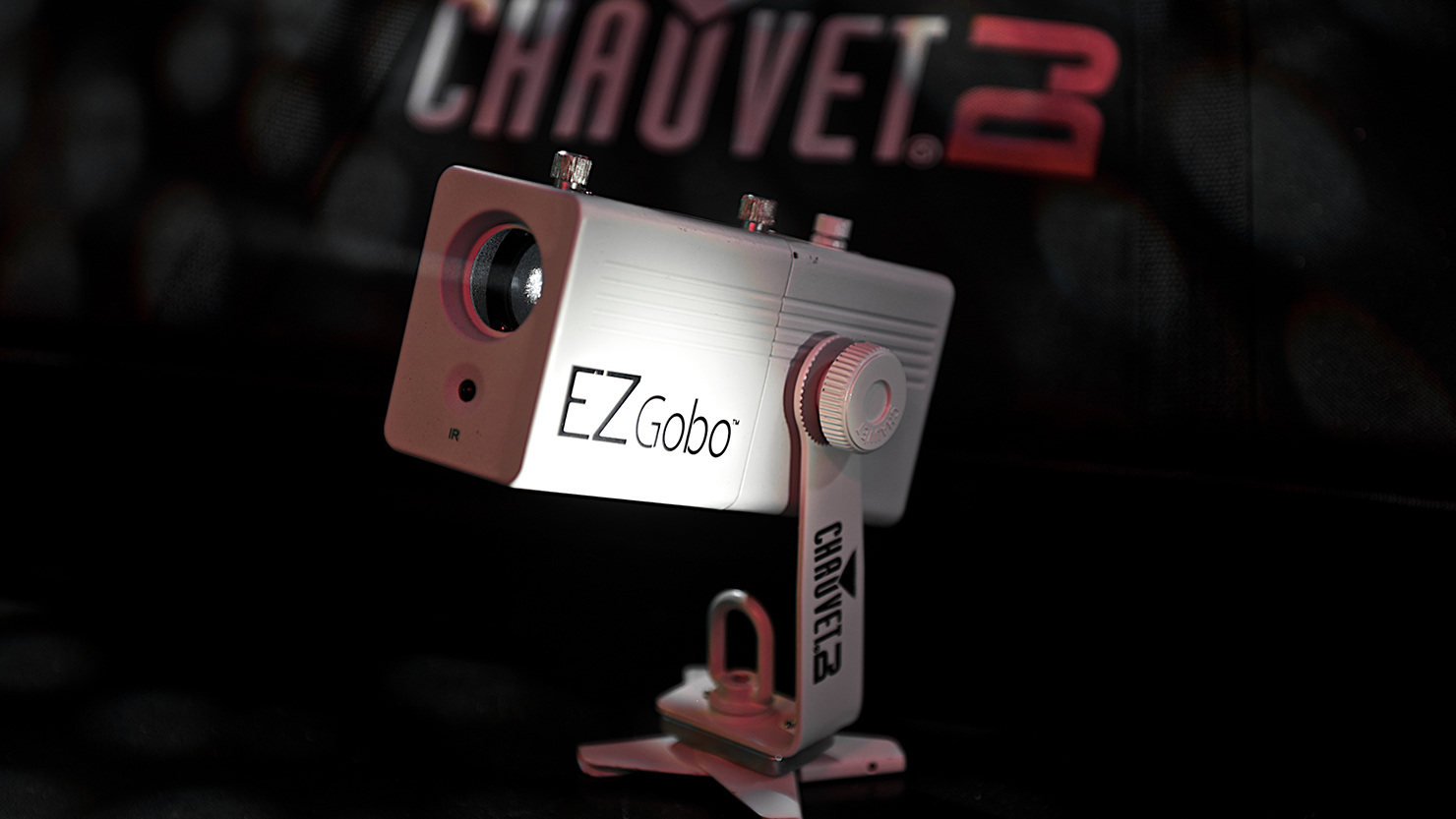

EZGobo is a battery-powered LED gobo projector, that can project a custom image anywhere. Its magnetic base affixes to most metal surfaces, eliminating the need for clamps, and the scissor clip with eye loop easily attaches to drop ceiling supports, for quick setup and cable management. Wireless on/off operation is available with the included IRC-6 remote, and you can easily print your own custom gobos on transparency film.

Highlights

  • Battery-powered LED gobo projector projects a custom image anywhere

  • Manual zoom for short-throw or long-throw applications

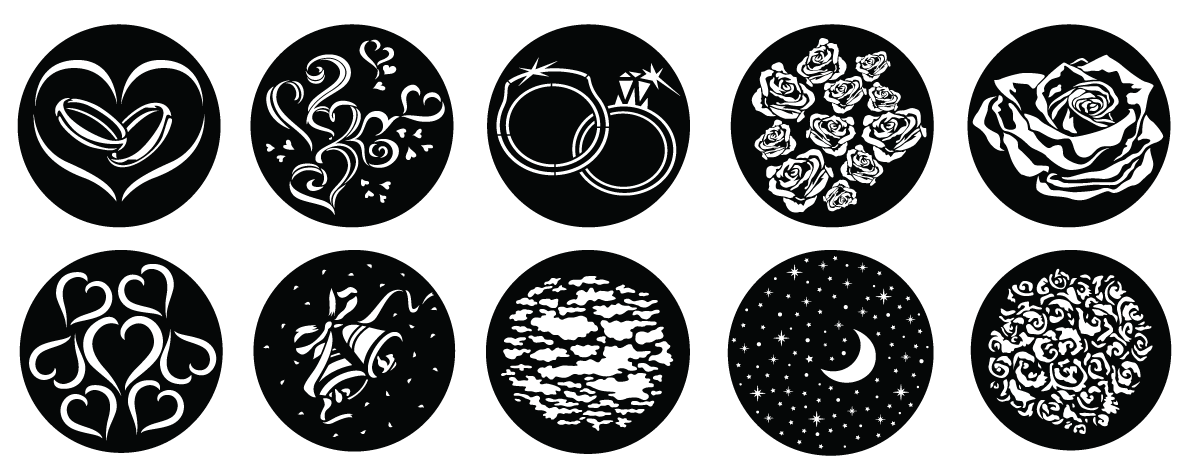

  • Includes 10 “Wedding-Ready” gobos perfect for adding romantic accents

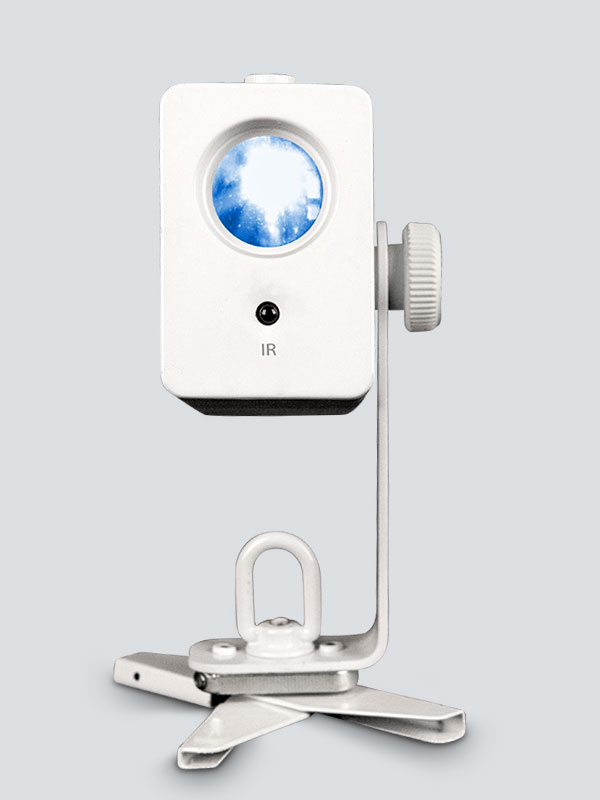

  • Magnetic base affixes to most metal surfaces, eliminating the need for clamps

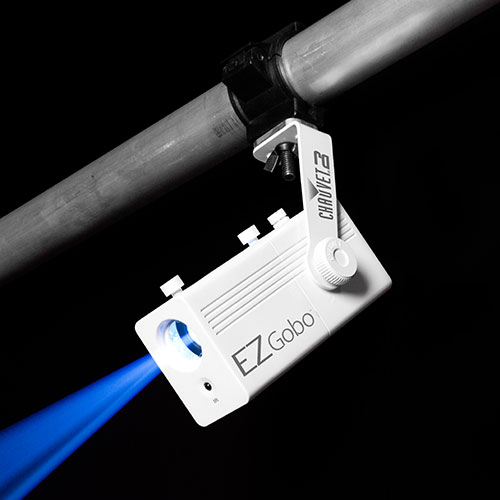

  • Scissor clip with eye loop easily attaches to drop ceiling supports, for quick setup and cable management

  • Print your own custom gobos on transparency film

  • Wireless on/off and dimming operation available with included IRC-6 remote

Specifications

  • Gobos: 10 (metal), interchangeable
  • Light Source: 1 LED (cool white) 10 W, (1.4 A), 50,000 hours life expectancy
  • PWM Frequency: 1.7 KHz
  • Maximum Run Time: up to 5 hours
  • Recharge Time: 4 hours
  • Illuminance: (16°) 669 lux @ 2 m
    (31°) 207 lux @ 2 m
  • Input Voltage: 8.4 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz)
  • Power and Current: 12 W, 0.2 A @ 120 V, 60 Hz
    11 W, 0.1 A @ 230 V, 50 Hz
  • Gobo Size: 25.8 mm outside, 18.6 mm image, 0.2 mm max thickness
  • Zoom Angle: 16° to 31°
  • Weight: 2.2 lb (1 kg)
  • Size: 6.5 x 4.3 x 6.7 in (167 x 110 x 170 mm)
  • Approvals: CE

What's Included

  • EZGobo
  • External power supply
  • Set of 10 wedding-ready gobos
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide

Downloads

Show & Tell

You’re the star! We want to see how you’re using CHAUVET DJ gear! Share your thoughts, experiences and photos of your events using this CHAUVET DJ product and find inspiration too!

  1. So versatile!

    Attachment  gobo0.jpg

    -Robert Scott

    We aren’t DJ’s but our book store is in a historic district with strict policies on installing exterior signs and lights, so we use our portable battery operated gobos and make our ownmessages as needed!

    Attachment  gobo0.jpg

    • -Silvia Haubae

      Smart usage of the gobos!
