New

EZLink Par Q4BT ILS

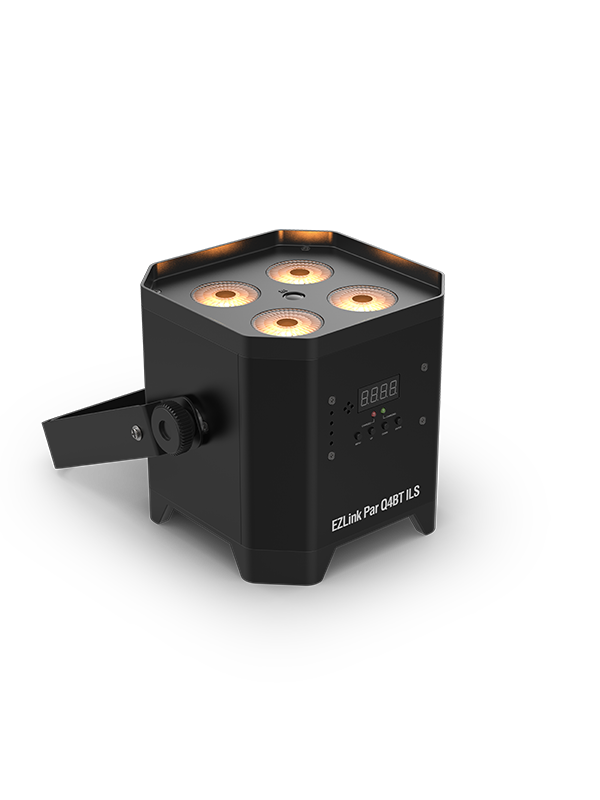

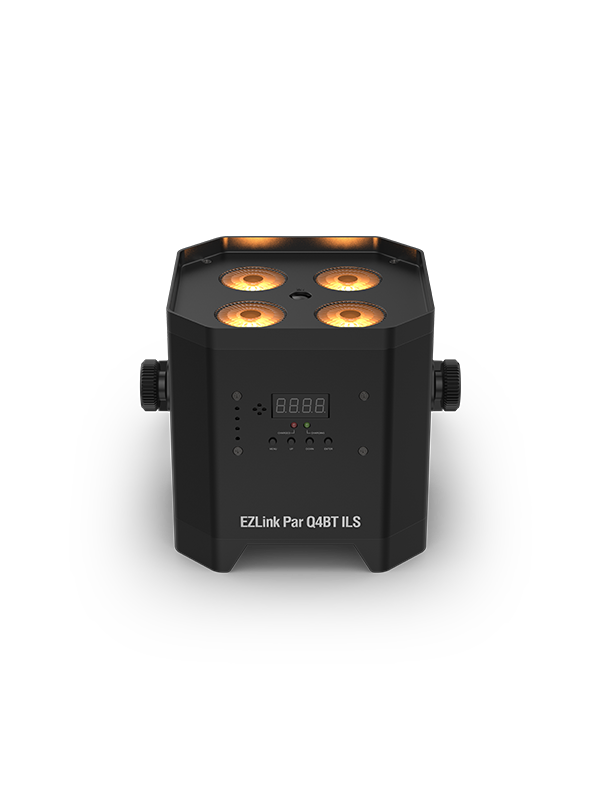

EZLink Par Q4BT ILS is a battery-operated, quad-color (RGBA) LED Par with built-in Bluetooth® wireless technology so you can control directly from a smart phone or tablet without any additional hardware. Cutting-edge ILS technology means this powerful par can be used with the ILS ecosystem which makes creating coordinated light shows across an unlimited number of different fixture types fast and easy. And the wireless options keep coming with the addition of D-Fi USB compatibility for wireless lead/follower or DMX control. Of course, convenient, wireless non-DMX control is possible using the IRC-6 remote. Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs and generate eye-catching effects with sound-activated and automated programs.

Highlights

  • 100% TRUE wireless, battery-operated, quad-color (RGBA) LED Par with built-in Bluetooth® wireless technology

  • ILS compatibility for use in the ILS ecosystem

  • D-Fi USB compatibility for wireless master/slave or DMX control

  • Control directly from a smart phone or tablet without any additional hardware

  • Convenient, wireless non-DMX control using the IRC-6 remote

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

  • Generate eye-catching effects with sound-activated and automated programs

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels:4 or 8
  • DMX Connectors:3-pin XLR
  • Max Unobstructed Distance:150 ft (45.7 m)
  • Light Source:4 LEDs (quad-color RGBA) 6 W, (3 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • PWM Frequency:1.59k Hz
  • Beam Angle:15°
  • Field Angle:34°
  • Maximum Run Time:
    All on: up to 8 hours
    Single color: up to 20 hours
  • Recharge Time:4 hours
  • Operating Frequency:2.4GHz
  • Illuminance:1829 lux @ 2 m
  • Power Linking:16 units @ 120 V; 29 units @ 230 V
  • Power and Current:
    35 W, 0.5 A @ 120 V, 60 Hz
    34 W, 0.3 A @ 230 V, 50 Hz
  • Weight:3.16 lb. (1.6 kg)
  • Size:5.7 x 5.7 x 7.2 in (145 x 145 x 183 mm)
  • Approvals:CE, UKCA, RoHS, FCC
  • Bracket Mounting Hole: M12
  • Optional Controllers: IRC6, BTAir
  • Bluetooth Version: 4.2

What's Included

  • EZLink Par Q4BT ILS
  • EZLink Par Q4BT ILS
  • Power cord
  • Quick Reference Guide
