Discontinued Since 2019

Festoon

Next Gen Product Available

Festoon 2 RGB

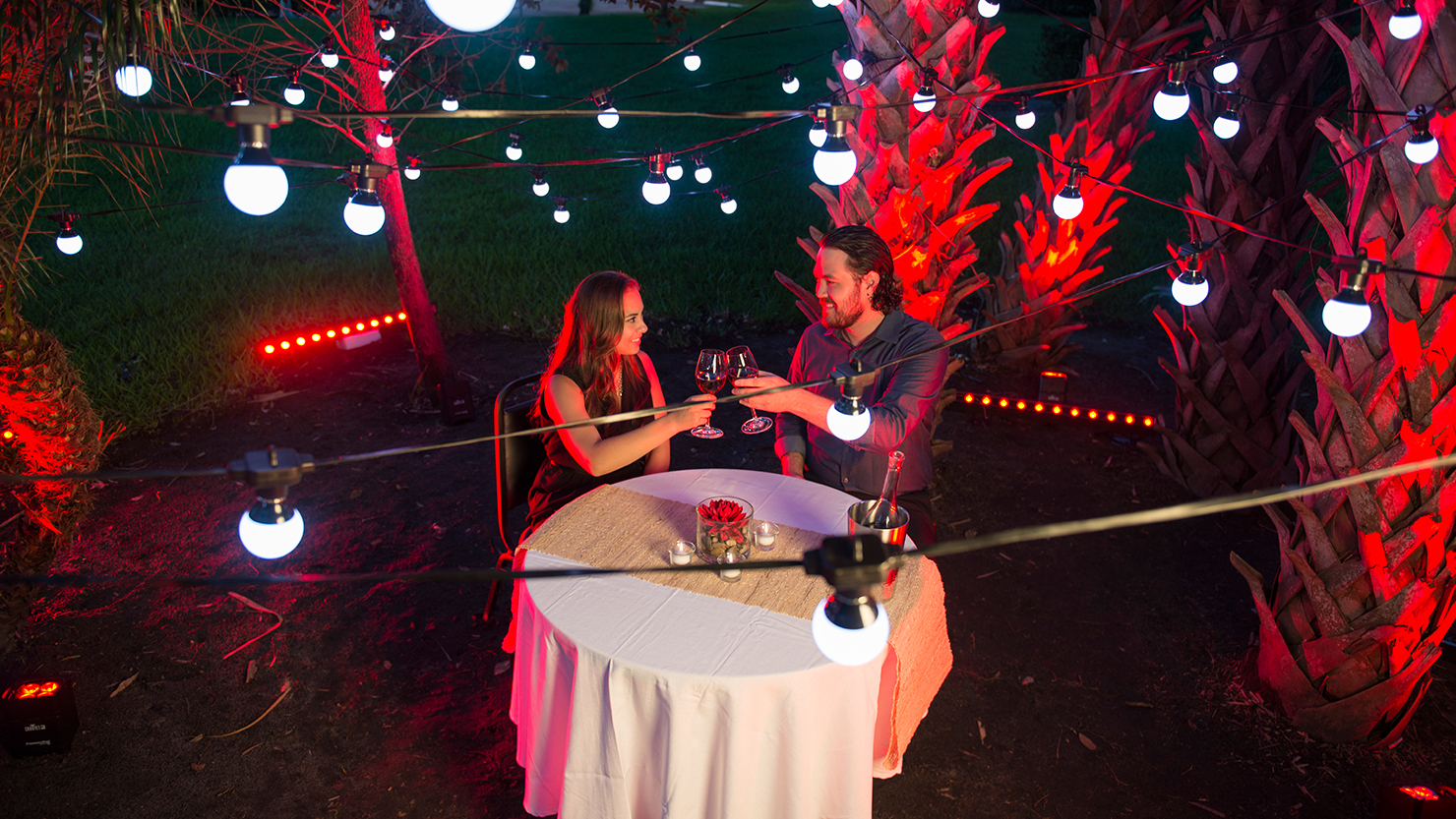

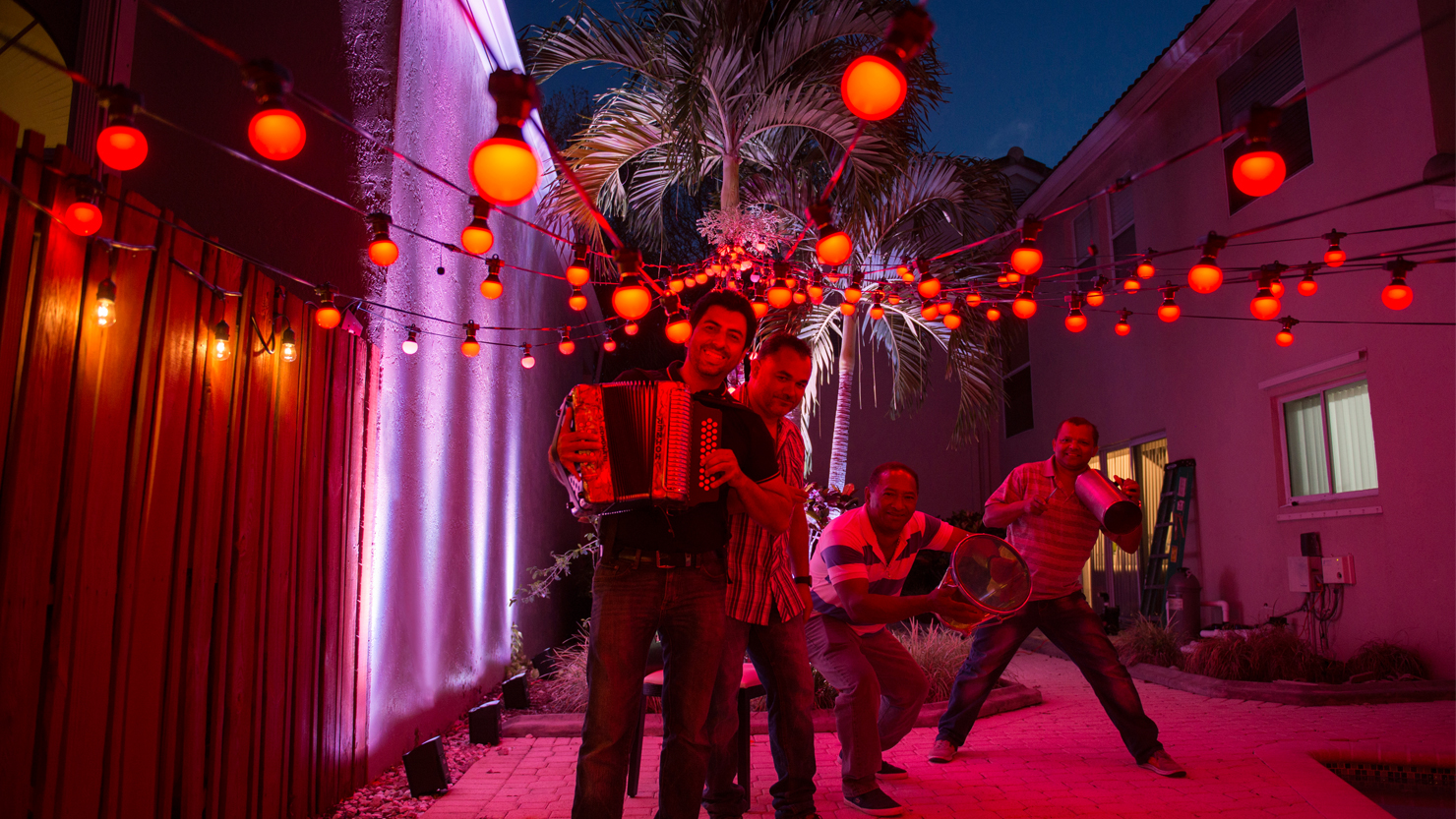

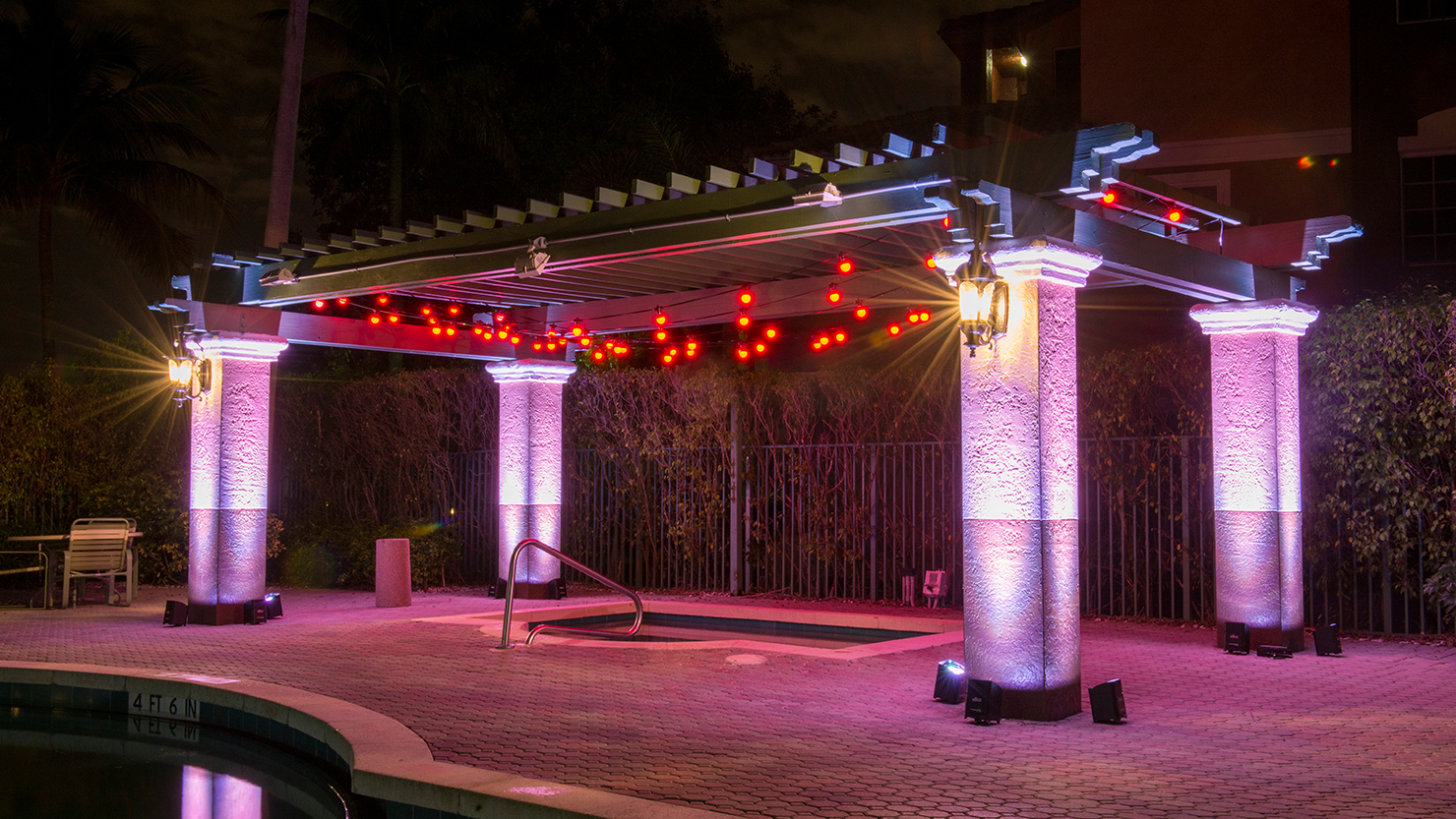

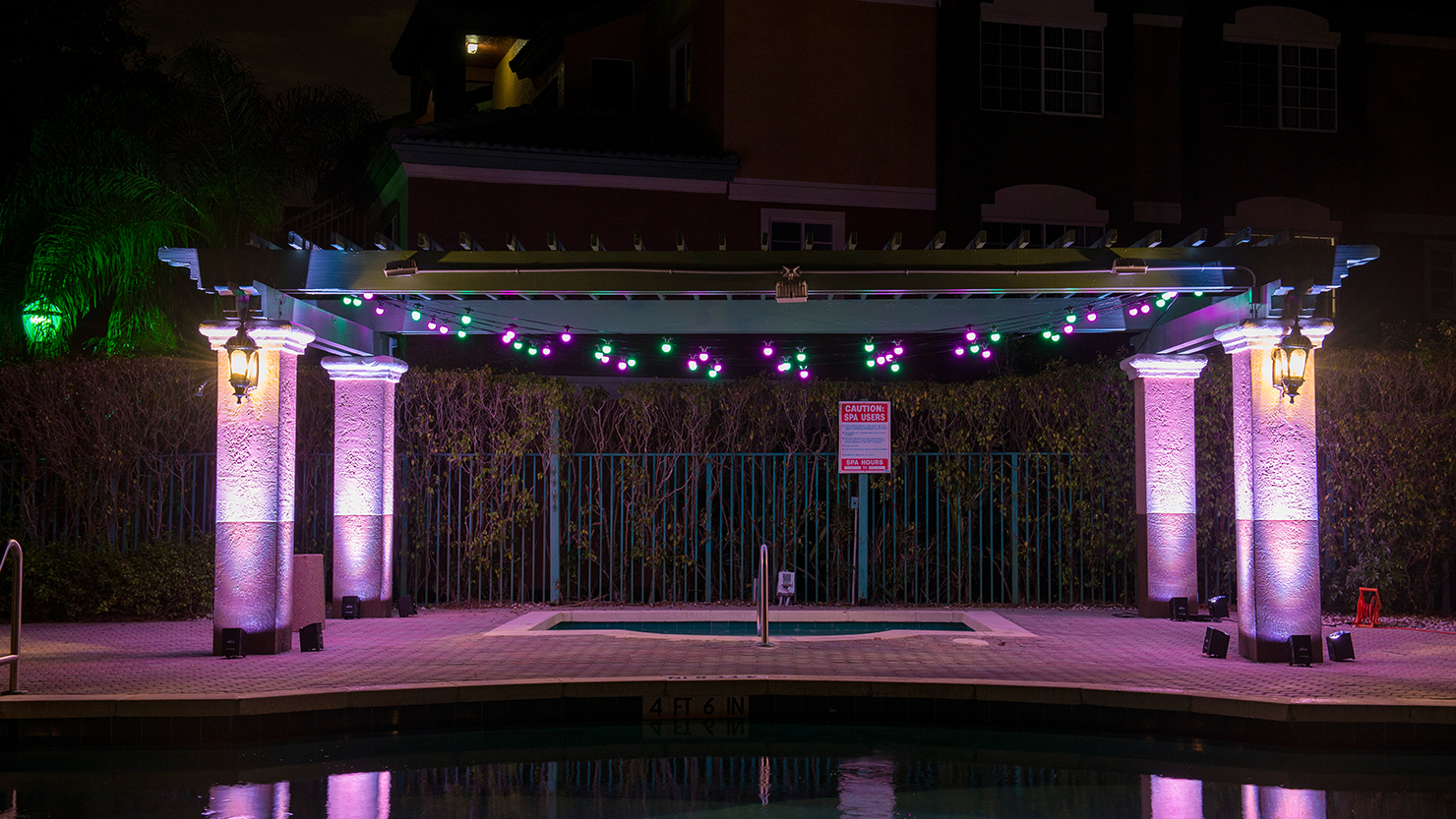

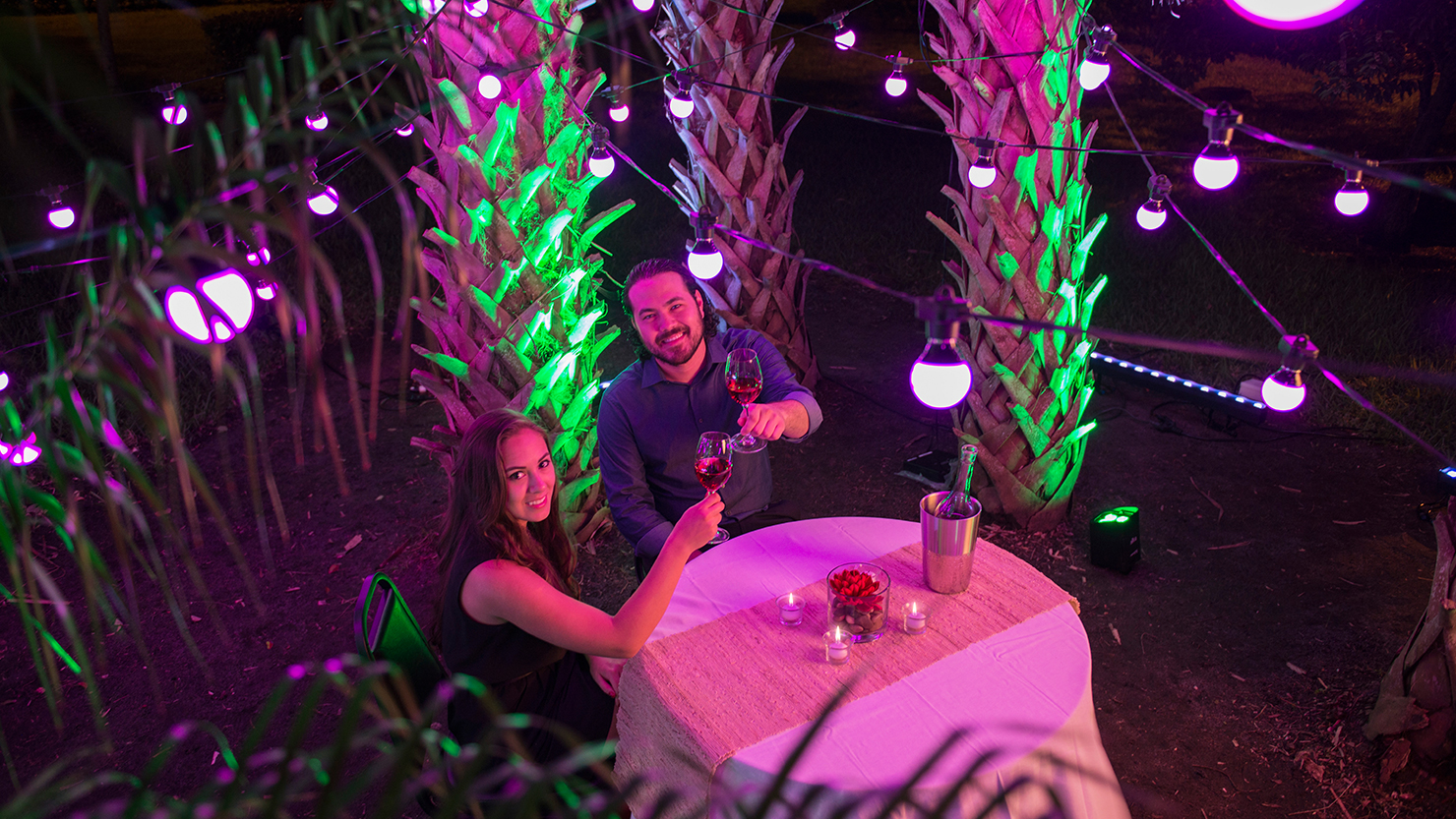

Festoon is a dynamic outdoor-rated party décor light featuring the vintage look and feel of standard party light strings, but is completely pixel-mappable for ultimate show and programming creativity. Built in automated programs also create complex looks in seconds. Festoon comes with a 15-meter strand of 20 LED bulbs and is expandable up to 3 strands per controller. The unit features D-Fi USB compatibility for wireless Master/Slave or DMX control. Non-DMX control is possible in Standalone mode from the digital display or optional IRC-6 remote. Eyelets are on every lamp holder and a variety of 3rd party décor options such as paper lanterns can be clipped to Festoon to increase deign flexibility. Fits best in the CHS-50 gear bag.

Highlights

  • Provides a vintage look and feel of standard party light strings

  • Strings and bulbs are IP43 rated for outdoor use

  • Pixel-mappable for ultimate show and programming creativity

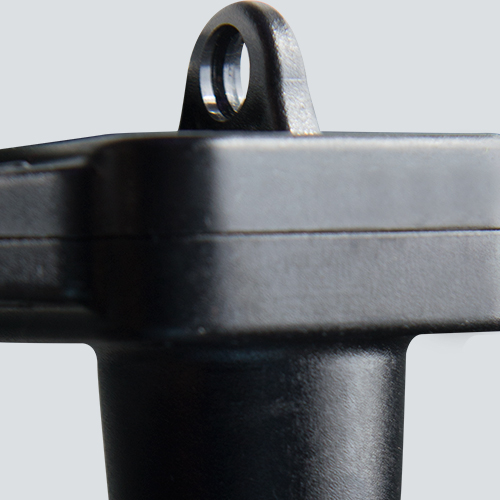

  • Eyelets on every lamp holder for quick and easy mounting

  • Expandable up to 3 strings per controller, total of 60 bulbs

  • Built in automated programs create complex looks in seconds

  • A variety of 3rd party decor options like paper lanterns can be clipped to Festoon to increase design flexibility

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

  • Access non-DMX control in Standalone mode from the digital display or optional IRC-6

  • Fits best in the CHS-50 gear bag

Specifications

  • DMX Channels:3, 8, 9, 60, 120 or 180

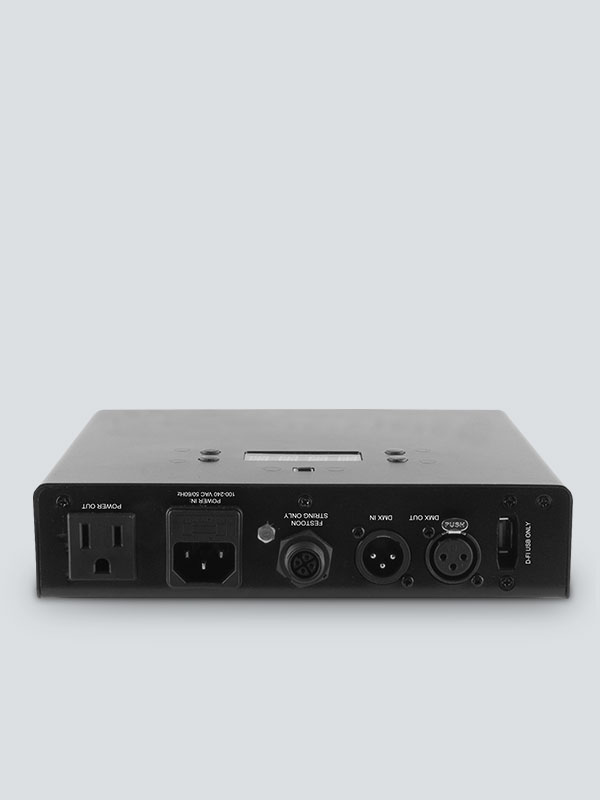

  • DMX Connectors:3-pin XLR
  • Light Source:5 SMD LED’s (tri-color RGB) 0.1 W (20 mA), 50,000 hours life expectancy
  • Strobe Rate:0 to 16.6 Hz
  • PWM Frequency:20.6 KHz
  • Coverage Angle:360°
  • IP Rating:IP43
  • Power Linking:(60 Bulbs): 3 units @ 120 V; 7 units @ 230 V
    (40 Bulbs): 6 units @ 120 V; 11 units @ 230 V
    (20 Bulbs): 13 units @ 120 V; 24 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:(60 Bulbs): 142 W, 2A @ 120 V, 60 Hz
    (40 Bulbs): 86 W, 1.3 A @ 120 V, 60 Hz
    (20 Bulbs): 40 W, 0.6 A @ 120 V, 60 Hz
    (60 Bulbs): 141 W, 1.1 A @ 230 V, 50 Hz
    (40 Bulbs): 85 W, 0.7 A @ 230 V, 50 Hz
    (20 Bulbs): 40 W, 0.3 A @ 230 V, 50 Hz
  • Weight:(Controller): 10.4 lbs (4.8 kg)
  • Size:(String): 590.5 x 2.4 x 5.2 in (15000 x 60 x 133 mm)
    (Controller): 7.5 x 8.4 x 2 in (190 x 213 x 48.7 mm)
  • Approvals:CE
  • Optional Controllers: IRC – 6, D-Fi USB

What's Included

  • Festoon

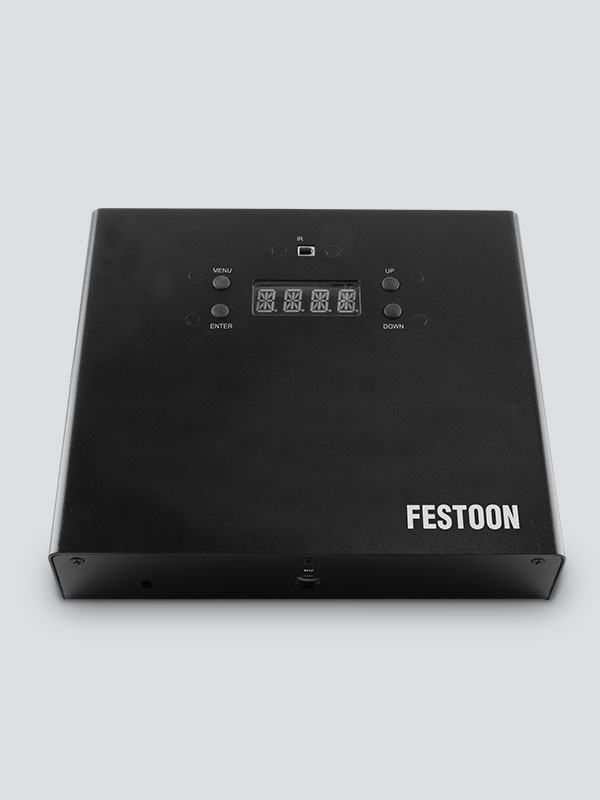

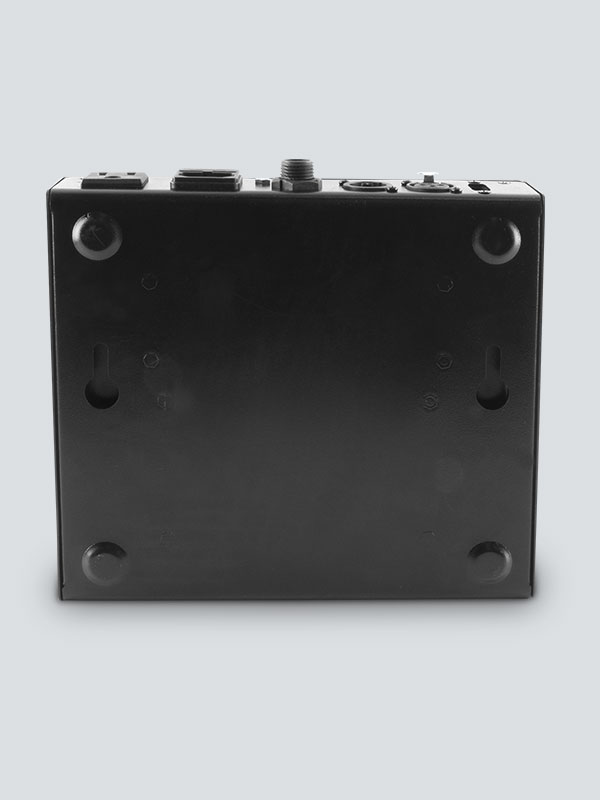

  • Controller
  • Festoon EXT

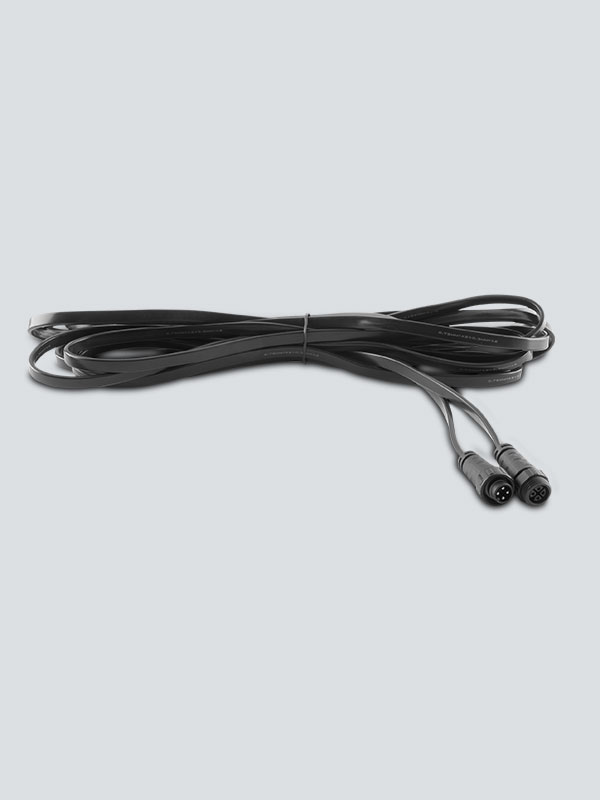

  • Extension cable (5 m)
  • Power cord
  • Warranty card
  • Quick Reference Guide
