The FlareCON Air utilizes cell phones and tablets and turns them into wireless DMX controllers. It works with all CHAUVET DJ Freedom series fixtures as well as all D-Fi products for versatile control over your rig.
The built-in Wi-Fi transmitter connects with cell phones and tablets running the FREE FlareCON app, to allow the user to control the connected lighting fixtures. The FlareCON Air then converts the Wi-Fi signal from the phone or tablet into D-Fi and wirelessly transmits those signals to an unlimited number of receivers.
The FlareCON app is available for both Android and iOS® in both phone and tablet versions. The FlareCON Air can also connect directly to a DMX controller to send wireless signals out to an unlimited number of D-Fi lights or receivers. Download Here: Android | iOS
The FlareCON Air is fully FCC and RTTE compliant.
VIP Rewards Value: 270 Points
Compact, easy-to-use Wi-Fi receiver and wireless D-Fi transmitter in a single unit
Compatible with Android™ operating system and Mac OS® on both smartphones and tablets
Output can be used in wireless D-Fi and/or wired DMX protocols
Wirelessly synchronize an unlimited number of D-Fi-ready fixtures and receivers simultaneously
Built-in options include manual or automatic channel selection

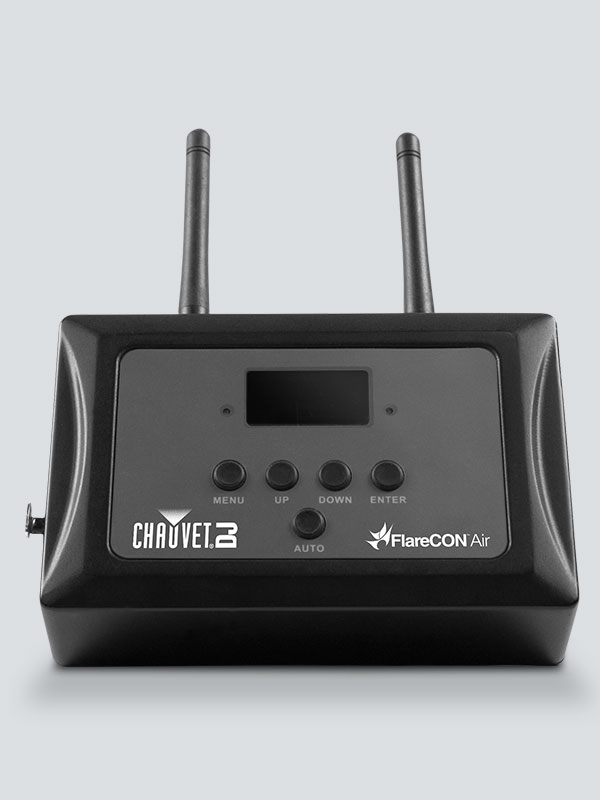

Simple navigation and text readout using the OLED digital display

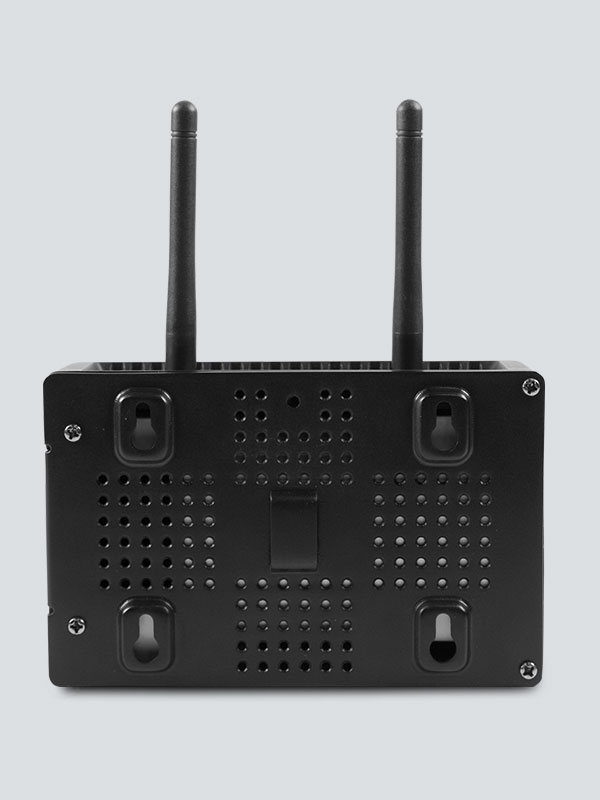

Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
Fully FCC/RTTE compliant
- DMX Channels: 512
- DMX Connectors: 3-pin XLR
- Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
- Power and Current: 4 W, 0.1 A @ 120 V, 60 Hz
4 W, 0.1 A @ 230 V, 50 Hz
- Weight: 1.2 lb (0.6 kg)
- Size: 5.59 x 3.58 x 1.81 in (142 x 91 x 46 mm)
- Approvals: CE, FCC
- FlareCON Air
- External Power Supply
- Warranty Card
Read Our Review
DOES NOT WORK AS ADVERTISED
I bought this as well as Freedom Flex H4 IP x6. Being able to use the App was a huge part of the sell for me. The Apps latest update does not work or have the functions that are shown in the VERY LIMITED number of instructional videos that have been produced. So a product that is billed as leveraging a smartphone app… an app that is not intuitive and does not have the functionality shown in the promotional videos, and literally no resources to try to figure out a solution. Cool.
Worst app design i have ever Seen.
Won'T WORK WITH IPAD
App says not compatible with my ipad though it meets requirements and i use these lights on a weekly basis! HELP!
Need stronger signal
We have three of these devices and on many events we scan for the best channel for the flarecon to send a signal. the signal needs more powerful antennas for sure. when you have a lot of people at events the antennas on these devices don’t cut it. I’d like to see more powerful antennas so our fixtures don’t get DISCONNECTED. Thank you! Dax
Easy to set up and use. Phone app is good. using with donner xmt/rcv system for older lights. will know more after a couple of weddings coming up.
New update Issue with App
This has been working great for gigs for the last two years. went to a gig last weekend not knowing app was updated and could not get lights to work with app. Very little information on the programming needed on internet and changes to app. One video showed 001 for DMZ channel number and another one just showed 1. Could not get 12 Freedom Par Hex to work and had to do manual control
WAS A decent idea
Been using this and the concept is great. The latest release of the app wont run on any of my devices so now im frozen out. Typical, but bad, thinking.
Response from CHAUVET DJ
We’re sorry to hear this… That should not occur… Please contact our customer service experts at your convenience for us to troubleshoot the issues you are describing! [email protected]
Flarecon downside. Battery
This product would be much better and more CONVENIENT if it were battery powered to match the lights i use it with.
