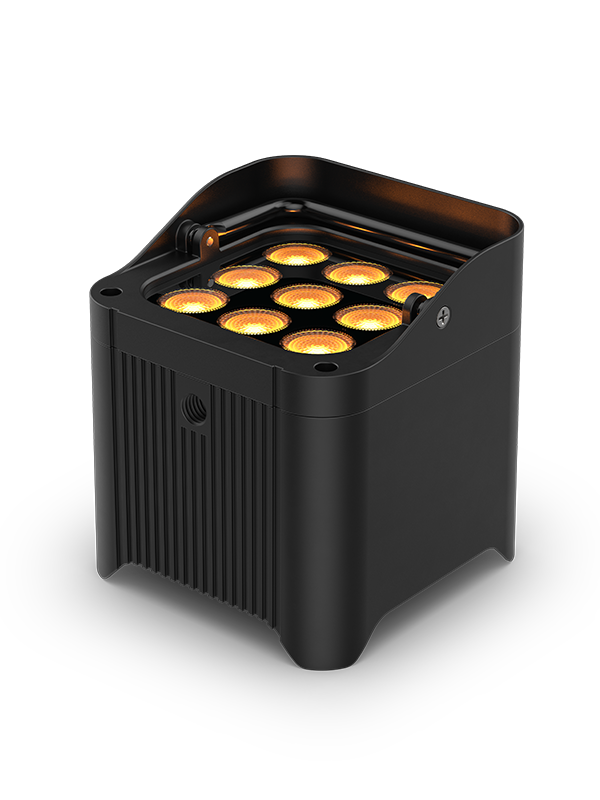

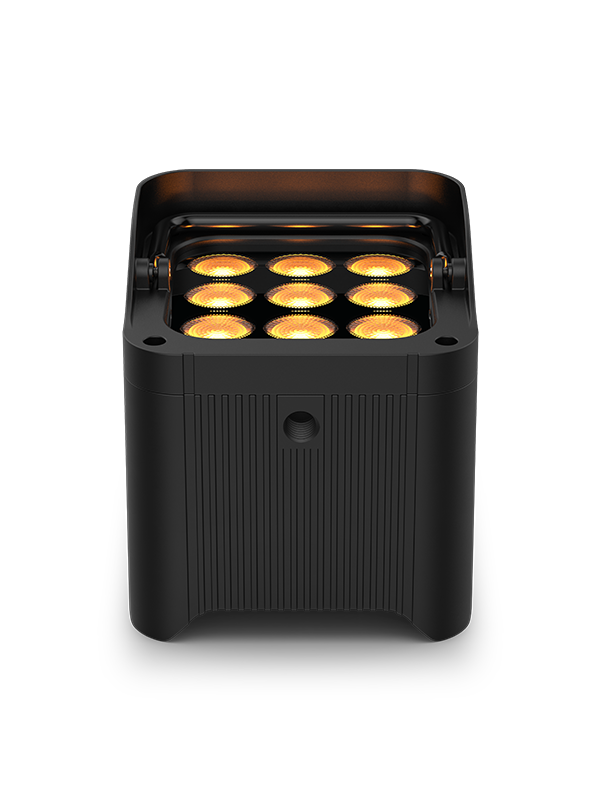

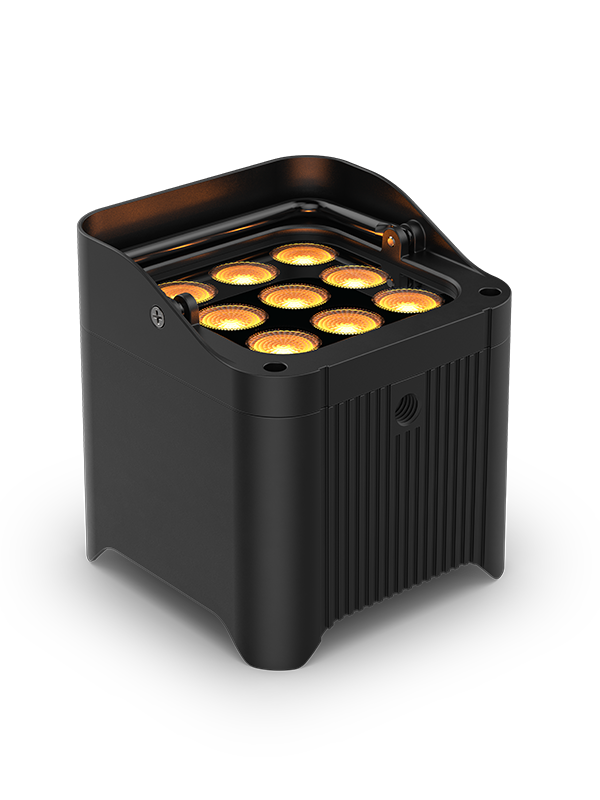

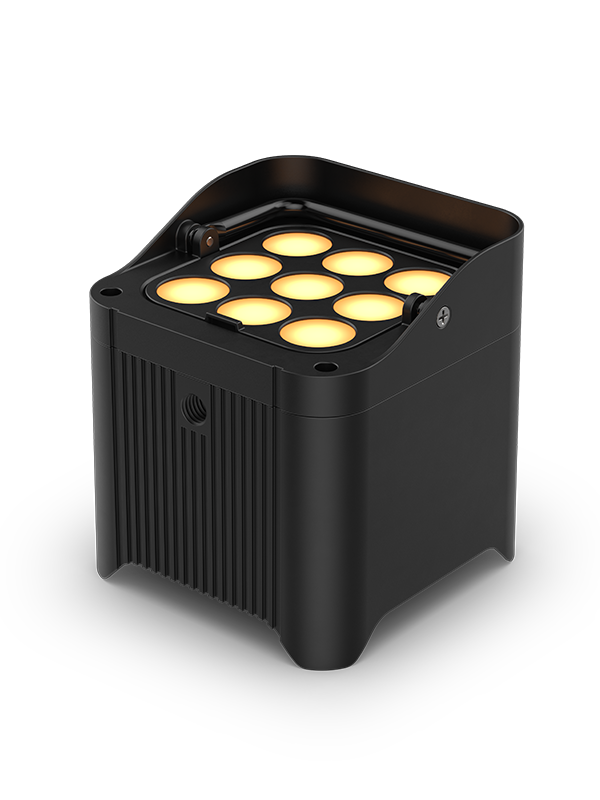

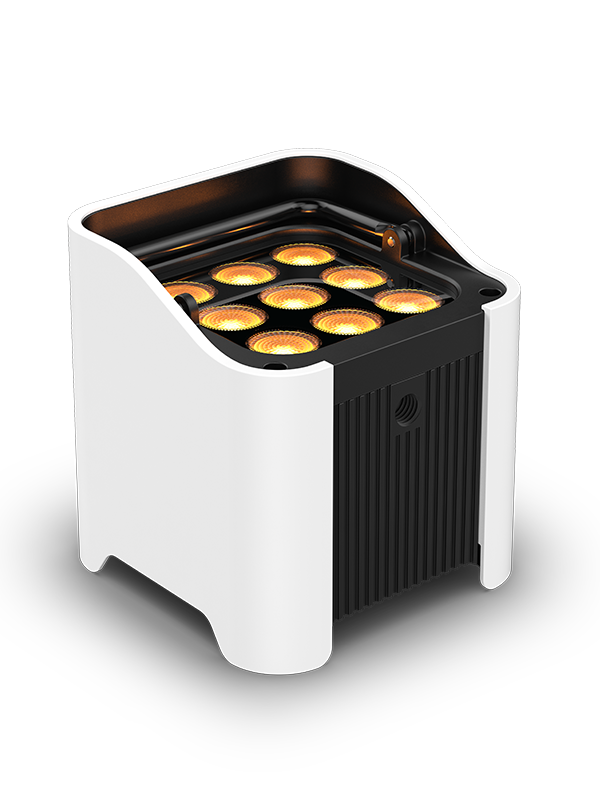

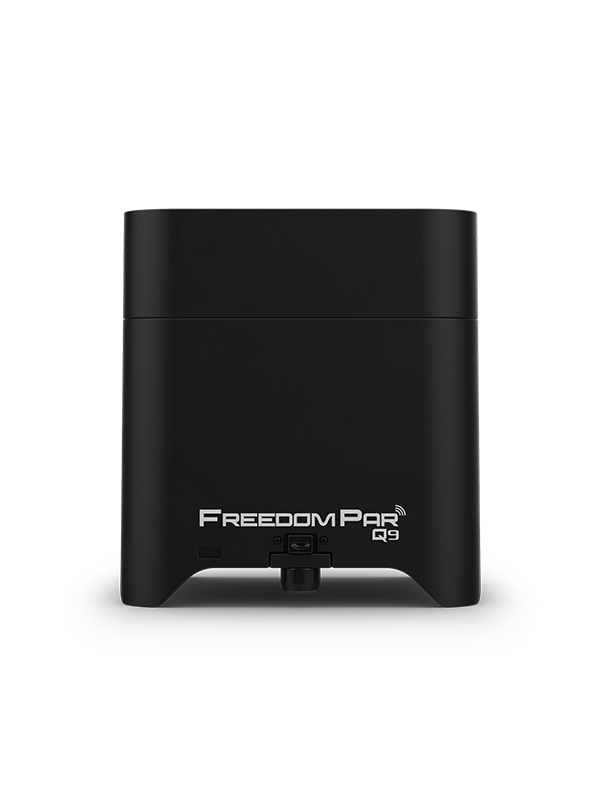

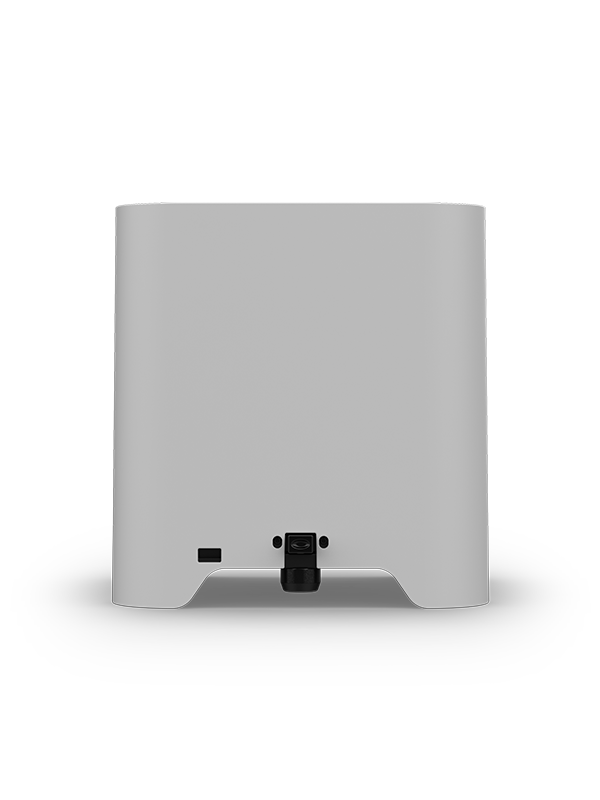

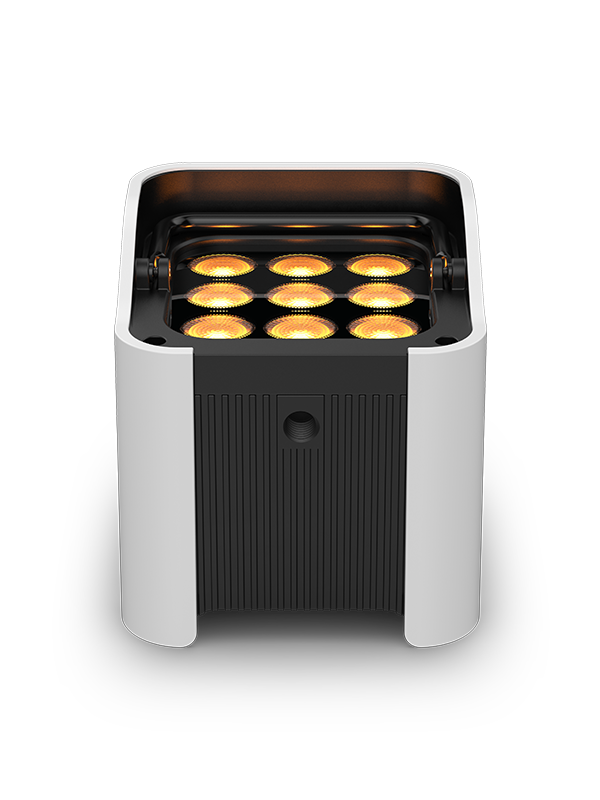

Freedom Par Q9

Experience the next generation of 100% TRUE wireless, battery-operated event lighting power with Freedom Par Q9. This quad-color (RGBA) LED uplight not only has the favorite built-in D-Fi transceiver for wireless DMX control, but even more wireless options are available with a built-in RF receiver for use with the RFC or RFC-XL optional remotes. Brilliant color mixing comes from new secondary optics and a magnetic diffuser pops on or off with ease to widen the coverage area. Adjusting settings has never been easier with the OLED display with full-text and now you can adjust run times to keep the Freedom power going all event long!

Highlights

  • 100% TRUE wireless, battery-operated, quad-color (RGBA) LED uplight with built-in D-Fi transceiver

  • New secondary optics provide perfect color blending with nearly no artifacts

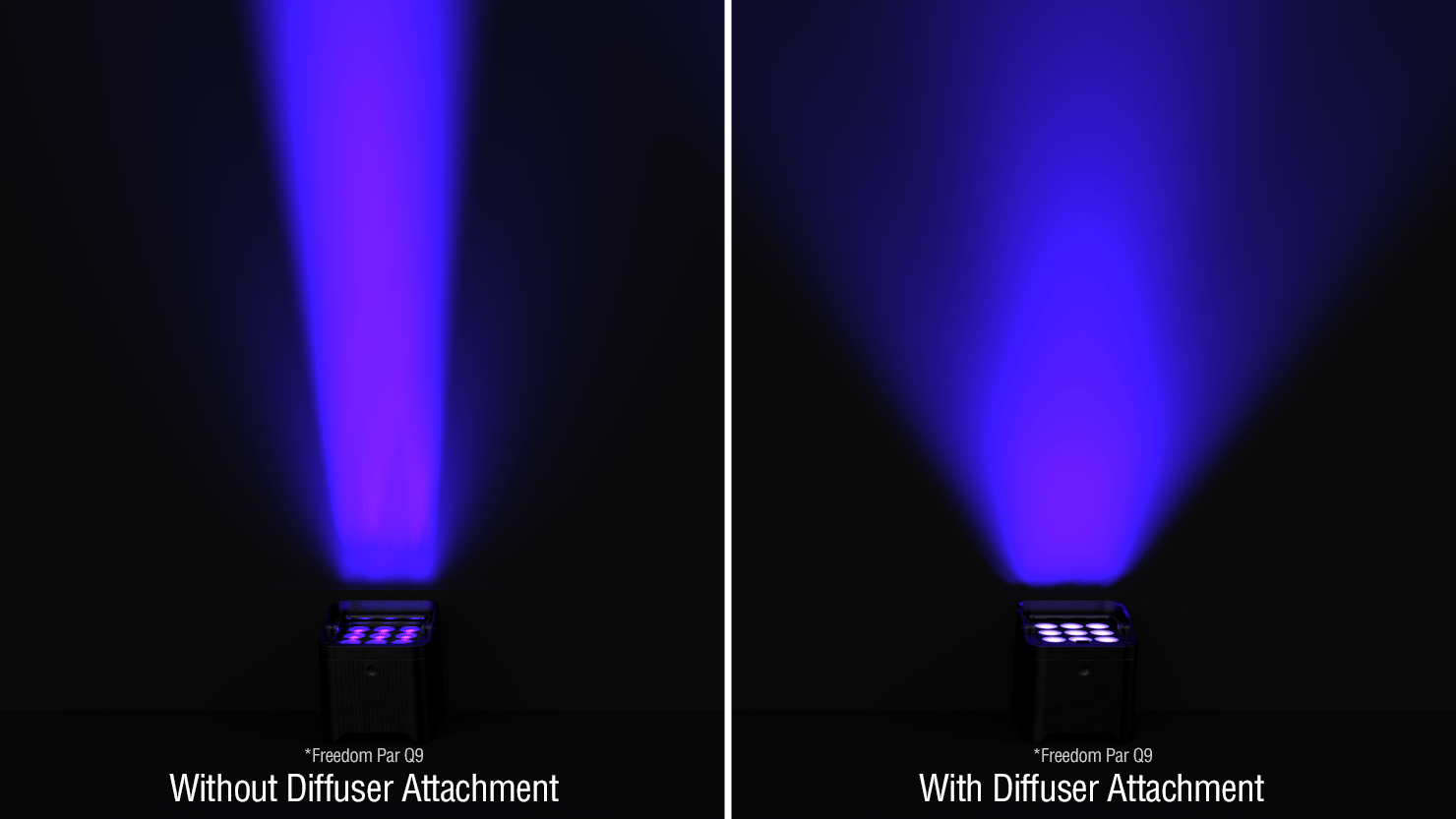

  • Magnetic diffuser pops on or off with ease and widens the coverage area

  • Adjustable run times ensure the fixture will last the length of the event

  • OLED display allows for full-text and to easily change fixture’s settings

  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

  • Adjust the projection angle using the spring-loaded kickstand

  • Built-in glare shield protects light spillage and eye fatigue

  • Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry

  • Achieve smooth LED fading with built-in dimming curves

  • Compact and lightweight design easily fits inside sticks of TRUSST®

Specifications

  • DMX Channels:4, 6 or 14
  • Max Unobstructed Distance:600 ft (183 m)
  • Light Source:9 LEDs (quad-color RGBA) 6 W, (2.3A), 50,000 hours life expectancy
  • Strobe Rate:0 to 22 Hz
  • Beam Angle: 19°
  • Field Angle:35°
  • Recharge Time:3 hours
  • Operating Frequency:2.412 to 2.484 GHz
  • Illuminance:3580 lux @ 2 m
  • Lumens:1,161
  • Input Voltage:24 VDC, 1.5 A (external power supply: 24 VDC, 50/60 Hz)
  • Power and Current:
    31 W, 0.3 A @ 120 V, 60 Hz
    30 W, 0.2 A @ 230 V, 50 Hz
  • Weight:4.6 lbs (2.1 kg)
  • Size:4.7 x 4.7 x 4.9 in (120 x 120 x 126 mm)
  • Approvals:CE, UKCA, RoHS, FCC
  • Beam Angle (with diffuser): 37°
  • Field Angle (with diffuser): 68°
  • Illuminance (with diffuser): 529 lux @ 2 m
  • Lumens: 1,161
  • Run Time (adjustable): 3, 5, 8, or 12 hrs
  • Mounting Hole: M12
  • Optional Controllers: RFC, RFC-XL, FlareCON

What's Included

  • Freedom Par Q9
  • Freedom Par Q9
  • External power supply

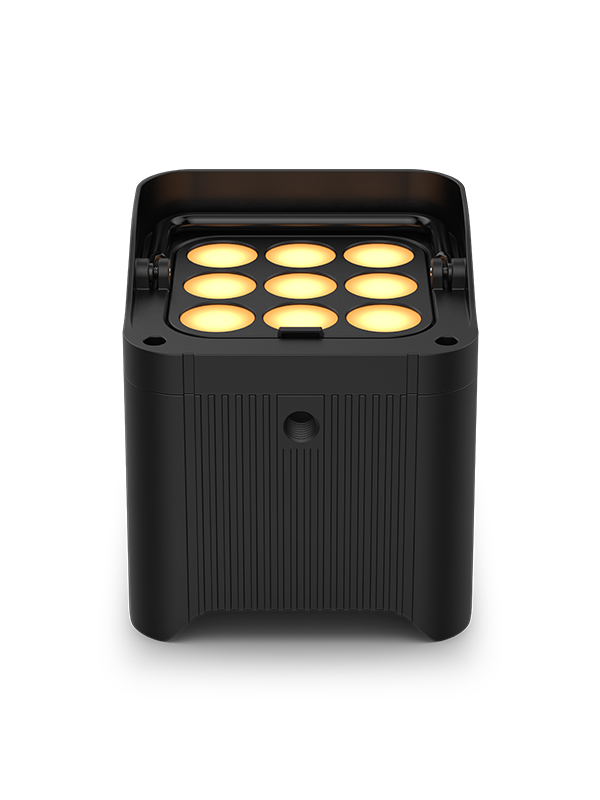

  • Magnetic Diffuser
  • Quick Reference Guide
