*US ONLY Discontinued Since 2021

FXpar 3

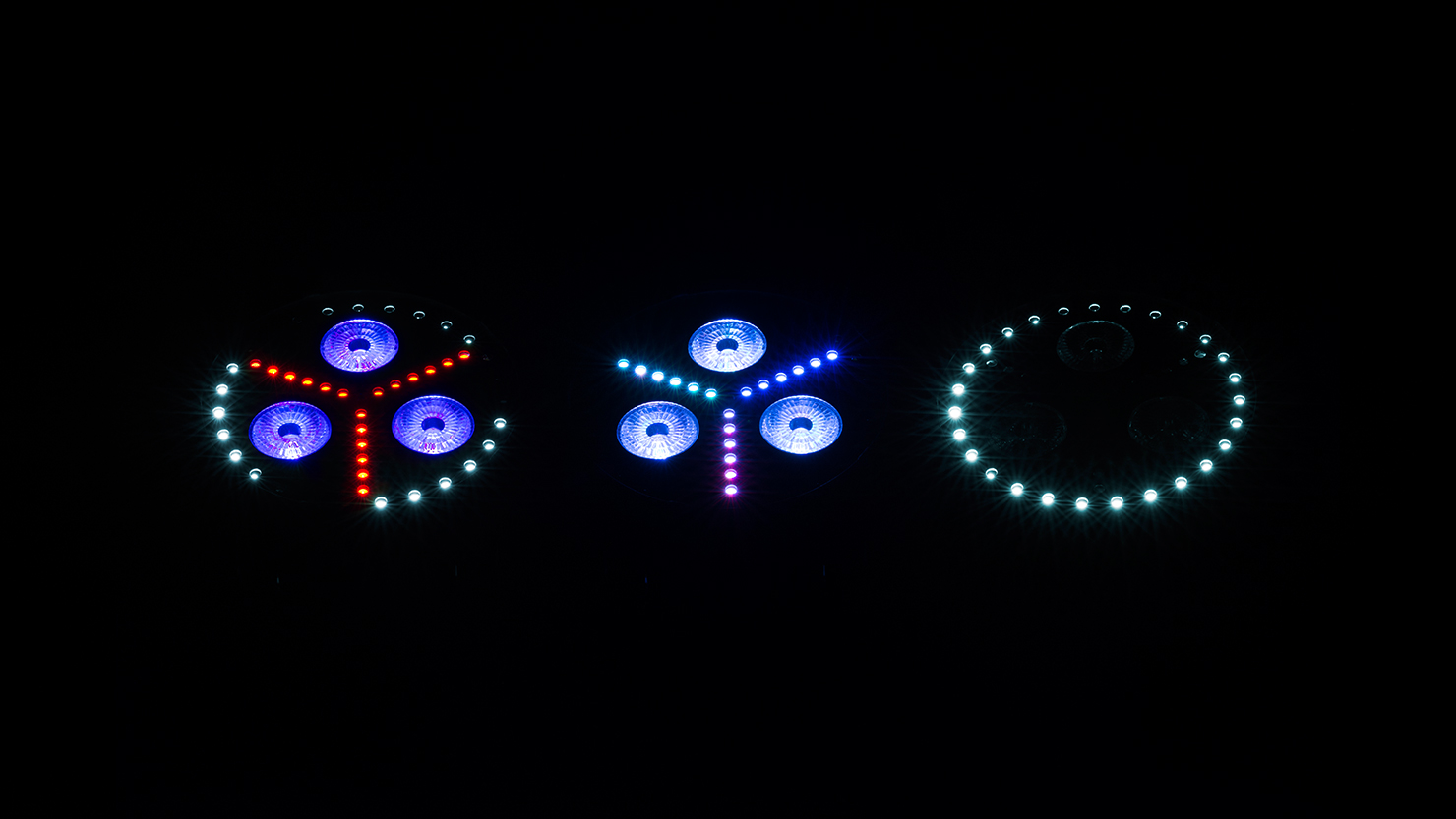

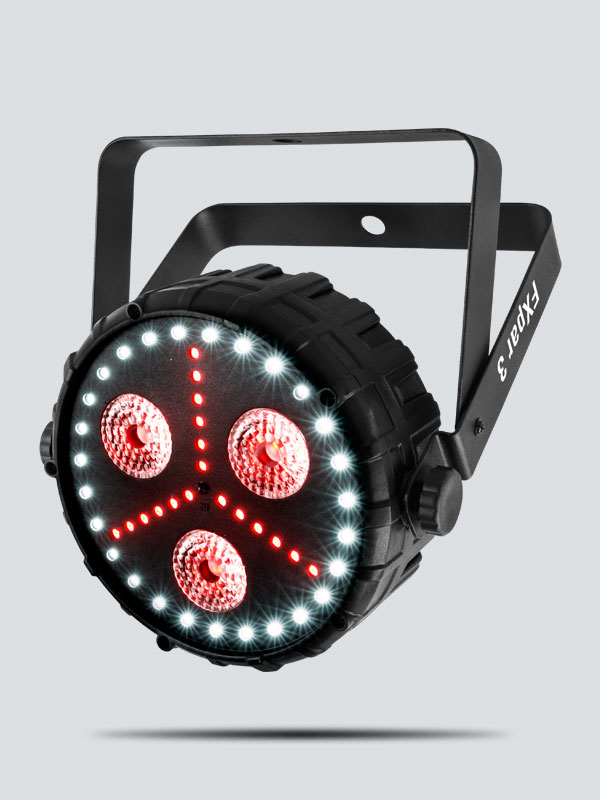

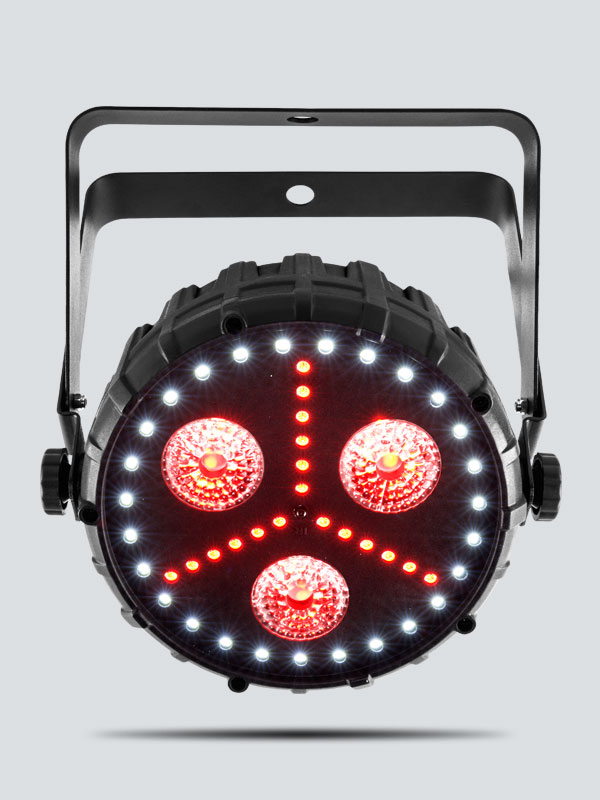

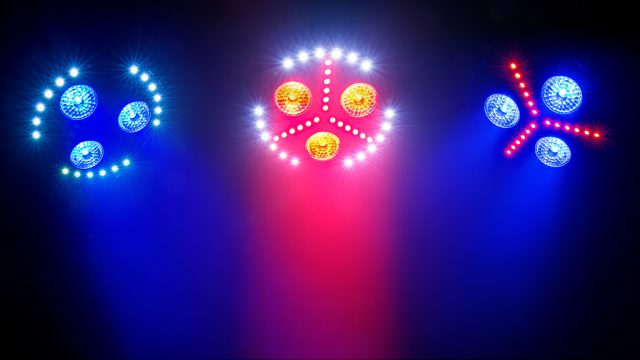

FXpar 3 is a compact effect par with multiple technologies in a single fixture. It includes three 8W Quad-color (RGB+UV) center LEDs, RGB SMD LED lights and SMD strobes. Separate control of these features makes creating breathtaking effects easy. FXpar 3 is compatible with IRC-6 for flexible control over all features and includes powerful sound-activated and automated programs.

*includes Mexico & Canada

Highlights

  • Compact effect par with multiple technologies in a single fixture

  • RGB + UV in center wash for increased color mixing and effects

  • Separate control of center LEDs, RGB SMDs and SMD strobes for dynamic effects

  • Compatible with IRC-6 for flexible control over all features

  • Generate eye-catching effects with sound-activated and automated programs

  • Power linking saves time setting up

  • Fits best in the CHS-40 VIP Gear Bag

  • Compact design easily fits inside sticks of TRUSST

Specifications

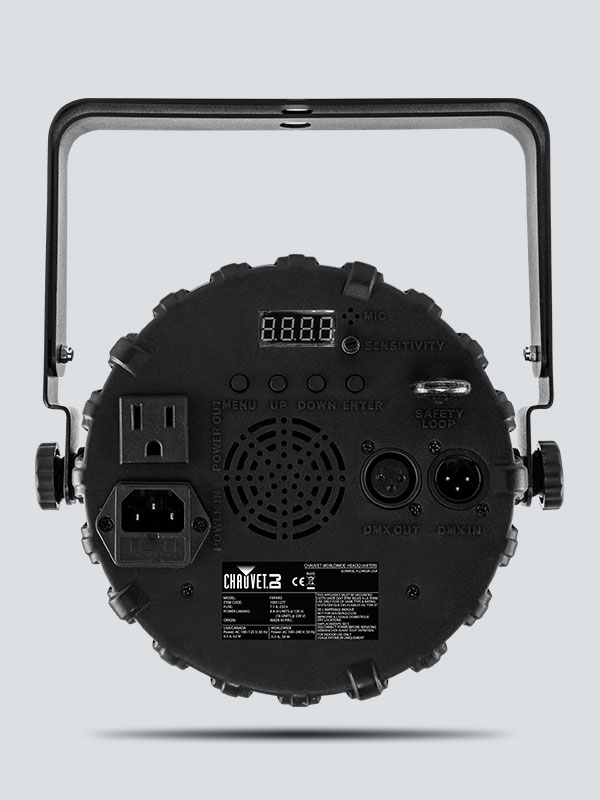

  • DMX Channels:3 or 9
  • DMX Connectors:3-pin XLR
  • Light Source:(LED): 3 LEDs (quad-color RGB + UV) 8 W, (2.4 A), 50,000 hours life expectancy
    (white SMDs): 27 LEDs (cool white) 0.5 W, (0.1 A), 50,000 hours life expectancy
    (RGB SMDs): 18 LEDs (tri-color RGB) 0.5 W, (0.2 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • Beam Angle:22°
  • Field Angle:46°
  • Illuminance:1,118 lux @ 2 m
  • Power Linking:9 units @ 120 V; 16 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:62 W, 0.9 A @ 120 V, 60 Hz
    59 W, 0.5 A @ 230 V, 50 Hz
  • Weight:2.2 lb (1.1 kg)
  • Size:10.3 x 8.4 x 3 in (264 x 214 x 76.9 mm)
  • Approvals:CE
  • Optional Controllers: IRC - 6

What's Included

  • FXpar 3
  • FXpar 3
