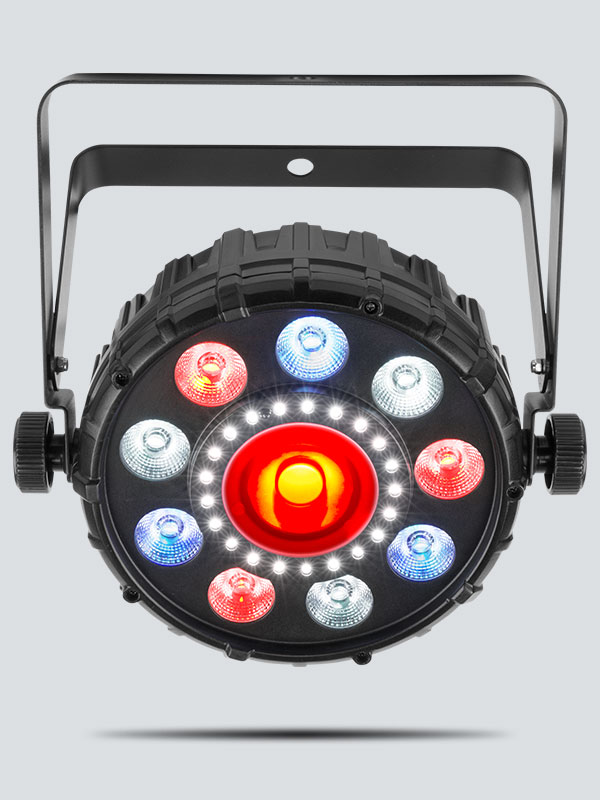

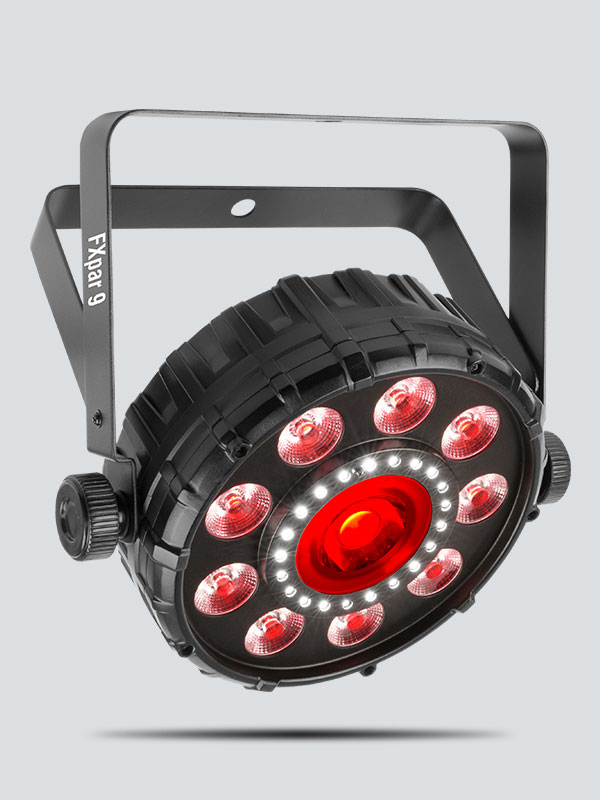

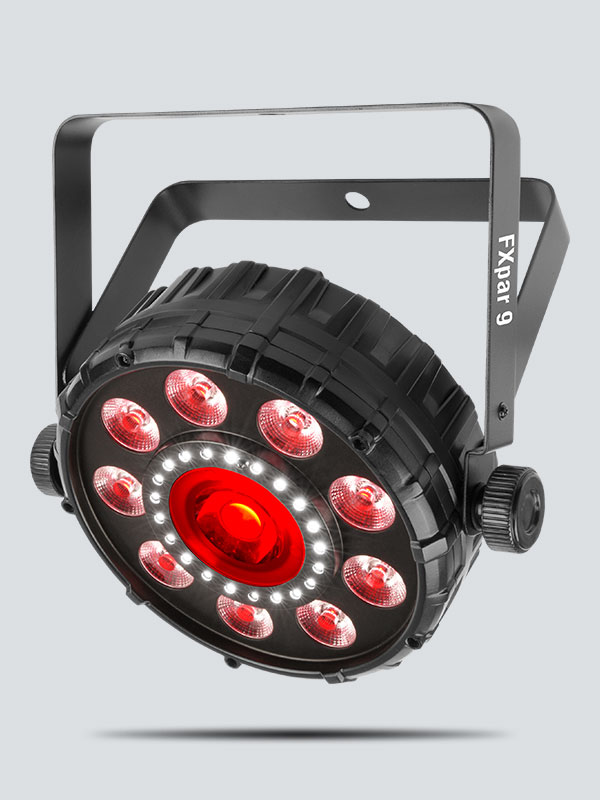

FXpar 9

FXpar 9 is a dynamic and compact multi-effect fixture. It has an outer ring of RGB+UV LEDs, a center LED, and SMD strobes, each featuring separate control.  Multiple zones allow for spectacular effects via DMX. Sound activation, automated programs or easy control via the optional IRC-6 remote also let you easily achieve eye-catching effects. Save time setting up with power linking.

VIP Rewards Value: 240 Points



*includes Mexico & Canada

Highlights

  • Compact effect par with multiple technologies in a single fixture

  • RGB+UV in outer ring for increased color mixing and effects

  • Separate control of center LED, outer ring and SMD strobes for dynamic effects

  • Multiple zones allow for spectacular effects

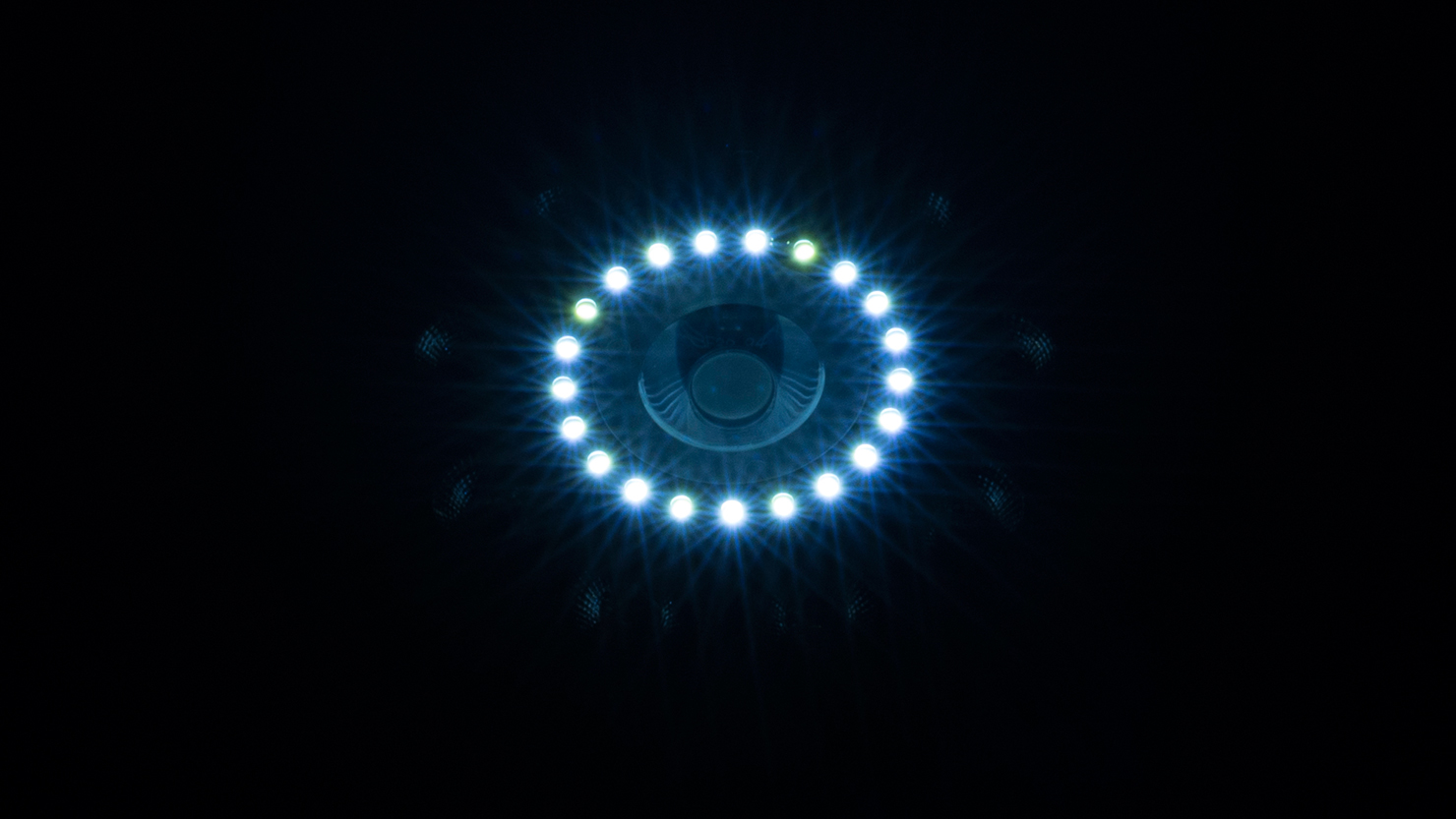

  • SMD strobe ring adds strobe effects to any setup big or small

  • Compatible with IRC-6 for improved control over the built-in functions

  • Generate eye-catching effects with sound-activated and automated programs

  • Power linking saves time setting up

Specifications

  • DMX Channels:3, 6, 9 or 23
  • DMX Connectors:3-pin XLR
  • Light Source:(outside): 9 LEDs (quad-color RGB+UV) 4 W, (1.4 A), 50,000 hours life expectancy
    (center): 1 LED (tri-color RGB COB) 18.4 W, (2 A), 50,000 hours life expectancy
    (strobe): 21 LEDs (cool white SMDs) 0.5 W, (0.2 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 16.4 Hz
  • Beam Angle:25°
  • Field Angle:45°
  • Illuminance:1450 lux @ 2 m
  • Power Linking:7 units @ 120 V; 13 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:80 W, 1.1 A @ 120 V, 60 Hz
    77 W, 0.6 A @ 230 V, 50 Hz
  • Weight:3.6 lb (1.6 kg)
  • Size:10.9 x 10.8 x 2.9 in (279 x 275 x 74 mm)
  • Approvals:CE
  • Optional Controllers: IRC - 6

What's Included

  • FXpar 9

Downloads
