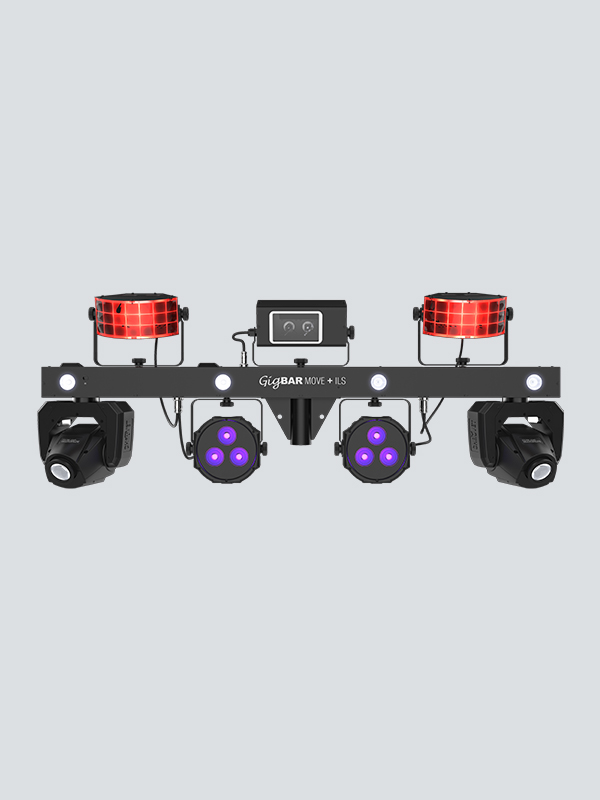

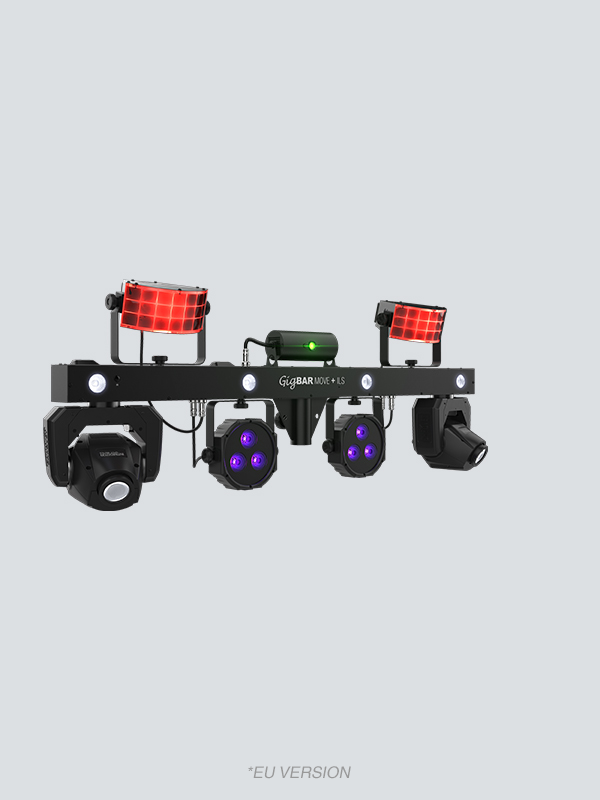

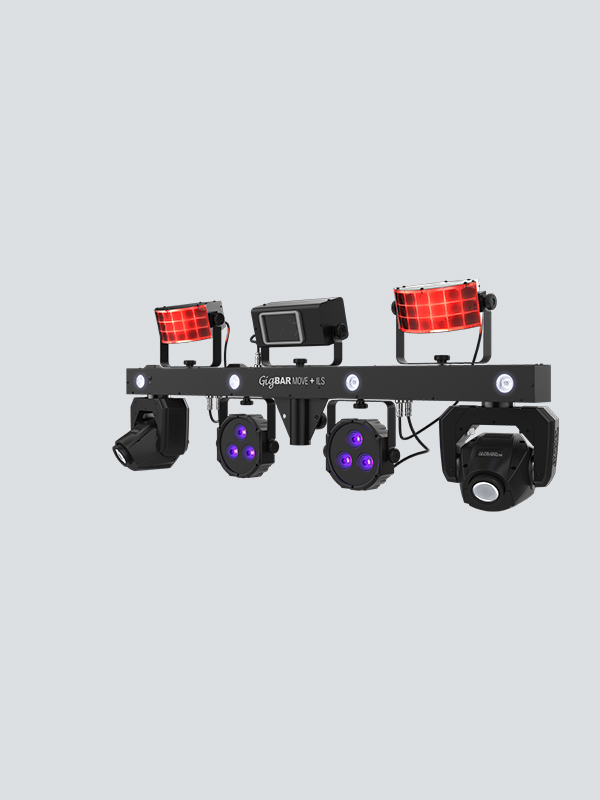

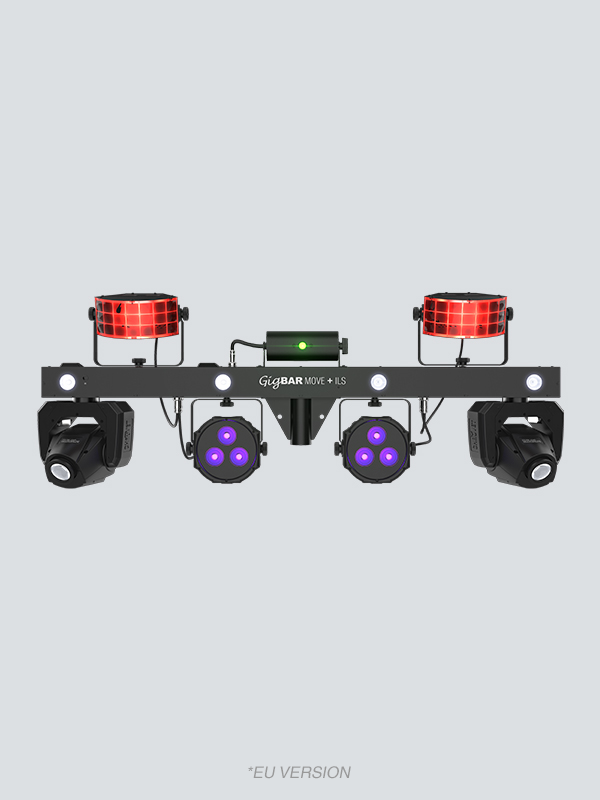

GigBAR Move + ILS

The future of easy lighting synchronization is here with GigBAR Move + ILS. This powerful member of the GigBAR family controls the Integrated Lighting System (ILS), the dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

VIP Rewards Value: 1867 Points



Highlights

  • 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar

  • Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types

  • Control any ILS-enabled fixture wired or wirelessly (sold separately)

  • Use the included RF remote to trigger the built-in shows without needing line of sight

  • Powerful moving heads with separate color and gobo wheels allow for creative programming

  • Totem Mode keeps the moving heads focused on the dance floor

  • Easy navigation and access to all moving head functions directly from the full-color LCD display

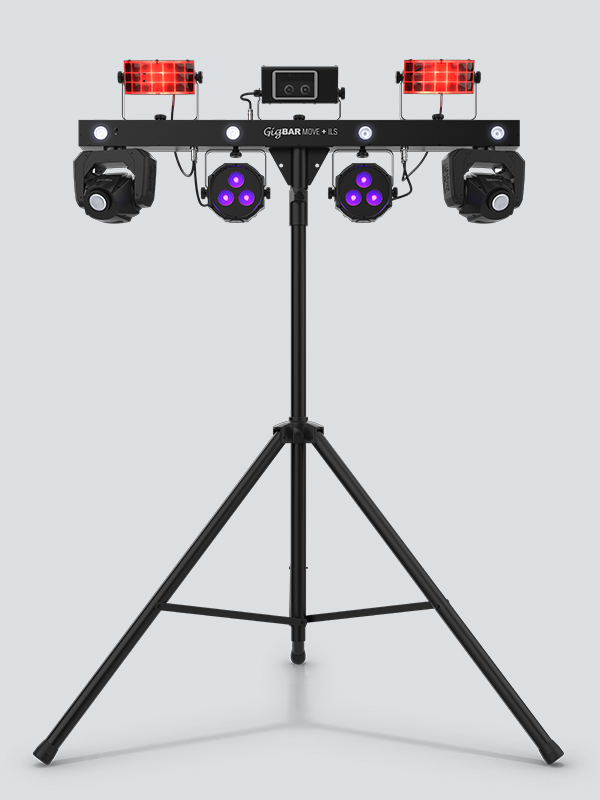

  • System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup

  • Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects

  • Individual control of each effect ensures your show looks the way you need it to

  • Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Specifications

  • DMX Channels: 3, 28, or 50
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/180°
  • Colors:
    (moving head): 9 + open, split colors, continuous scroll at variable speeds
  • Gobos:
    (moving head): 9 + open, continuous scroll at variable speeds
  • Light Source:
    (pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
    (strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
    (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
    (moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
    (Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
  • Strobe Rate: 0 to 30 Hz
  • Beam Angle:
    (moving head): 17°
    (pars): 22°
    (strobe): 30°
  • Field Angle:
    (pars): 33°
    (strobe): 62°
  • Coverage Angle:
    (derby): 131°
    (laser): 93°
  • Fits Tripod Size: 1.5 in (37.4 mm)
  • Illuminance:
    (pars): 1,205 lux @ 2 m (per par)
    (moving head): 5,140 lux @ 2 m (per head)
    (strobe): 130 lux @ 2 m
  • Power Linking: 7 units @ 120 V; 12 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    81 W, 1.1 A @ 120 V, 60 Hz
    79 W, 0.6 A @ 230 V, 50 Hz
    248 W, 1.8 A @ 230 V, 50 Hz
  • Weight: (bar only) 31 lbs (14 kg)
  • Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
  • Approvals: CE, UKCA, RoHS, FCC, FDA
  • Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
  • Footswitch Operating Frequency: 433 MHz
  • Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
  • Footswitch Battery: 9 V alkaline
  • Included Controllers: RF remote, wireless footswitch
  • Cable Length: 10 ft (3 m)
  • Tripod Thickness: 1.37 in (35 mm)
  • Optional Controllers: RF

What's Included

  • GigBAR Move + ILS
  • GigBar Move Plus ILS
  • Power cord
  • RF Remote
  • Carry bag
  • Tripod
  • Tripod carry bag
  • Footswitch
  • User Manual
