Discontinued Since 2024

Gobo Shot

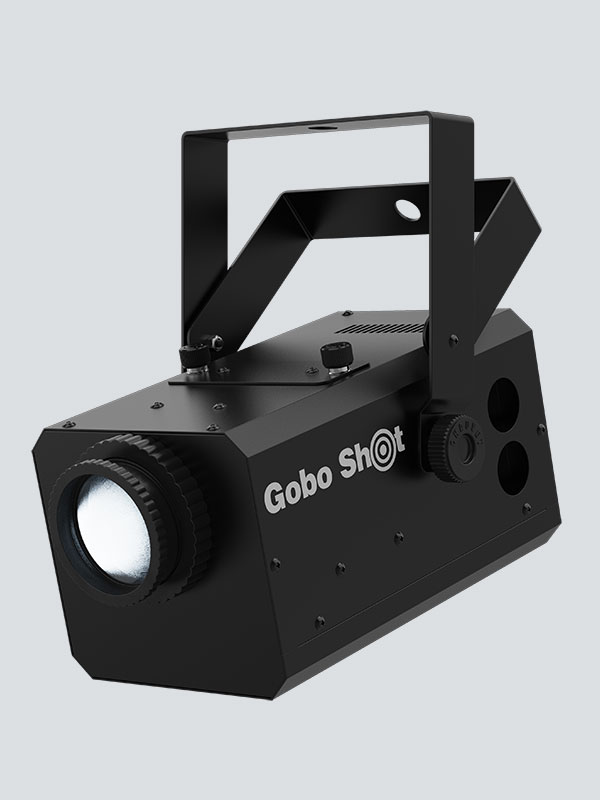

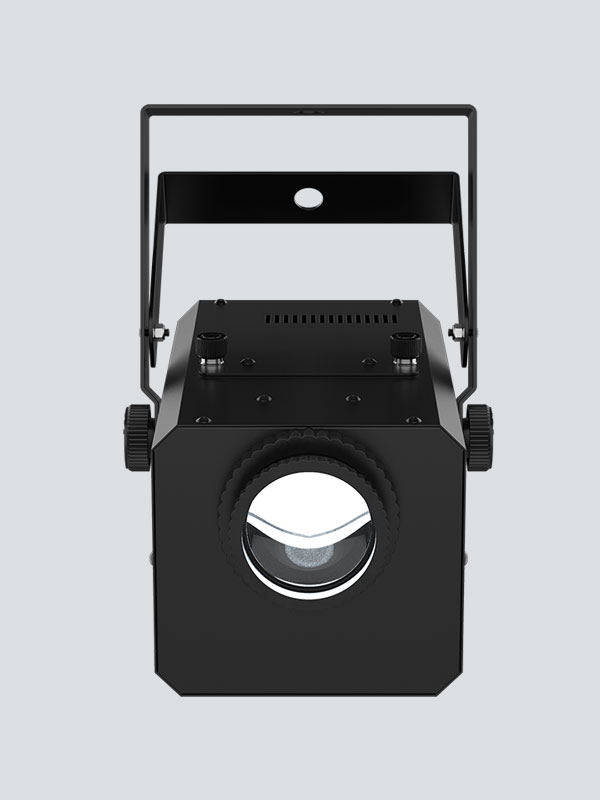

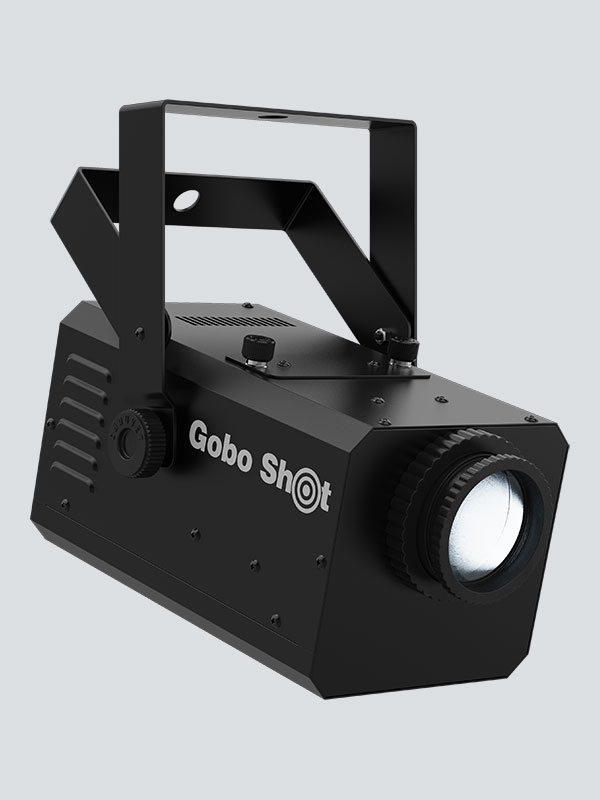

Take a shot at delighting event guests and clients with Gobo Shot for brilliant gobo projections! This super compact custom gobo projector features an easy access gobo door so changing gobos couldn’t be easier. A two-way switch is on board to control the gobo rotation. Manual focus allows a sharp image from most distances and the double bracket yoke increases mounting versatility.

Highlights

  • Super-compact custom gobo projector

  • Control the gobo rotation using the two-way switch

  • Includes 10 popular holiday gobos

  • Easily change gobos using the easy access gobo door

  • Manual focus allows a sharp image from most distances

  • Increase mounting versatility with double bracket yoke

  • Save time running cables and extension cords by power linking multiple units

  • Fits best in the CHS-40 VIP gear bag

Specifications

  • Light Source:1 LED (cool white) 32 W, (2.4 A), 50,000 hours life expectancy
  • Beam Angle:17°
  • Illuminance:4,478 lux @ 2 m
  • Power Linking:14 units @ 120 V; 23 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:42 W, 0.6 A @ 120 V, 60 Hz
    51 W, 0.3 A @ 230 V, 50 Hz
  • Weight:3.6 lb (1.63 kg)
  • Size:7.9 x 4.7 x 9.4 in (203 x 120 x 240 mm)
  • Approvals:CE
  • Bracket Mounting Hole: 13 mm
  • Gobo Size (E): 37 mm outside, 21 mm image, 1 mm max thickness

What's Included

  • Gobo Shot
  • Gobo Shot
  • Power cord
  • Quick Reference Guide
  • 10 popular holiday gobos

Downloads
