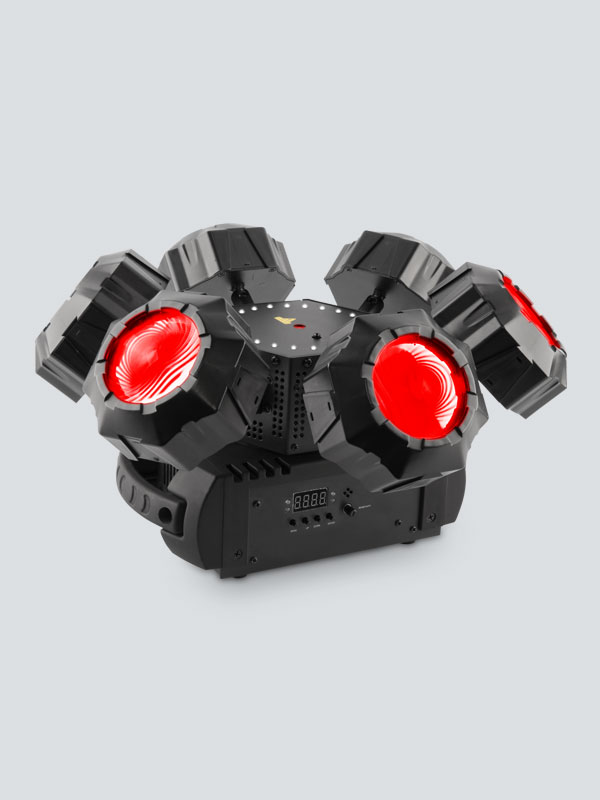

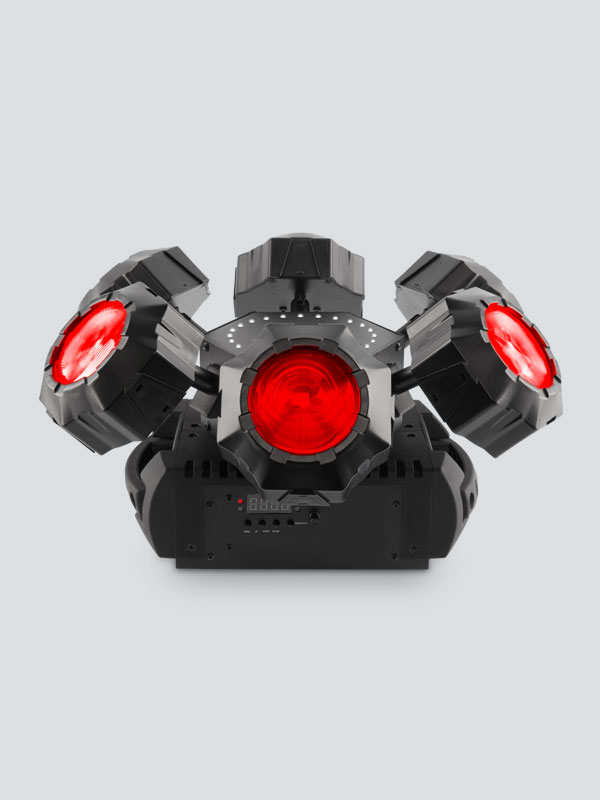

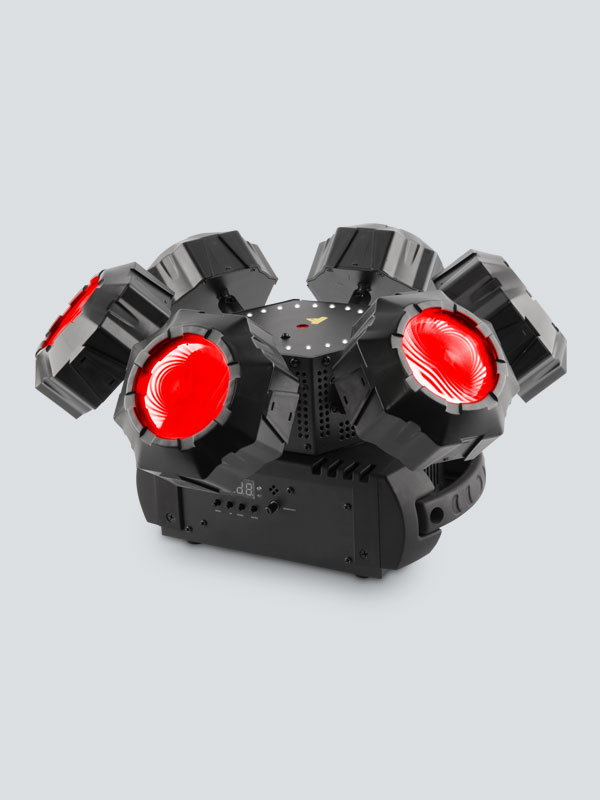

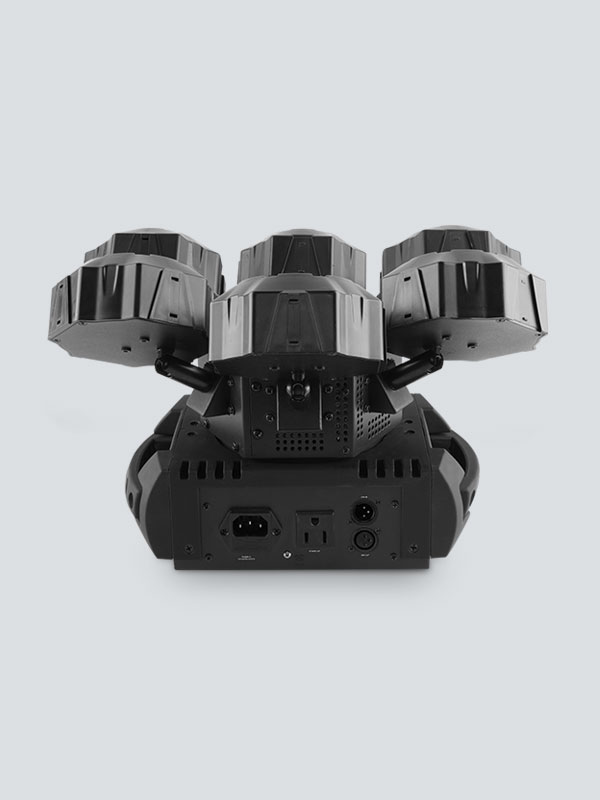

Helicopter Q6

Helicopter Q6 is a multi-effect effect light designed to dazzle and energize the dance floor. It features adjustable RGBW beams, a round SMD strobe and a red/green pattern laser on a rotating base with continuous pan rotation creating unique and amazing effects. Its narrow, razor-sharp beams of RGBW light create astonishing aerial effects and the rotating red and green laser produces thousands of razor sharp beams that cover a large area. Helicopter Q6 is easy to control using automated and sound-activated programs, master/slave, DMX or an optional IRC-6 remote.

Highlights

  • A multi-effect light that includes adjustable RGBW beams, a round SMD strobe and a red/green pattern laser on a rotating base

  • Continuous pan rotation that creates unique and amazing effects unlike any other light

  • Narrow, razor-sharp beams of RGBW light for astonishing aerial effects

  • Achieve maximum room coverage by positioning each of the 6 RGBW beams independently

  • Rotating red and green laser produces thousands of razor sharp beams that cover a large area

  • Flexible control using automated and sound-activated programs, Master/Slave, DMX or an optional IRC-6

  • Save time running cables and extension cords by power linking multiple units

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels: 3 or 16
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt Ranges: 360°
  • Light Source: (Beam): 6 (RGBW) 6.9 W, (2 A), 50,000 hours life expectancy
    (Strobe) 24 LEDs (white) 1 W, (281 mA), 50,000 hours life expectancy
    (Laser): 650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
  • Strobe Rate: (Beam): 1 to 20 Hz
    (Strobe): 1 to 20 Hz
  • Beam Angle: (Beam): 3°
  • Power Linking: 12 units @ 120 V; 23 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 41 W, 0.7 A @ 120 V, 60 Hz
    44 W, 0.4 A @ 230 V, 50 Hz
  • Weight: 8.8 lb (4.0 kg)
  • Size: 23.8 x 7.2 x 10.5 in (605 x 184 x 268 mm)
  • Approvals: CE, FDA
  • Optional Controllers: IRC-6
  • Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

What's Included

  • Helicopter Q6
  • Helicopter Q6
  • Power cord
  • Hanging bracket with mounting hardware
