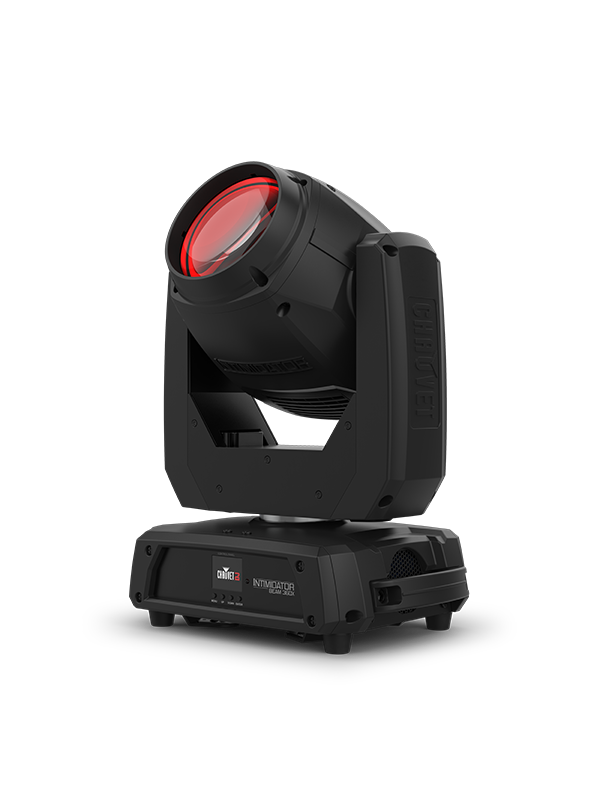

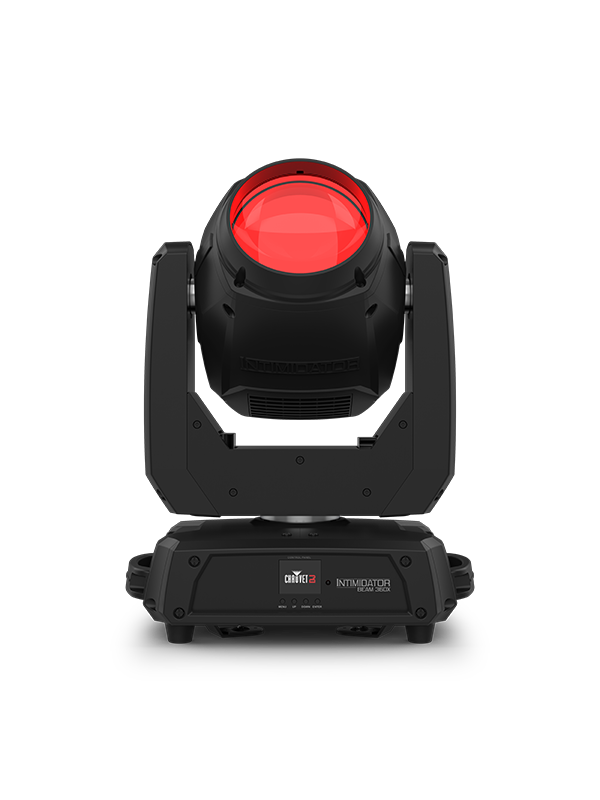

Intimidator Beam 360X

Lighting Xcellence is at hand! Unlock it with Intimidator Beam 360X a dynamic, 110-watt compact moving head designed for a variety of mobile events. Robust wireless control options are possible without DMX thanks to the built-in RF receiver that makes Intimidator Beam 360X compatible with the RFC or RFC-XL optional remotes that include options for pan, tile, color wheel, gobo control and more right in the palm of your hand. This powerhouse also is programmed with a new starting position for the moving head, improving on the whip-around rotation some programming previously initiated, making your programming look smoother and more professional. An impressive 16-facet prism splits the beam and intensifies the excitement and you can project crisp gobos from nearly any distance with the motorized focus. Unlock your X with Intimidator Beam 360X.

Highlights

  • Compact moving head designed for mobile events

  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

  • New home position allows for smoother programming

  • Motorized frost filter converts the beam to a wash

  • Impressive 16-facet prism splits the beam and intensifies the excitement

  • ¼-turn hanging bracket allows for single or dual clamp mounting options

  • Project crisp gobos from nearly any distance with the motorized focus

  • Beams always remain on the dance floor using the built-in, innovative Totem mode

  • Set, save, and recall 1 scene manually, directly from the full-color LCD display

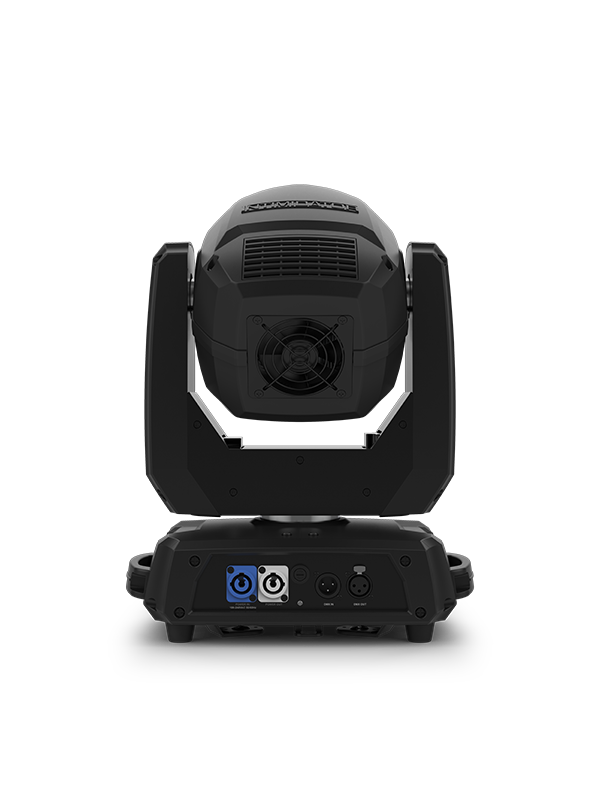

  • powerCON®-compatible power input/output connections save setup time

  • Fits best in the CHS-360 VIP carry bag or the Intimidator Road Case

Specifications

  • DMX Channels: 8 or 14
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 14 + white, split colors, continuous scroll at variable speeds
  • Gobos: 17 + open (all metal) continuous scroll at variable speeds
  • Light Source: 1 LED (cool white) 110 W, (3.9A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle:
  • Illuminance:
    (2 m) : 533,551 lux
    (5 m) : 85,368 lux
  • Lumens: 2,770
  • Power Linking: 9 units @ 120 V; 15 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    180 W, 1.5 A @ 120 V, 60 Hz
    190 W, 0.1 A @ 230 V, 50 Hz
  • Weight: 25 lb (11.4 kg)
  • Size: 12.7 x 8.7 x 16.9 in (322 x 220 x 429 mm)
  • Approvals: CE, UKCA, RoHS, MET
  • Prism: 16-facet round, bi-directional at variable speeds
  • Color Temperature: 7500 K
  • Optional Controllers: RFC, RFC-XL

What's Included

  • Intimidator Beam 360X
  • Intimidator Beam 360X
  • Power cord
  • Hanging bracket
  • Quick Reference Guide
