Discontinued Since 2015

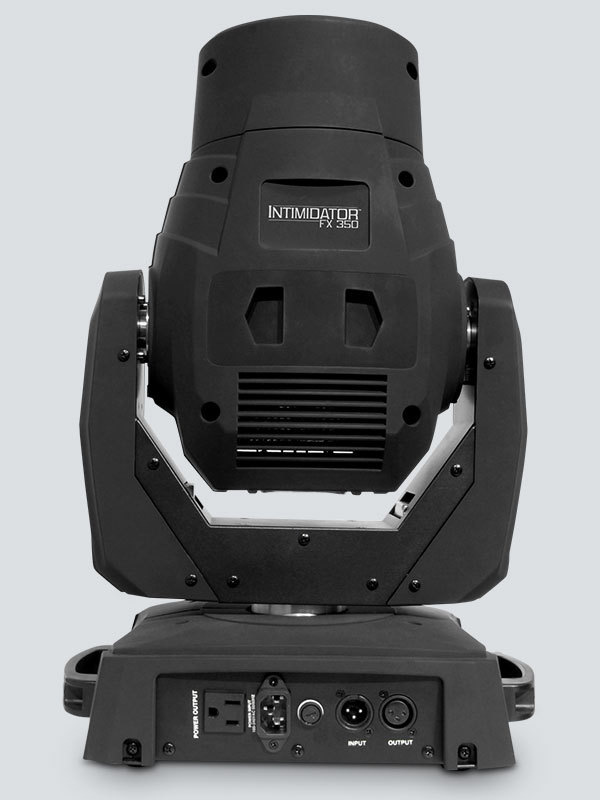

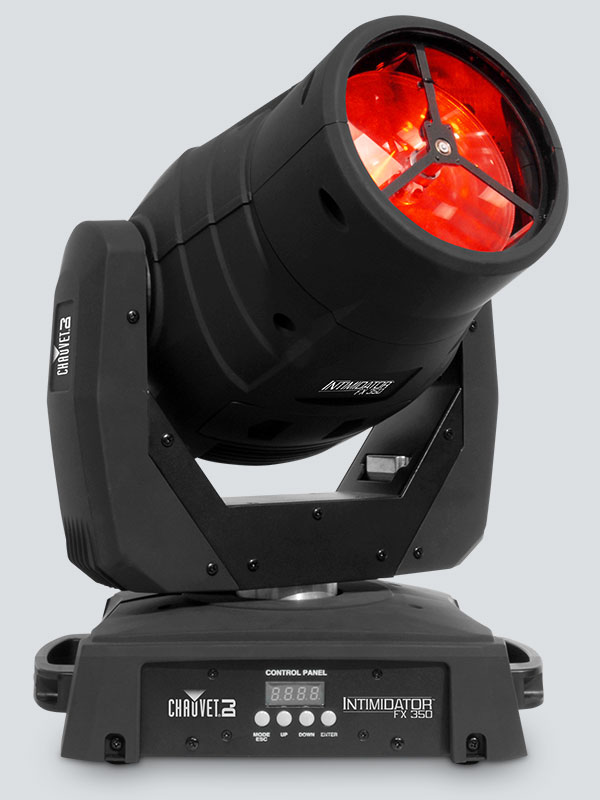

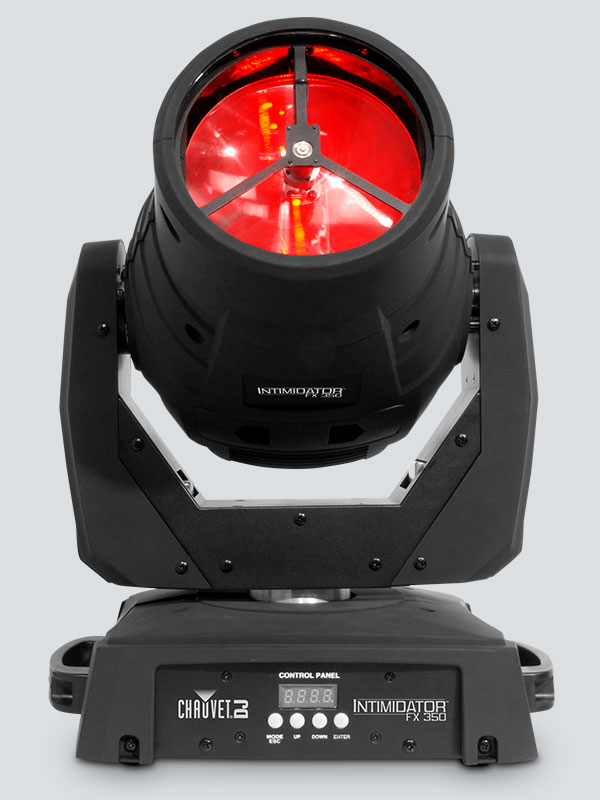

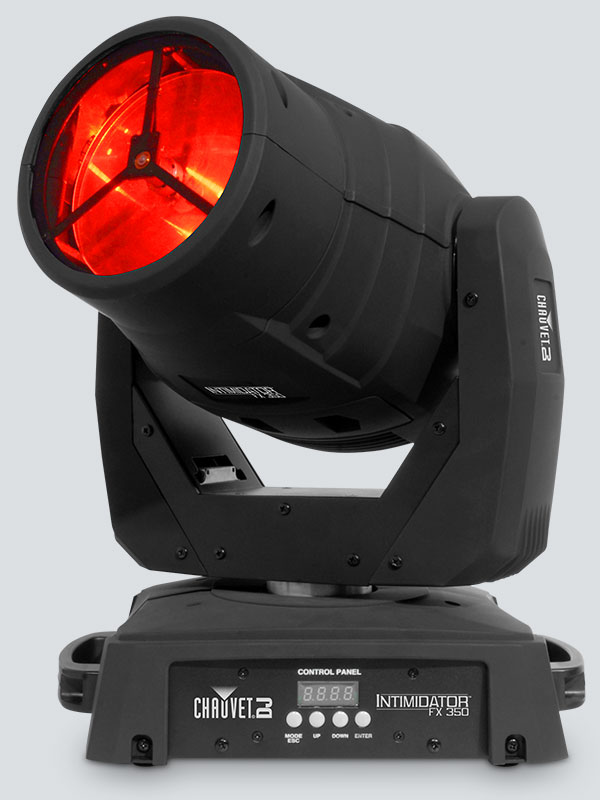

Intimidator FX 350

The Intimidator FX 350 is a powerful, feature-packed, moving head fixture. Fitted with a 75 W LED combined with superior optics, it allows you to create dynamic shows using 24 built-in, easy-to-recall light patterns, and spectacular aerial light shows with the fast pan and tilt speeds. A rotating 3-facet prism splits the beam for maximum effects and coverage.

Highlights

  • Feature-packed, moving head fixture fitted with a 75 W LED

  • Create dynamic shows using 24 built-in, easy to recall light patterns that replace the need for gobos

  • Split the ray of light and cover larger areas with the rotating 3-facet prism

  • Increase effects with electronic dimming and strobe features

  • Create spectacular aerial light shows with the fast pan and tilt speeds

  • Minimize programming time with built-in movement macros and move-in-black features

  • Save time running cables and extension cords by power linking multiple units (US/UK only)

  • DMX, sound, auto, master/slave operating modes

  • Project light where you want it with user-selectable pan and tilt ranges

  • Fits best in the CHS-50 VIP Gear Bag

Specifications

  • DMX Channels: 7 or 15
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 8 + white, split colors, continuous scroll at variable speeds
  • Light Source: 1 LED (white) 75 W (17 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • PWM Frequency: 1.01 Hz
  • Beam Angle:
  • Illuminance: 18,830 lux @ 2 m
  • Power Linking: 3 units @ 120 V; 7 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 239 W, 1 A @ 120 V, 60 Hz
    251 W, 1 A @ 230 V, 50 Hz
  • Weight: 24.6 lb (11.2 kg)
  • Dimensions: 13.4 x 9.8 x 15.4 in (340 x 248 x 392 mm)
  • Approvals: CE
  • Patterns: 24, rotating, variable speeds

What's Included

  • Intimidator FX 350
