Discontinued Since 2014

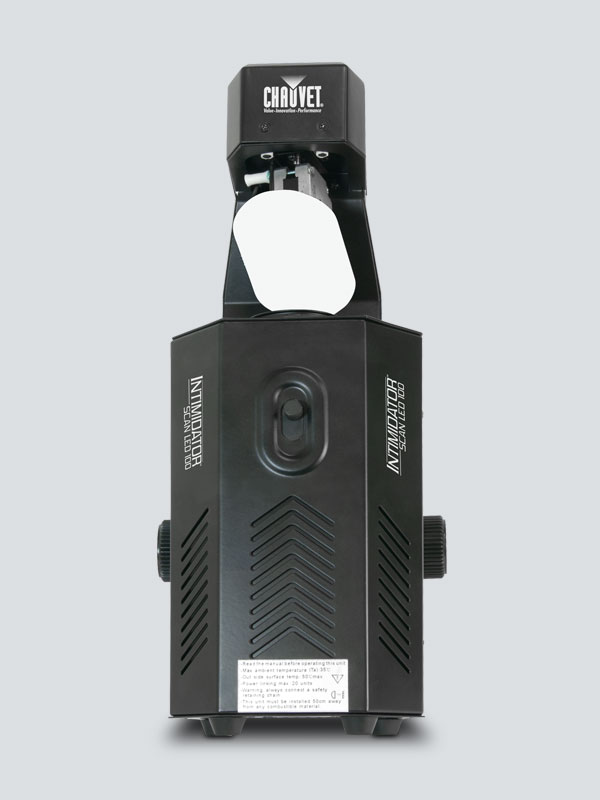

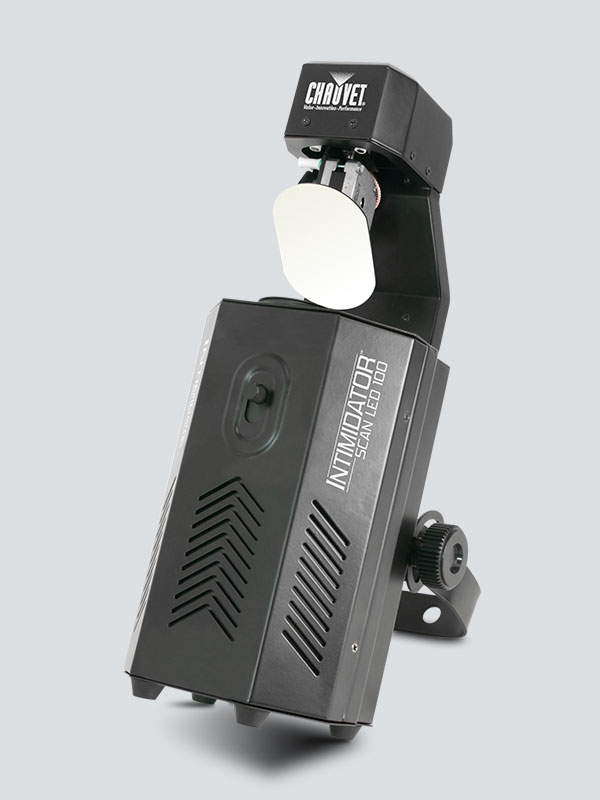

Intimidator Scan LED 100

It’s a compact LED scanner with plenty of features to enhance any show. It has awesome sound-activated programs which dance to the beat of the music as well as easy access to built-in automated programs for generating a synchronized show in master/slave mode.

Its combined color/gobo wheel creates 7 saturated projections. The electronic dimming and strobe feature operates silently and you can power link up to 16 units to save time running cables and extension cords.

Highlights

  • Bright, and compact LED scanner packed with features to enhance any show

  • Emits 7 vibrantly saturated projections using the combined color/gobo wheel

  • Increase effects with electronic dimming and strobe features

  • Save time running cables and extension cords by power linking multiple units

  • Sound-activated programs dance to the beat of the music

  • Generate a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

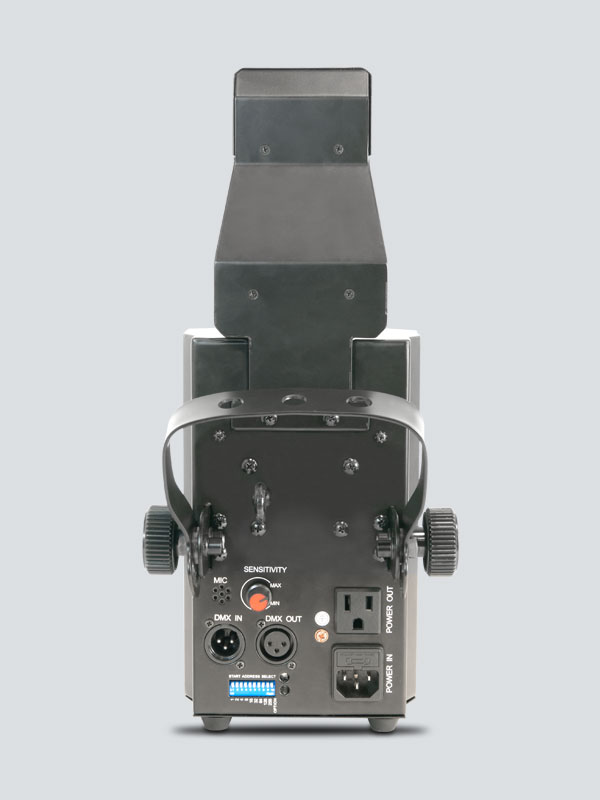

  • DMX Channels: 6
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 180°/90°
  • Light Source: 1 LED (white) 20 W (1.5 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 16 Hz
  • Beam Angle: 15°
  • Illuminance: 1,048 lux @ 2 m
  • Power Linking: 16 units @ 120 V; 28 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 27 W, 0.5 A @ 120 V, 60 Hz
    25 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 6.9 lb (3.1 kg)
  • Size: 5.7 x 6.8 x 11.8 in (145 x 172 x 300 mm)
  • Approvals: CE
  • Combined Color/Gobo Wheel: 7 patterns

What's Included

  • Intimidator Scan LED 100
