Discontinued Since 2015

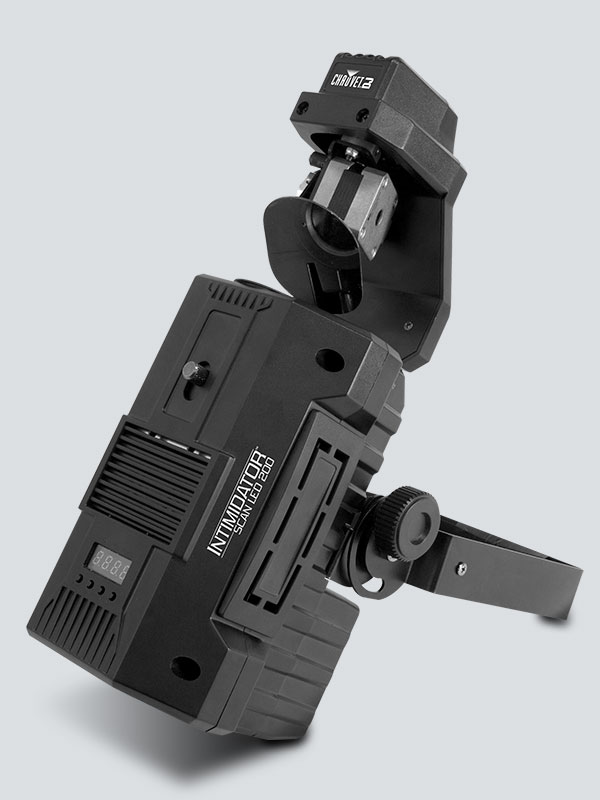

Intimidator Scan LED 200

It’s a bright, compact LED scanner with tons of features, like built-in movement macros and move-in-black features, silent electronic dimming and strobe features, awesome sound-activated programs and easy access to built-in automated programs to generate a synchronized show in master/slave mode. Its high-frequency LED dimming allows for flicker-free video operation, plus you can power link up to 8 units to save time running cables and extension cords.

Highlights

  • Bright and compact LED scanner packed with features to enhance any show

  • Increase design flexibility and effects with 7 gobos plus 7 separate, saturated colors

  • Minimize programming time using built-in movement macros and move-in-black features

  • Increase effects with electronic dimming and strobe features

  • Continuous shows with individual reset of pan/tilt, color and gobos

  • Achieve flicker-free video operation with high-frequency LED dimming

  • Save time running cables and extension cords by power linking multiple units (US version only)

  • Increase mounting options with the included double-bracket yoke that doubles as a floor stand

  • Sound-activated programs dance to the beat of the music

  • Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs

Specifications

  • DMX Channels: 5 or 8
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 180°/90°
  • Colors: 7 + white, split colors, continuous scroll at variable speeds
  • Gobos: 7 + open, continuous scroll at variable speeds
  • Light Source: 1 LED (white) 15 W (1 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle: 15°
  • Illuminance: 1,577 lux @ 2 m
  • Power Linking: 11 units @ 120 V; 21 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 80 W, 0.7 A @ 120 V, 60 Hz
    86 W, 0.4 A @ 230 V, 50 Hz
  • Weight: 7.5 lb (3.4 kg)
  • Dimensions: 13.2 x 6.6 x 14.5 in (335 x 168 x 368 mm)
  • Approvals: CE, MET

What's Included

  • Intimidator Scan LED 200
