Discontinued Since 2014

Intimidator Spot 400 IRC

Submit A Review

Read Our Review

0 out of 5 stars (based on 0 reviews)

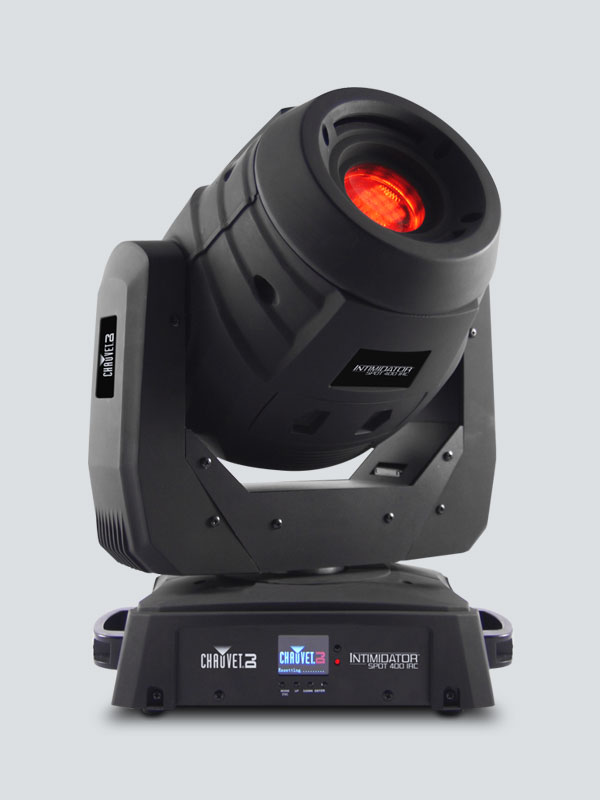

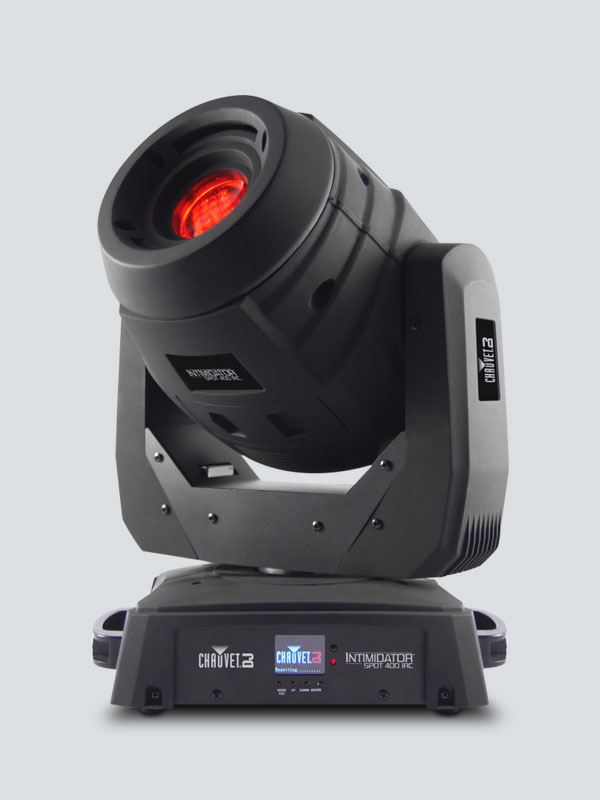

Intimidator Spot 400 IRC is a bright, 140 W LED fixture that utilizes sharp optics to emit a powerful output. It projects crisp rotating gobos from most distances. A 3-facet rotating prism splits the beam for multiple effects and a larger coverage area, while easily accessible, interchangeable gobos allow for custom looks. With simple navigation and full text readout with the high-contrast, full color LCD display, you can easily activate built-in, automated and sound-activated programs. You have multiple control options, using DMX or Master/Slave mode or the optional IRC-6 for wireless control and triggering.

Highlights

  • Exceptionally bright, 140-W LED moving head spot designed for large events

  • Simple navigation and full text readout with the high-contrast, full color LCD display

  • Power link multiple units to save time running extension cords

  • Easy-access gobo door allows for quick gobo changes without opening the fixture

  • Emit crisp projections at almost any distance using the motorized focus

  • 3-facet rotating prism splits the beam for great effects and to cover a larger area

  • Built-in effect macros and move-in-black feature minimizes programming time

  • Activate built-in, automated and sound-activated programs, or control in DMX or Master/Slave mode

  • Project light where you want it with user-selectable pan and tilt ranges

  • Continuous shows with individual reset of pan/tilt, color, gobo, prism and focus

  • Fits best in the CHS-50 VIP Gear Bag

  • Works with the optional IRC-6 for wireless control and triggering

  • Compact housing is light and easy to transport between shows

Specifications

  • DMX Channels: 8 or 14
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 + white, split colors, continuous scroll at variable speeds
  • Gobos: 8 + open (7 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Light Source: 1 LED (white) 140 W (2.9 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 22 Hz
  • PWM Frequency: 733 Hz
  • Beam Angle: 18°
  • Illuminance: 11,440 lux @ 2 m
  • Power Linking: 5 units @ 120 V; 10 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 273 W, 2.3 A @ 120 V, 60 Hz
    244 W, 1.2 A @ 230 V, 50 Hz
  • Gobo Size: 26.7 mm outside, 23 mm image, 1 mm max thickness
  • Weight: 38.8 lb (14.4 kg)
  • Size: 9.7 x 13.4 x 18.5 in (248 x 340 x 470 mm)
  • Approvals: CE
  • Optional Controllers: IRC-6

What's Included

  • Intimidator Spot 400 IRC
