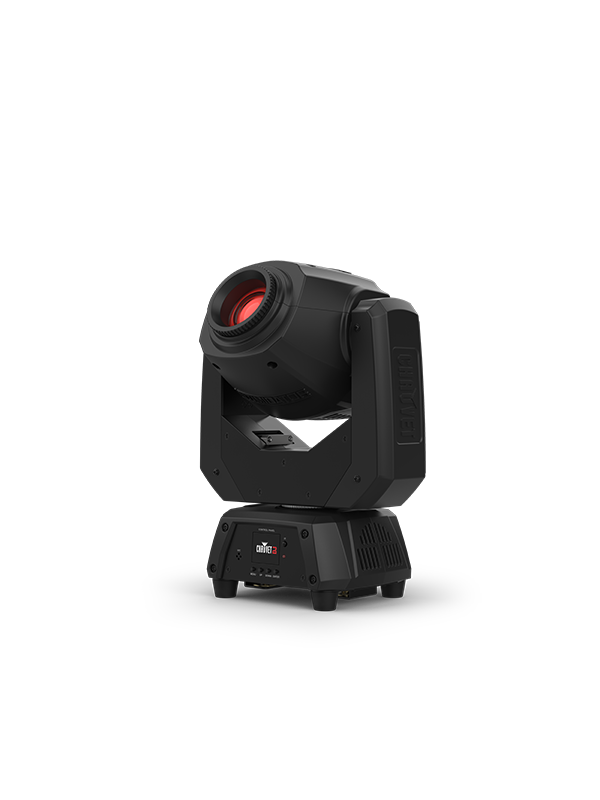

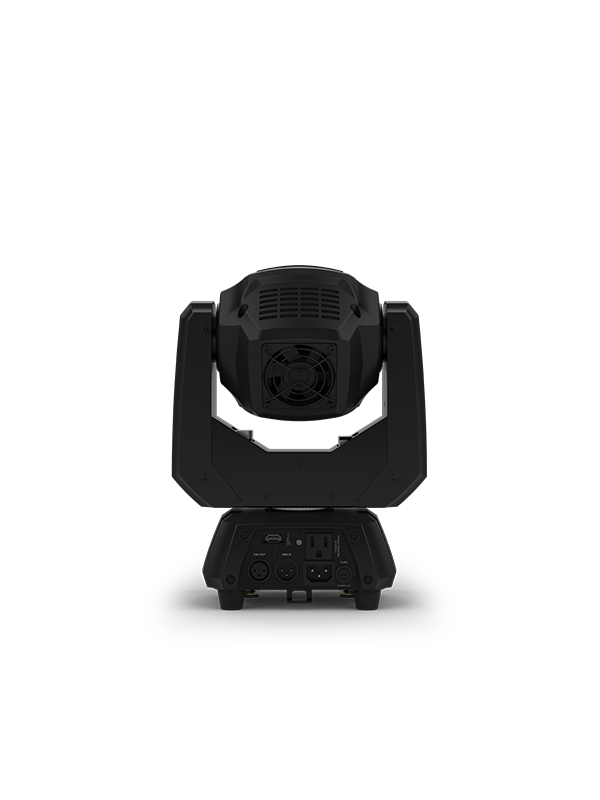

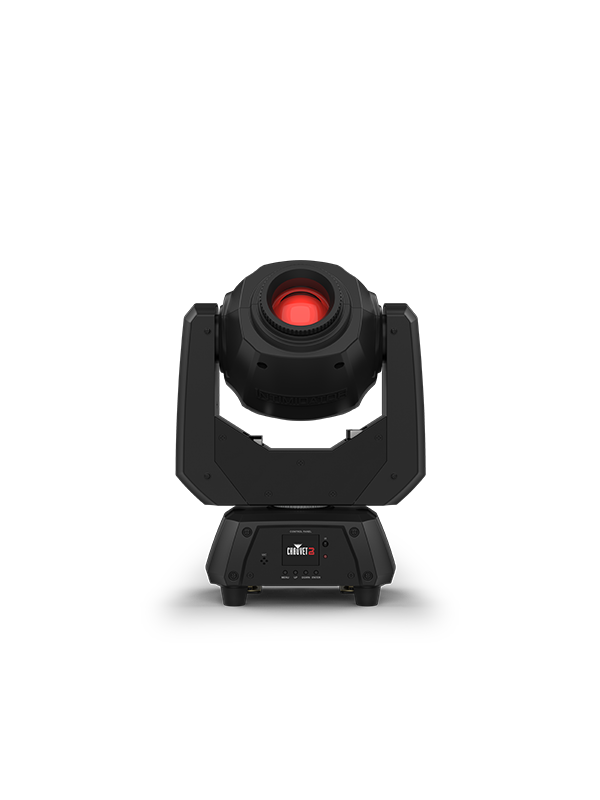

Intimidator Spot 60 ILS

Intimidator Spot 60 ILS is a compact, punchy 70-watt moving head for on the go. This fixture is small, but mighty and is ideal for mobile entertainers. The Intimidator Spot 60 ILS is compatible with our ILS* ecosystem of products which means it’s easy to setup and sync to a wide range of fixture types and is D-Fi compatible for wireless control.  The ideal counterpart to the Intimidator Free Spot 60 ILS, this fixture has the same impressive feature set including rotating gobos, a 3-facet prism, manual zoom, and automatic focus. As well as features like the new home position, the innovative Totem mode that keeps beams on the dance floor, and a ¼ turn hanging bracket that gets you in and out of your gigs in no time. Enjoy cutting edge ILS technology with the benefits of a compact fixture with the Intimidator Spot 60 ILS.

*Patent Pending

Highlights

  • Feature-packed moving head designed for mobile performances

  • ILS compatibility for use in the ILS ecosystem

  • D-Fi USB® compatibility for wireless Master/Slave or DMX control

  • New home position allows for smoother programming

  • ¼-turn hanging bracket allows for quick removal when needed

  • Project crisp gobos from nearly any distance with the motorized focus

  • Manual zoom for short or long throw applications

  • 3-facet prism splits the beam and covers a larger area

  • Beams always remain on the dance floor using the built-in, innovative Totem mode

  • Set, save, and recall 1 scene manually, directly from the full-color LCD display

  • Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode

Specifications

  • DMX Channels:8, 10 or 14
  • DMX Connectors:3-pin XLR
  • Pan and Tilt:540°/240°
  • Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 240° tilt.
  • Colors:8 + open, split colors, continuous scroll at variable speeds
  • Gobos:7 + open (6 metal + 1 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
  • Light Source:1 LED (cool white) 70 W, (3.3 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • Zoom Angle:(manual) 15° to 17°
  • Illuminance:
    (15°) : 10,012 lux @ 2 m
    (17°) : 7,792 lux @ 2 m
  • Power Linking:5 units @ 120 V; 9 units @ 230 V
  • Input Voltage:
    100 to 240 VAC
    50/60 Hz (auto-ranging)
  • Power and Current:
    107 W, 1.5 A @ 120 V, 60 Hz
    105 W, 1 A @ 230 V, 50 Hz
  • Gobo Size:24 mm outside, 20 mm image, 1.1 mm max thickness
  • Weight:11.2 lb (5.1 kg)
  • Size:8.2 x 5.9 x 12 in (207 x 149 x 308 mm)
  • Approvals:CE, RoHS, UKCA
  • Prism: 3-facet round static
  • Optional Controllers: IRC-6
  • Color Temperature: 15,000 K
  • Bracket Mounting Hole: 13 mm

What's Included

  • Intimidator Spot 60 ILS
  • Intimidator Spot 60 ILS
  • Power cord
  • Omega bracket
  • Quick Reference Guide
Save & Print

Downloads

Intimidator Spot 60 ILS - Quick Reference Guide
