Discontinued Since 2014

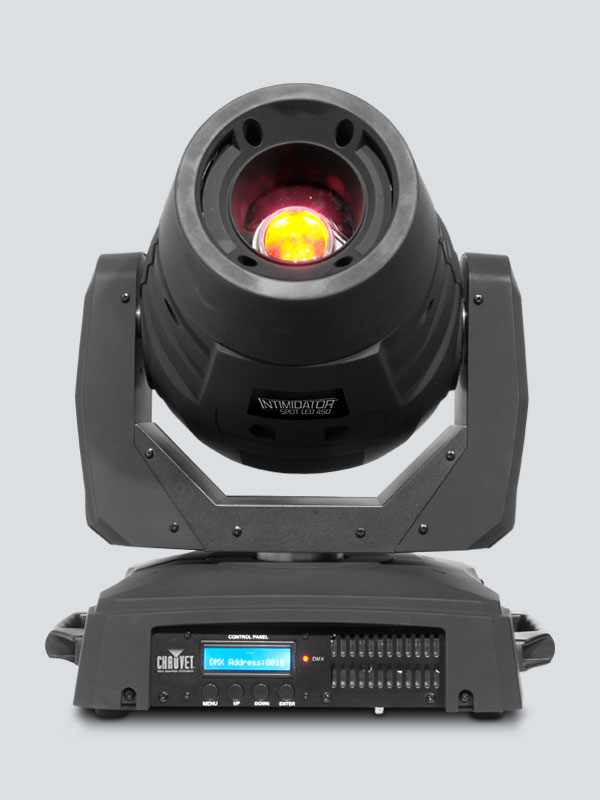

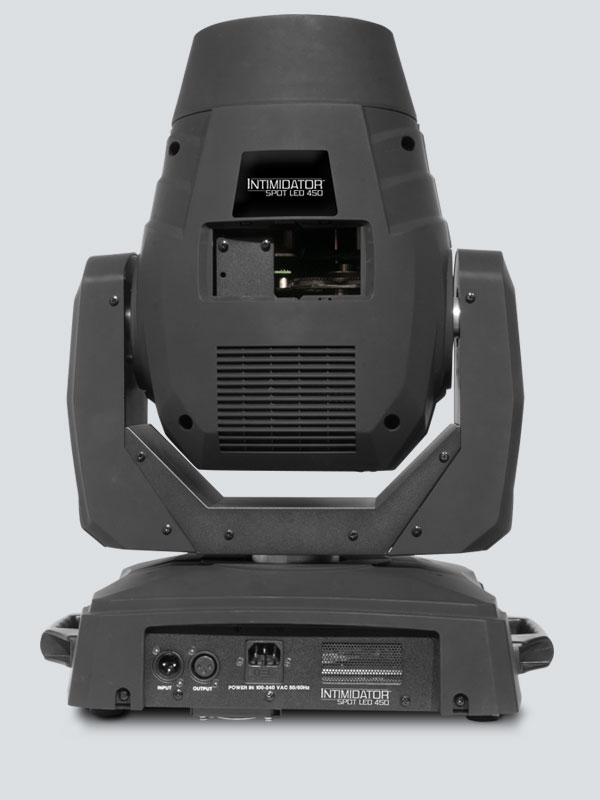

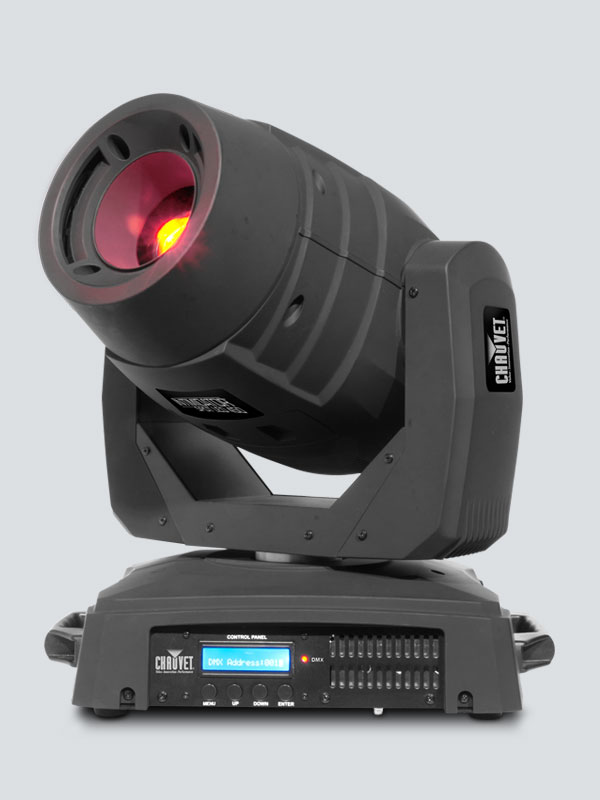

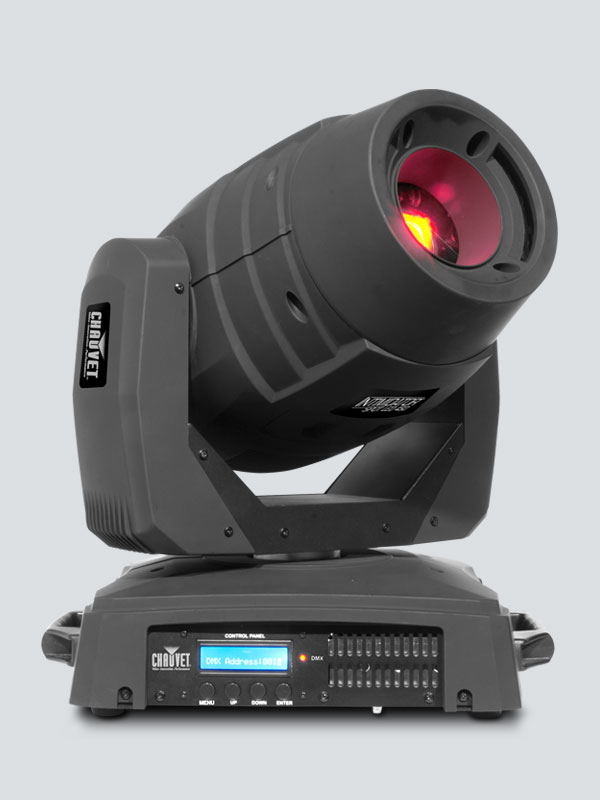

Intimidator Spot LED 450

Intimidator Spot LED 450 utilizes three 60-watt white LEDs and sharp optics to emit a powerful output and punch through ambient lighting. This feature-packed moving head includes a motorized focus to project crisp rotating gobos from most distances. A 3-facet rotating prism splits the beam for multiple effects and a larger coverage area, while easily accessible, interchangeable gobos allow for custom looks.

Highlights

  • Bright moving head spot fitted with 180 W of LED power for large-scale events

  • Emit crisp projections at almost any distance using the motorized focus

  • Increase effects and cover larger areas with the rotating, 3-facet prism

  • Simple navigation and a full text readout with the high-contrast LCD screen

  • Quickly change gobos without opening the fixture using the easy-access gobo door

  • Achieve smooth, LED fading with the electronic dimmer

  • Project light where you want it with user-selectable pan and tilt ranges

  • Minimize programming time with built-in effect macros and move-in-black feature

  • Activate built-in, automated and sound-activated programs, or control in DMX or master/slave mode

  • Continuous shows with individual reset of pan/tilt, color, gobo, prism and focus

Specifications

  • DMX Channels: 8 or 14
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 + white, split colors, continuous scroll at variable speeds
  • Gobos: 7 + open, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Light Source: 3 LEDs (white) 60 W (16 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle: 19°
  • Illuminance: 23,680 lux @ 2 m
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 400 W, 3.3 A @ 120 V, 60 Hz
    395 W, 1.7 A @ 230 V, 50 Hz
  • Gobo Size: 26.75 mm outside, 23 mm image, 3 mm max thickness
  • Weight: 43.6 lb (19.8 kg)
  • Dimensions: 16.6 x 11.9 x 24 in (423 x 303 x 610 mm)
  • Approvals: CE

What's Included

  • Intimidator Spot LED 450
Save & Print

Downloads

User Manual
