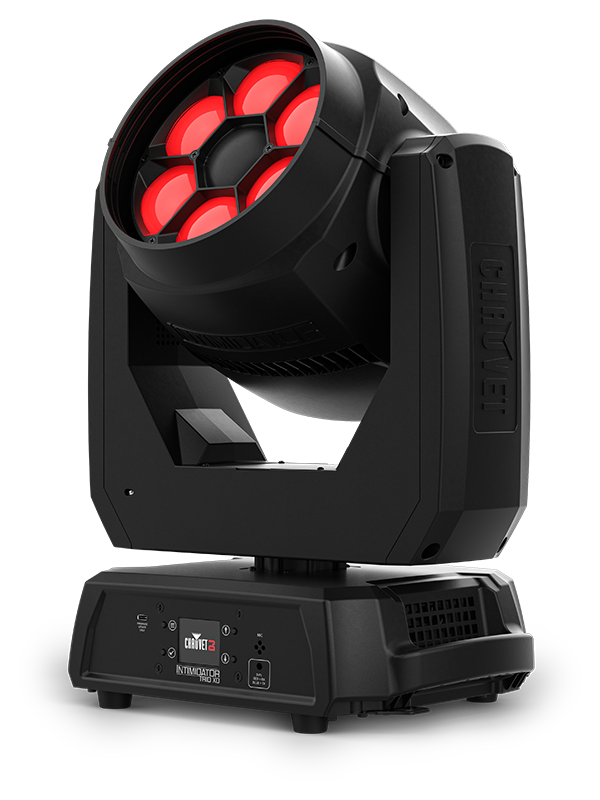

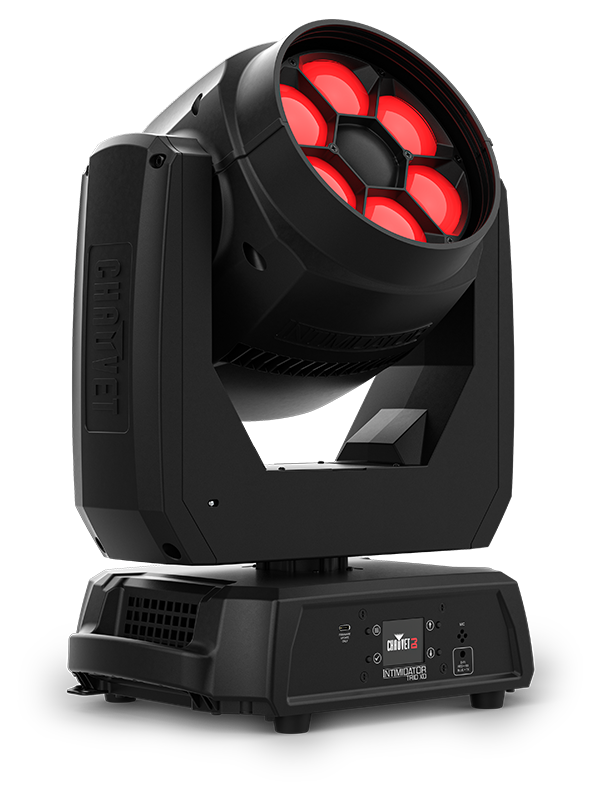

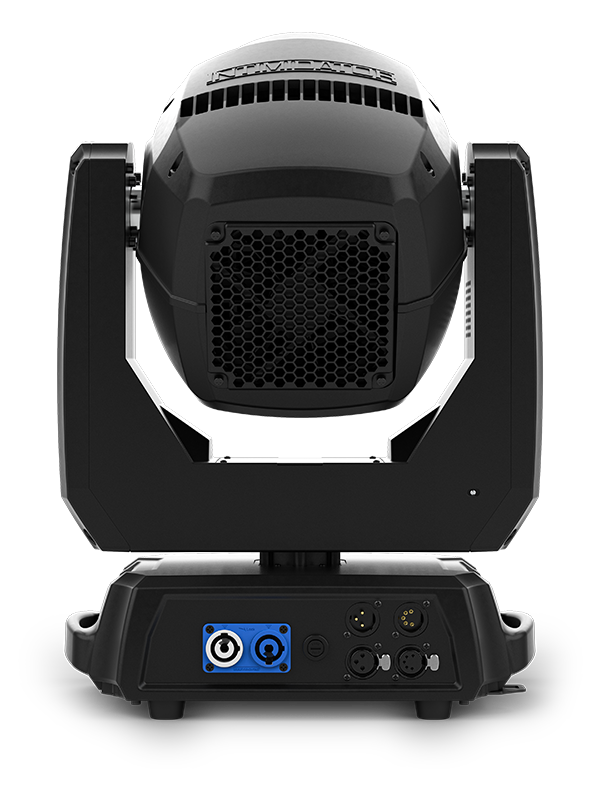

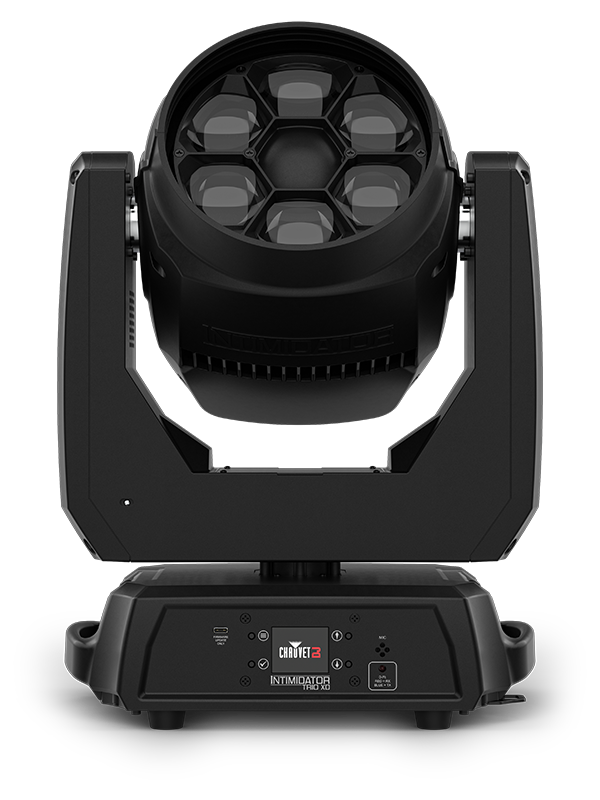

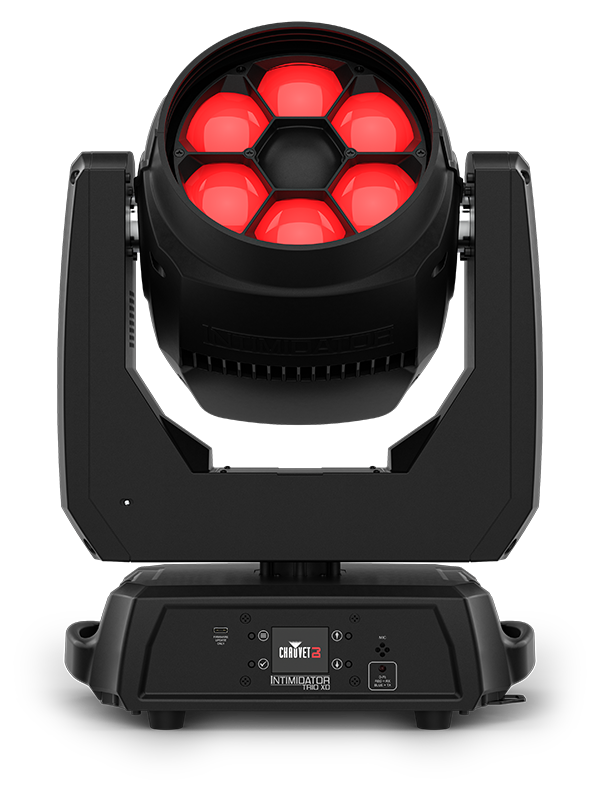

Intimidator Trio XD
With its motorized zoom and continuously rotating multi-lens honeycomb optics, Intimidator Trio XD creates complex effects as easily as it shifts seamlessly from narrow beams to wide washes. This innovative LED-powered moving head brings all the advantages of a carbon fiber composite housing together with the convenience of a built-in D-Fi transceiver for wireless DMX or master/slave control. Auto programs with zone control generate eye-catching looks with no programming and Totem mode keeps all the excitement focused on the dance floor.
Highlights
Innovative, LED-powered moving head with beam, wash, and effect features
Built-in D-Fi transceiver for wireless DMX or master/slave communications
Carbon fiber composite housing material is exceptionally strong, resists corrosion, and reduces weight
Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
Onboard USB-C port allows for quick software updates
Seamlessly change from a narrow beam to a wide wash with the motorized zoom
Continuously rotating honeycomb delivers the excitement of an effect light
Generate complex looks easily with built-in, eye-catching auto programs with zone control
Built-in Totem mode allows beams to remain focused on the dance floor
Set, save, and recall 1 scene directly from the full-color LCD display
Specifications
- DMX Channels:16, 23, or 52
- DMX Connectors:3- and 5-pin XLR
- Pan and Tilt:540°/270°
- Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 270° tilt
- Light Source:6 LEDs (quad-color RGBW) 270 W total, (9.5 A), 50,000 hours life expectancy.
- Strobe Rate:0 to 20 Hz
- Zoom Angle:3° to 22°
- Power Linking:4 units @ 120 V; 8 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:348 W, 2.9 A @ 120 V, 60 Hz
- Power and Current:343 W, 1.5 A @ 230 V, 50 Hz
- Weight:20.4 lb (9.3 kg)
- Size:12.6 x 8.7 x 17 in (320 x 220 x 431 mm)
- Approvals:CE, FCC, MET
- Illuminance Narrow: (3°) 124,299 lux @ 2m
- Illuminance Wide: (22°) 7,505 lux @ 2m
- Cable Length: 5 ft (1.5 m)
- Optional Controllers: RFC, RFC-XL
- Max. Output Current: 12 A (4 units @ 120 V) (8 units @ 230 V
- Fuse: F5A, 250 V
What's Included
- Intimidator Trio XD
- Intimidator Trio XD
- Power cord
- PowerCON to bare end (EU only)
- Hanging brackets
- Quick Reference Guide
