Discontinued Since 2015

Intimidator Wash Zoom 250 IRC

Intimidator Wash Zoom 250 IRC is a feature-packed moving head wash, fitted with 20-watt quad-color RGBW LEDs and manual zoom for short-throw or long-throw applications. With simple navigation and full text readout on the high-contrast, full-color LCD display, you can easily activate built-in, automated and sound-activated programs. The fixture has multiple control options, using DMX or Master/Slave mode or the optional IRC-6 for wireless control and triggering.

Highlights

  • Feature-packed compact moving head wash fitted with 20-W quad-color RGBW LEDs

  • Convenient, wireless non-DMX control using the optional IRC-6 remote

  • Manual zoom for short-throw or long-throw applications

  • Simple navigation and a full text readout with the full-color LCD screen

  • Save time running cables by power linking multiple units

  • Generate a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs

  • Fits best in the CHS-50 VIP Gear Bag

Specifications

  • DMX Channels: 7 or 14

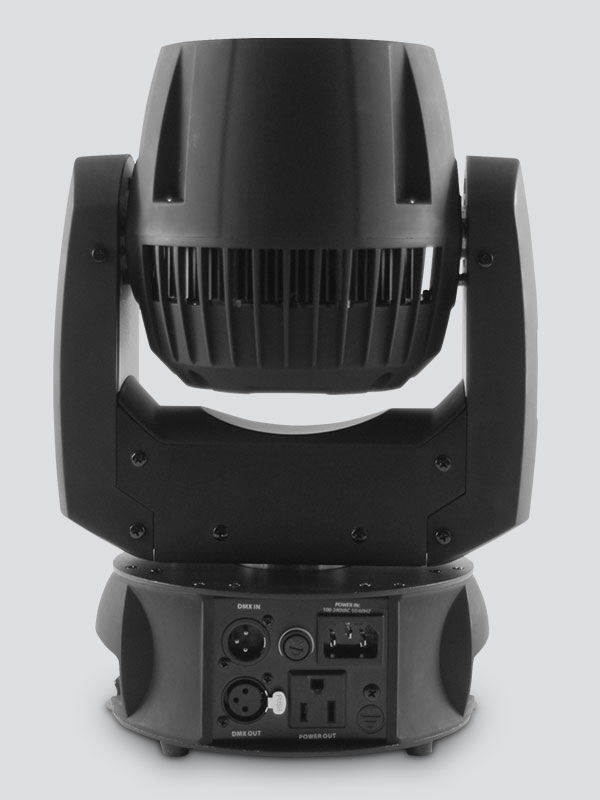

  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Light Source: 7 LEDs (quad-color RGBW) 20 W (3.7 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • PWM Frequency: 977 Hz
  • Illuminance: (14°): 14,520 lux @ 2 m
    (58°): 2,348 lux @ 2 m
  • Power Linking: 5 units @ 120 V; 9 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 193 W, 1.5 A @ 120 V, 60 Hz
    173 W, 0.8 A @ 230 V, 50 Hz
  • Zoom Angle: 14° to 58°
  • Weight: 12.2 lb (5.6 kg)
  • Size: 7.1 x 9.4 x 13 in (180 x 240 x 330 mm)
  • Approvals: CE

What's Included

  • Intimidator Wash Zoom 250 IRC
