JAM Pack Gold

JAM Pack Gold is a winning combination of four party always-popular effects that are ready to use right out of the box. Included in the JAM Pack Gold are derby beam, laser, fog machine, and a UV wash/strobe combo light. These units can be controlled in auto and sound mound. A wireless IRC-6 remote is also included.

Highlights

  • Perfect combination of multiple effect lights in one convenient package

  • Pack includes a derby, laser, fog machine, and a UV wash strobe combo light

  • Ready to use right out of the box; just add music

  • Derby effect light creates dynamic, multi-colored looks

  • Compact laser fixture generates sharp aerial effects

  • 2-in-1 fixture pairs a UV wash and a white strobe in one amazing effect

  • Easy wireless control with the included IRC-6 remote

  • Trigger Auto and Sound modes from the IRC-6 remote

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • Light Source: (derby): 3 LEDs (1 red, 1 green, 1 blue) 6 W (1.76 A), 50,000 hours life expectancy
    (UV strobe): 9 LEDs (5 UV/4 white) UV 1.05 W/white 0.60 W (UV 0.31 A/white 0.19 A), 50,000 hours life expectancy
    (laser): 650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
  • Strobe Rate: 0 to 16 Hz
  • Heat-Up Time: (fogger): 2.5 min
  • Input Voltage: (fogger): 120 VAC, 60 Hz
    (derby, UV strobe, and laser): 12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz)
  • Power and Current: (derby): 10 W, 0.150 A @ 120 V, 60 Hz
    (UV strobe): 12 W, 0.18 A @ 120 V, 60 Hz
    (laser): 4 W, 0.068 A @ 120 V, 60 Hz
    (fogger): 471 W, 3.9 A @ 120 V, 60 Hz
  • Weight: (derby): 2.4 lb (1.1 kg)
    (UV strobe): 0.6 lb (0.3 kg)
    (laser): 0.6 lb (0.3 kg)
    (fogger): 4 lb (1.8 kg)
  • Size: (derby): 6.6 x 7 x 8 in (167 x 177 x 203 mm)
    (UV strobe): 21.2 x 1.6 x 2.2 in (537 x 40 x 55 mm)
    (laser): 4 x 4.8 x 3.7 in (101 x 120 x 94 mm)
    (fogger): 8.5 x 7.1 x 4.9 in (215 x 180 x 124 mm)
  • Approvals: CE, FDA
  • Tank Capacity: (fogger): 0.2 gal (0.6 l)
  • Output: (fogger): 1,500 cfm
  • Fluid Consumption (fogger): 7.5 ml/min
  • Compatible Fluids: FJU, HDF, FJQ
  • Classified per EN/IEC 60825-1:2007
  • Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

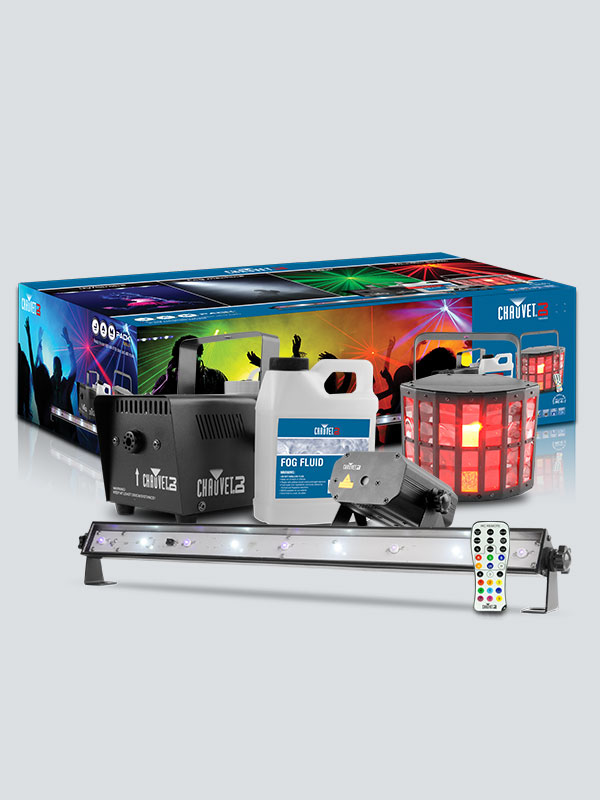

What's Included

  • JAM Pack Gold
  • Derby Effect Light
  • Laser
  • UV Strobe Combination Light
  • Hurricane 700 Fog Machine
  • 3pcs External Power Supplies
