Discontinued Since 2023

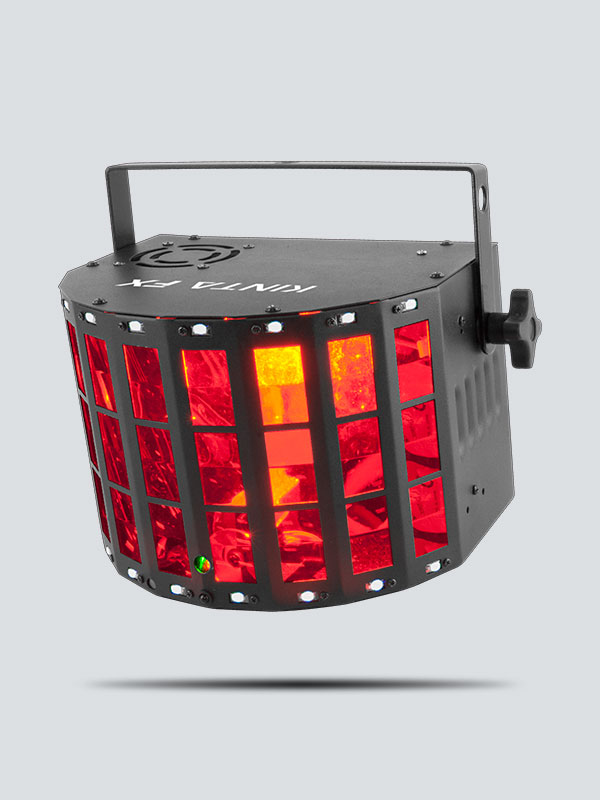

Kinta FX

Next Gen Product Available

You might also like:

Kinta FX ILS

Kinta FX combines an LED derby effect, laser and SMD strobe in one compact fixture. These effects can be coordinated to create a variety of exciting looks that feature multicolored derby beams, dynamic strobes and chases plus hundreds of sharp red and green laser beams. Control this versatile fixture easily via DMX, master/slave, optional IRC-6 remote or its digital display. Multiple units can be power linked to save time running cables and extension cords. Fits best in the CHS-30 VIP Gear Bag.

Highlights

  • Compact multi-effect with a Kinta, Laser and SMD Strobe

  • LED Kinta effect projects countless razor sharp multicolor beams

  • SMD strobes produce eye-catching strobe effects and chases

  • A red and green laser that casts hundreds of beams

  • Master/Slave with other Mini Kinta FXs for a coordinated show

  • Easily control the unit from DMX, Master/Slave, IRC-6 or the digital display

  • Save time running cables and extension cords by power linking multiple units

Specifications

  • DMX Channels:2 or 9
  • DMX Connectors:3-pin XLR
  • Light Source:(Kinta): 4 LEDs ( 1 Red, 1 Green, 1 Blue, 1 White) 7.5 W (2.4 A), 50,000 hours life expectancy
    (Strobe): 16 SMD LEDs (white) 5 W (1.6 A) 50,000 hours life expectancy
    (Laser): 650 nm/100 mW (Red) laser diode, 520 nm/30 mW (Green) laser diode
  • Strobe Rate:0 to 20 Hz
  • Coverage Angle:118°
  • Power Linking:17 units @ 120 V; 33 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:25 W, 0.5 A @ 120 V, 60 Hz
    24 W, 0.2 A @ 230 V, 50 Hz
  • Weight:3.8 lb (1.7 kg)
  • Size:7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
  • Approvals:CE, FDA, RoHS, UKCA
  • Optional Controllers: IRC-6
  • Classified per EN/IEC 60825-1:2014
  • Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019

What's Included

  • Kinta FX
  • Power cord
  • Warranty card
  • User Manual
