Discontinued Since 2019

LED Pinspot 3

Next Gen Product Available

You might also like:

LED Pinspot 2

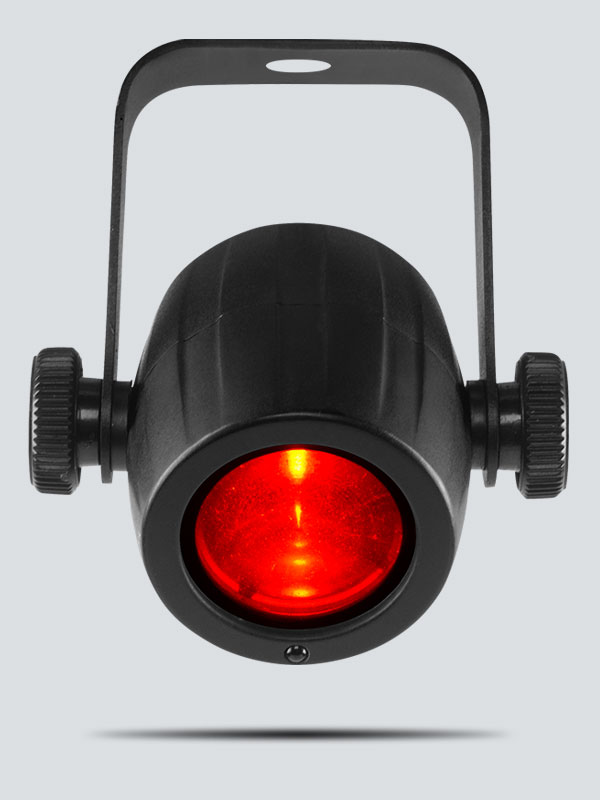

LED Pinspot 3 is a palm-sized pinspot that can be turned on/off and dimmed from a distance via the optional IRC-6 remote. A pack of 5 gels is included to let you easily change colors.

Highlights

  • Palm sized pinspot for a variety of applications

  • Wireless on/off and dimming operation is available with the optional IRC-6 remote

  • Change the color with the included 5-pack of gels

Specifications

  • Light Source:1 LED (cool white) (5 W) 1.6 A, 50,000 hours life expectancy
  • PWM Frequency:7800 Hz
  • Beam Angle:
  • Illuminance:3,558 lux @ 2 m
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:8 W, 0.1 A @ 120 V, 60 Hz
    8 W, 0.08 A @ 230 V, 50 Hz
  • Weight:1 lb (0.5 kg)
  • Size:4.6 x 4.1 x 2.7 in (116.5 x 104 x 68 mm)
  • Approvals:CE
  • Cable Length: 4.6 ft (1.4 m)
  • Optional Controllers: IRC - 6

What's Included

  • LED Pinspot 3

Downloads
