Discontinued Since 2016

Mini 4BAR 2.0

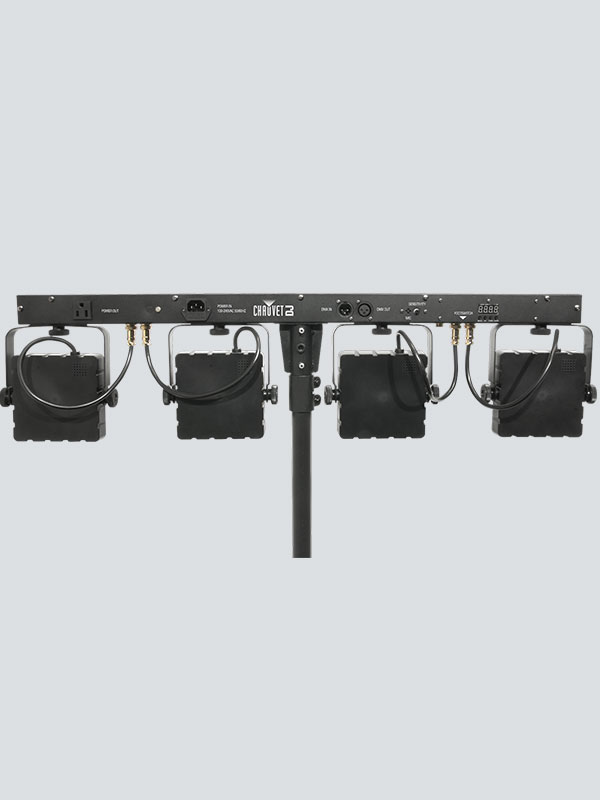

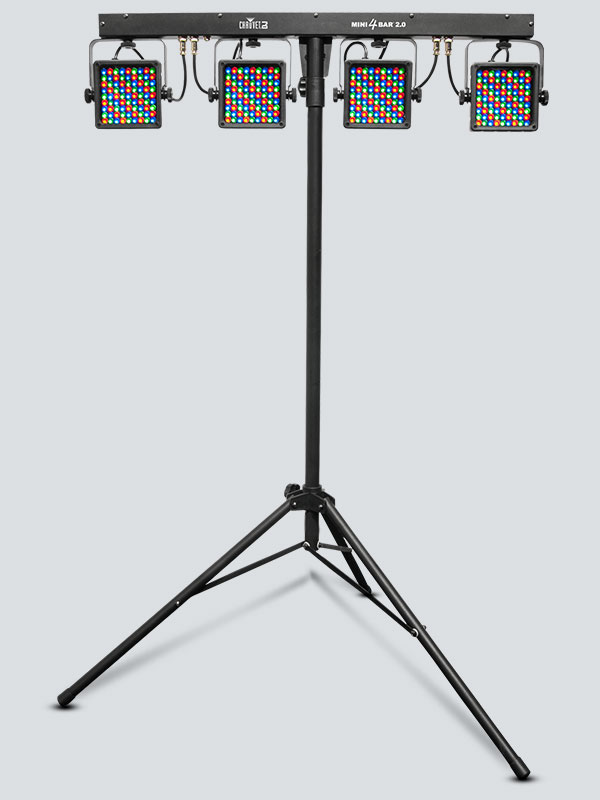

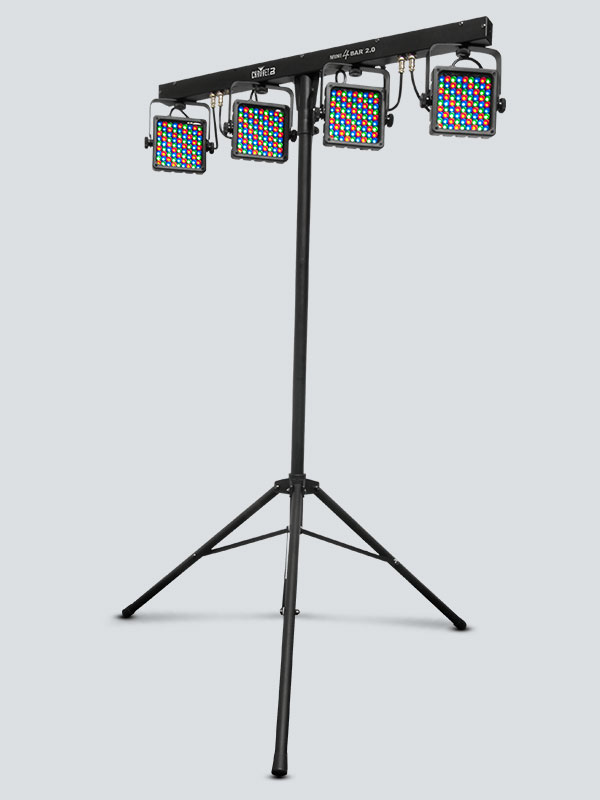

Mini 4BAR 2.0 is a ready-to-go, mobile wash system with four restyled, square LED wash lights, sporting 81 LEDs per pod, mounted on a bar with tripod, floor stands, footswitch controller and transport bags. In just five minutes this fixture can be set up and in use, plus each light can be positioned independently for maximum coverage. This versatility allows for the lights to crisscross or be aimed at different elevations for a multitude of effects.

Highlights

  • Enhanced, brighter version of the popular Mini 4BAR with redesigned square pods

  • Increases flexibility by including: DMX control, master/slave capability, power linking and dual floor stands

  • Achieve total room or stage coverage with 4 individually adjustable heads

  • Set up almost anywhere with 1 inch deep, low-profile lights

  • Easily set up and tear down in seconds with the included tripod, carry bags and footswitch

  • Create large, coordinated light shows with other 4BAR fixtures in master/slave mode

  • Sound-activated programs dance to the beat of the music

Specifications

  • DMX Channels: 3 or 15
  • DMX Connectors: 3-pin XLR
  • Light Source: 324 LEDs (108 red, 108 green, 108 blue) 0.25 W (20 mA), 100,000 hours life expectancy
  • Beam Angle: 16°
  • Illuminance: 558 lux @ 2 m (per pod)
  • Power Linking: 18 units @ 120 V; 32 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 52 W, 0.4 A @ 120 V, 60 Hz
    57 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 8.2 lb (3.7 kg)
  • Size: 1.8 x 8.5 x 35 in (46 x 215 x 889 mm)
  • Approvals: CE
  • Stand Height: 4.5 to 7.1 ft (1.4 to 2.2) m

What's Included

  • Mini 4BAR 2.0
  • Power cord
  • Carrying bag
  • Tripod & Tripod carrying bag
  • Footswitch
  • Hanging bracket with mounting hardware
  • Warranty card
