Mini Kinta ILS

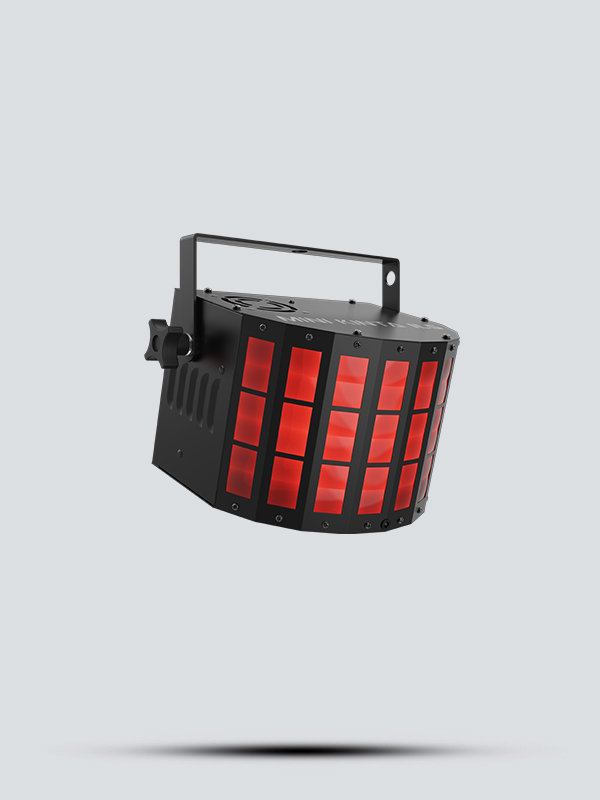

Small but mighty, Mini Kinta ILS packs a punch with countless beams of multicolor light bright, colorful beams using high-power red, green, blue, and white LEDs and fills the room with eye-catching effects as light shines through 48 lenses. Mini Kinta ILS also has ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Trigger built-in automated and sound-activated programs in Master/Slave or DMX mode or take advantage of simple wireless, non-DMX control from an optional IRC6 remote. Mini Kinta ILS lets you match the mood at any event by controlling the motor speed in DMX mode.

VIP Rewards Value: 159 Points



Highlights

  • Compact LED effect light projects countless beams of multicolor light

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

  • Simple wireless, non-DMX control from an optional IRC6 remote

  • Projects bright, colorful beams using high-power red, green, blue, and white LEDs

  • Trigger built-in automated and sound-activated programs in Master/Slave or DMX mode

  • Fills the room with eye-catching effects as light shines through 48 lenses

  • Match the mood at any event by controlling the motor speed in DMX mode

  • Save time running cables and extension cords by power linking multiple units

Specifications

  • DMX Channels: 4 or 8
  • DMX Connectors: 3-pin XLR
  • Light Source: 4 LEDs (1 red, 1 green, 1 blue, 1 white) 3 W, (980 mA), 50,000 hours life expectancy
  • Coverage Angle: 135°
  • Power Linking: 33 units @ 120 V; 54 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    19 W, 0.3 A @ 120 V, 60 Hz
    18 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 3.6 lb (1.7 kg)
  • Size: 7.5 x 10.1 x 7.2 in (190 x 258 x 182 mm)
  • Approvals: CE, RoHS, UKCA
  • Optional Controllers: IRC6

What's Included

  • Mini Kinta ILS
  • Mini Kinta ILS
  • Power cord
  • Quick Reference Guide
