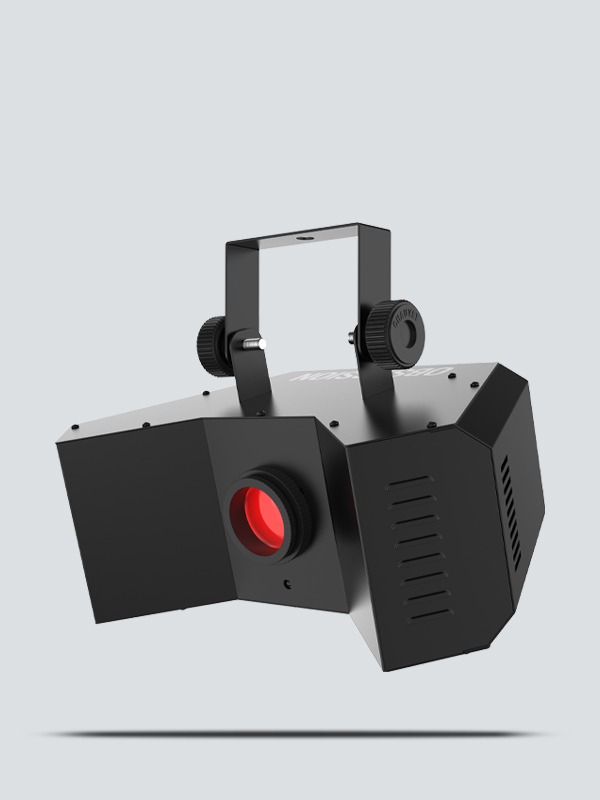

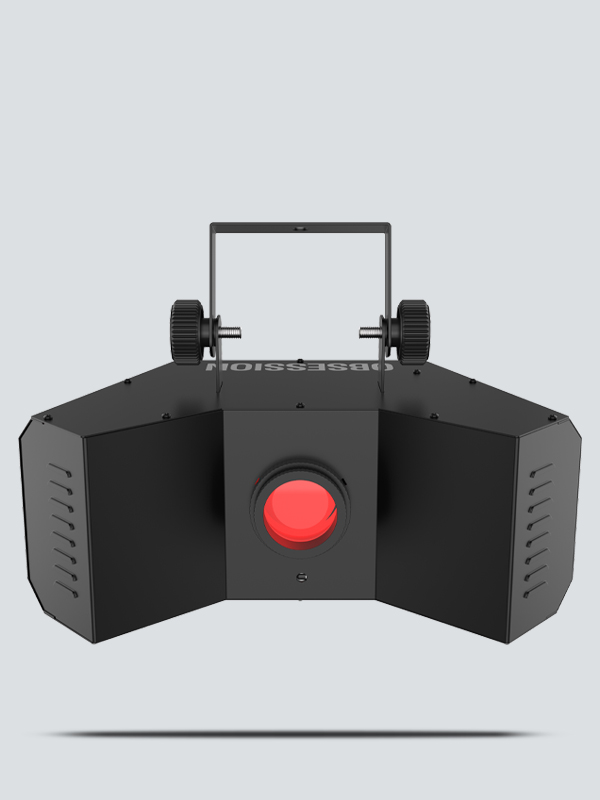

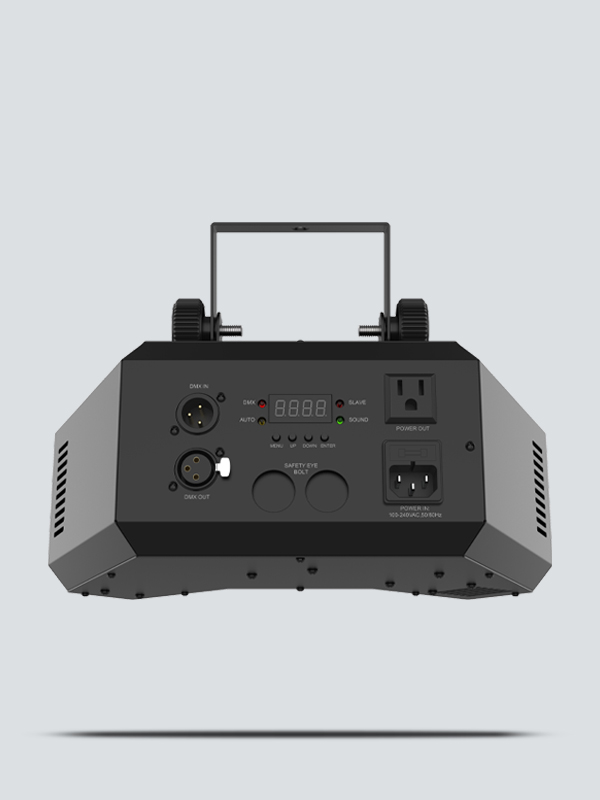

Obsession

Get obsessed with breathtaking mid-air effects from Obsession, the compact LED effect light that projects ever-changing, multicolored rotating gobos. Separate color and gobo wheels allow you to blanket the room with ever-changing patterns. Generate synchronized shows in Master/Slave mode with built-in automated programs or use other control options like stand-alone, or DMX modes, or optional IRC-6 remote control. Power linking capabilities save time running cables. Obsession fits best in the CHS-40 VIP Gear Bag.

VIP Rewards Value: 240 Points



Highlights

  • Compact LED effect light projects multicolored rotating gobos

  • Create mid-air effects and blanket the room with ever-changing patterns

  • Separate color and gobo wheels allow for creative programming

  • Generate a synchronized show in Master/Slave mode with built-in automated programs

  • Compatible with IRC-6 for flexible control over all features

  • Save time running cables and extension cords by power linking multiple units

  • Multiple control options include stand-alone, DMX, IR or master/slave

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels: 7
  • DMX Connectors: 3-pin XLR
  • Colors: 13 + white, split colors, continuous scroll at variable speeds
  • Gobos: 14 (metal) + open, continuous scroll at variable speeds
  • Light Source: 1 LED (cool white) 60 W, (2.25 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • PWM Frequency: 4 KHz
  • Coverage Angle: 44°
  • Power Linking: 8 units @ 120 V; 14 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 70 W, 1 A @ 120 V, 60 Hz
    70 W, 0.5 A @ 230 V, 50 Hz
  • Weight: 5.6 lb (2.6 kg)
  • Size: 12.6 x 8.26 x 8.26 in (320 x 210 x 210 mm)
  • Approvals: CE
  • Optional Controllers: IRC-6

What's Included

  • Obsession
  • Obsession
  • Power cord
  • Quick Reference Guide
