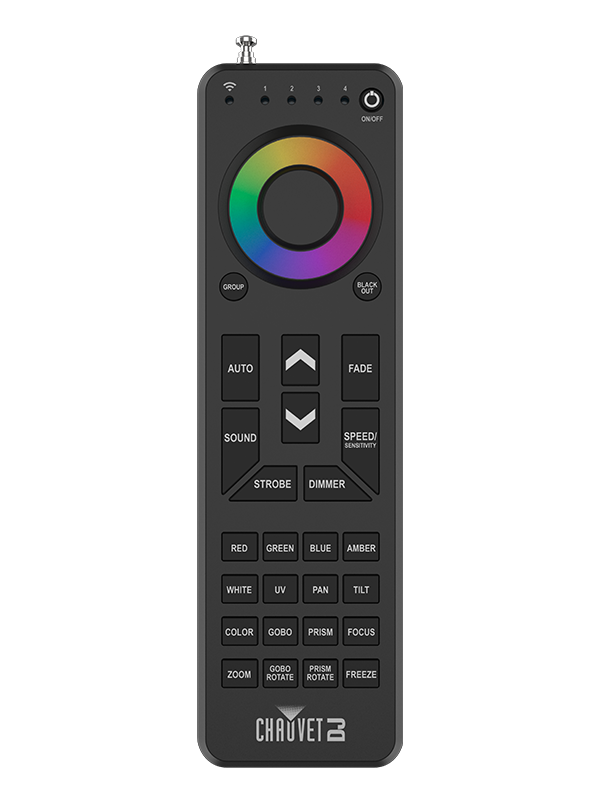

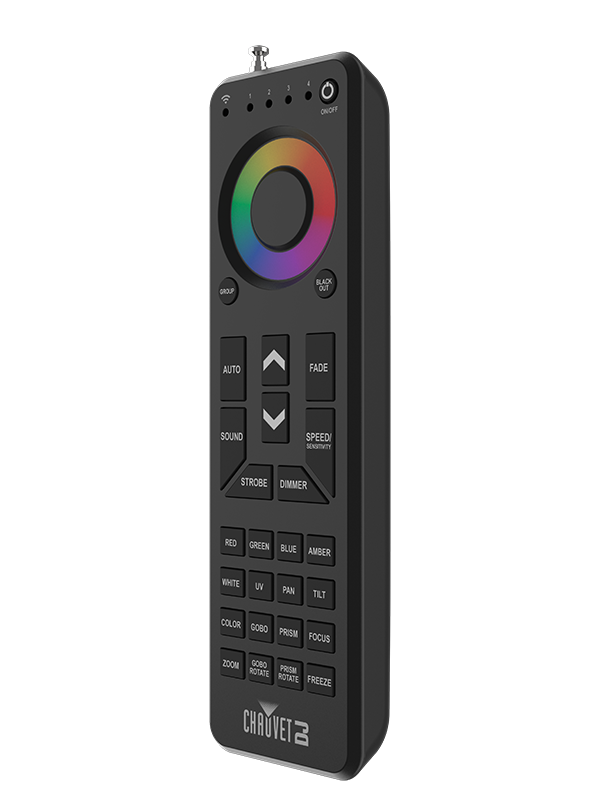

New

RFC-XL

Unprecedented lighting control power is in the palm of your hand with RFC-XL, a handheld remote control for compatible RF-enabled lighting fixtures. The RF signal is omnidirectional and doesn’t require line-of-sight operation. RFC-XL works with different fixture types such as washes and moving heads and controls up to 4 different fixture groups simultaneously. Rubberized and backlit buttons ensure they are accessible in dark environments and a convenient color picking wheel lets you dial in just the right colors with the swipe of a finger. The telescopic antenna ensures the signal reaches its destination.

Highlights

  • Handheld remote control for compatible RF-enabled lighting fixtures

  • Rubberized and backlit buttons ensure they are accessible in dark environments

  • Controls up to 4 different fixture groups simultaneously

  • Convenient color-picking wheel for fast and easy color selection

  • Works with different fixture types such as washes and moving heads

  • RF signal is omnidirectional and doesn’t require line-of-sight

  • Telescopic antenna ensures the signal reaches its destination

Specifications

  • Operating Frequency:433 MHz
  • Input Voltage:12 VDC, 55 mA
  • Weight:12.6 oz (357 g)
  • Size:6.3 x 1.9 x 0.7 in (160 x 47 x 17 mm)
  • Approvals:CE/RED, UKCA, FCC, RoHS
  • RF output: +22 dBm
  • Unobstructed Transmission Distance: 100 ft (30 m)

What's Included

  • RFC-XL
  • RFC-XL
  • Alkaline battery A23 (12V)
